FRONT FORK
KLX400B1 KLX400R 2003 USA CANADA

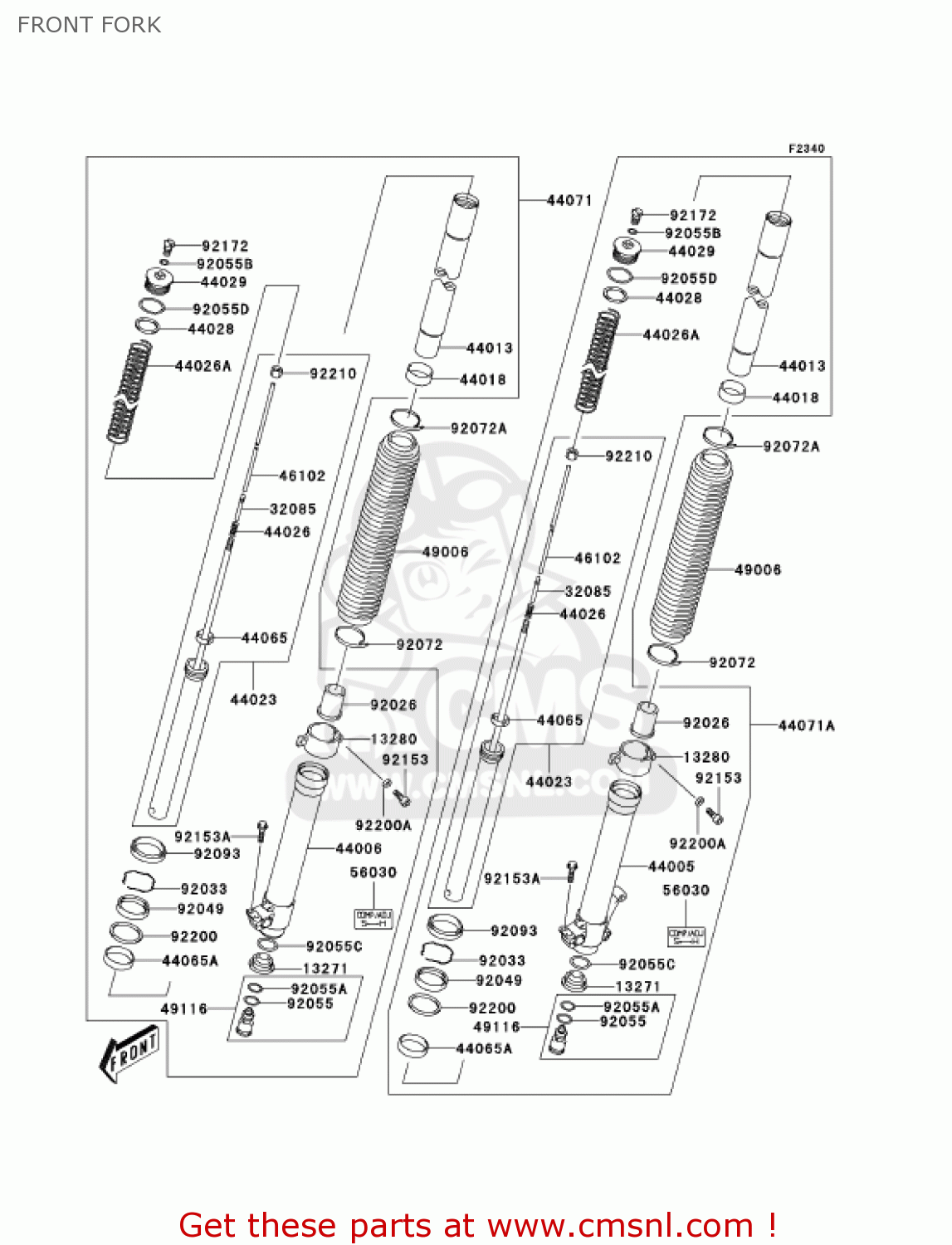

Front fork diagram KLX400B1 KLX400R 2003 USA CANADA
FRONT FORK KLX400B1 KLX400R 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13271
13271S059
ref: 13271
PLATE
€ 33.00
13280
13280S030
ref: 13280
HOLDER,BOOT
€ 19.50
32085
32085S015
ref: 32085
STOPPER,NEEDLE
€ 10.00
44005
44005S009
ref: 44005
PIPE-LEFT FORK OUTER
€ 409.00
44006
44006S009
ref: 44006
PIPE-RIGHT FORK OUTER
€ 409.00
44013
44013S006
ref: 44013
PIPE-FORK INNER
€ 331.50
44018
44018S004
ref: 44018
PISTON-FORK
€ 19.50
44023
44023S003
ref: 44023
CYLINDER-SET-FORK
€ 276.00
44026
44026S009
ref: 44026
SPRING-FRONT FORK
€ 3.50
44026
44026S011
ref: 44026
SPRING-FRONT FORK
€ 56.50
44028
44028S003
ref: 44028
GUIDE-FORK SPRING
€ 5.50
44029
44029S002
ref: 44029
SEAT-FORK SPRING
€ 68.50
44065
44065S002
ref: 44065
BUSHING-FRONT FORK
€ 11.50
44065
44065S003
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44071
44071S009
ref: 44071
DAMPER-ASSY,RH
€ 916.50
44071
44071S010
ref: 44071
DAMPER-ASSY,LH
€ 916.50
46102
46102S004
ref: 46102
ROD
€ 33.50
49006
49006S032503
ref: 49006
BOOT,BLACK
€ 50.50
49116
49116S004
ref: 49116
VALVE-ASSY
€ 121.00
56030
56030S012
ref: 56030
LABEL
€ 3.00
92026
92026S127
ref: 92026
SPACER
€ 36.00
92033
92033S051
ref: 92033
RING-SNAP
€ 4.50
92049
92049S058
ref: 92049
SEAL-OIL
€ 19.50
92055
92055S075
ref: 92055
RING-O
€ 3.00
92055
92055S076
ref: 92055
RING-O
€ 3.00
92055
92055S077
ref: 92055
RING-O
€ 2.50
92055
92055S078
ref: 92055
RING-O
€ 3.50
92055
92055S079
ref: 92055
RING-O
€ 3.50
92072
92072S008
ref: 92072
BAND,BOOT
€ 9.00
92072
92072S010
ref: 92072
BAND,BOOT
€ 10.00
92093
92093S044
ref: 92093
SEAL
€ 20.00
92153
92153S350
ref: 92153
BOLT
€ 2.00
92153
92153S351
ref: 92153
BOLT,8X35
€ 3.00
92172
92172S198
ref: 92172
SCREW,PLUG
€ 7.00
92200
92200S196
ref: 92200
WASHER,SEAL
€ 5.50
92200
92200S197
ref: 92200
WASHER
€ 1.00
92210
92210S124
ref: 92210
NUT
€ 8.00
