CRANKCASE
KLX400B1 KLX400R 2003 USA CANADA

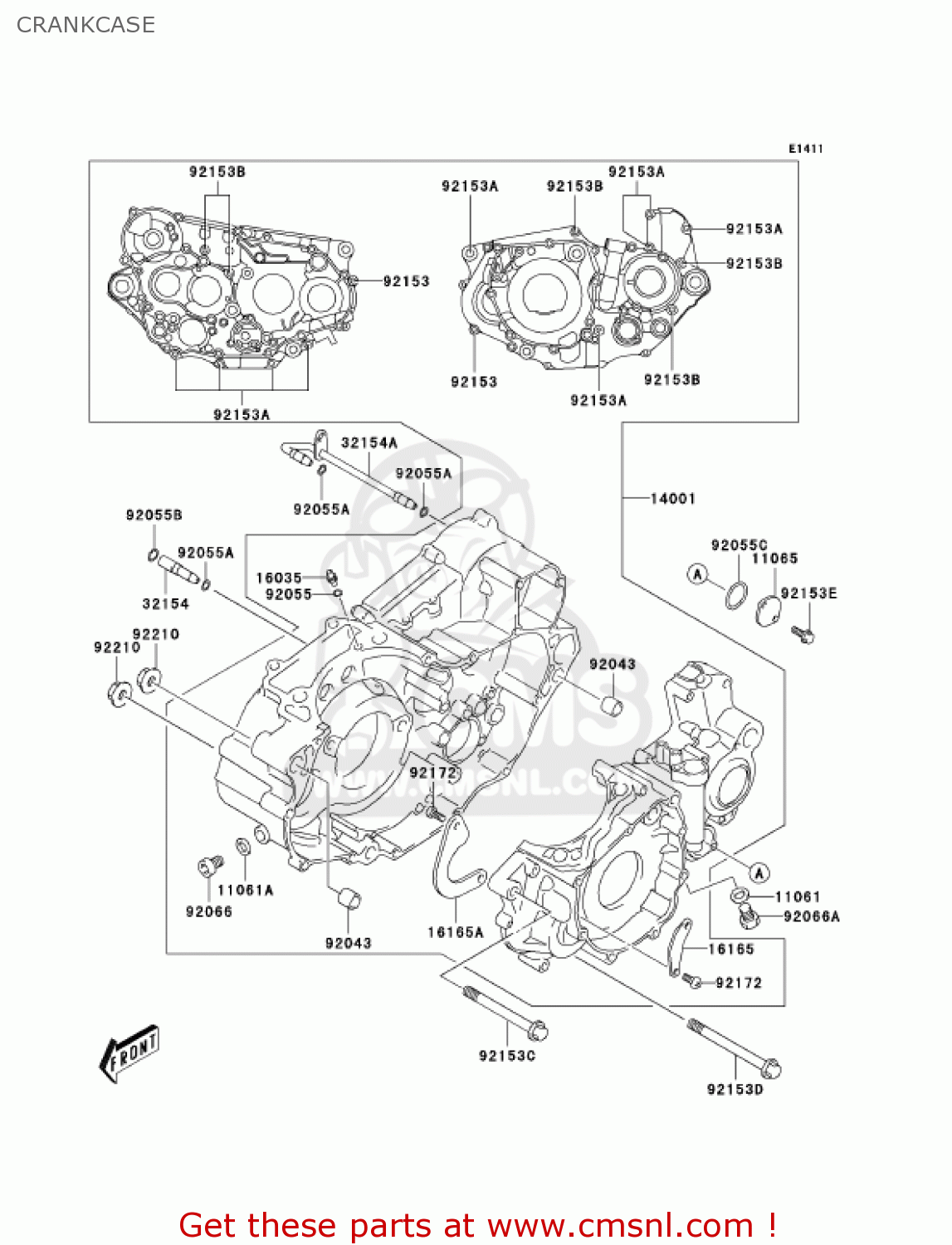

Crankcase diagram KLX400B1 KLX400R 2003 USA CANADA
CRANKCASE KLX400B1 KLX400R 2003 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
11061S005
ref: 11061
GASKET,12.1X16.2X3.7 (NAS)
€ 1.50
11061A
11061S021
ref: 11061A
GASKET,10X14X3.6 (NAS)
€ 2.50
11065
11065S053
ref: 11065
CAP,NEUTRAL
€ 2.00
14001
14001S008
ref: 14001
SET-CRANKCASE
€ 426.00
16035
16035S004
ref: 16035
JET-AIR
€ 8.00
16165
16165S007
ref: 16165
SEPARATOR,CRANKCASE O
€ 2.50
16165A
16165S008
ref: 16165A
SEPARATOR,CRANKCASE O
€ 4.00
32154
32154S005
ref: 32154
PIPE
€ 14.50
32154A
32154S007
ref: 32154A
PIPE,OIL
€ 34.50
92043
92043S003
ref: 92043
PIN
€ 2.50
92055
92055S002
ref: 92055
RING-O,ID:4.0
€ 3.50
92055A
92055S003
ref: 92055A
RING-O,ID:4.8
€ 3.50
92055B
92055S053
ref: 92055B
RING-O,6.8X1.9
€ 2.50
92055C
92055S055
ref: 92055C
RING-O,26.2X2.4
€ 3.50
92066
92066S009
ref: 92066
PLUG
€ 3.50
92066A
92066S032
ref: 92066A
PLUG,OIL DRAIN
€ 3.50
92153
92153S006
ref: 92153
BOLT
€ 1.50
92153A
92153S128
ref: 92153A
BOLT
€ 1.50
92153B
92153S247
ref: 92153B
BOLT
€ 2.00
92153C
92153S269
ref: 92153C
BOLT,10X100
€ 7.00
92153D
92153S334
ref: 92153D
BOLT,10X115
€ 4.00
92153E
92153S343
ref: 92153E
BOLT
€ 1.50
92172
92172S033
ref: 92172
SCREW,6X12
€ 3.00
92210
92210S015
ref: 92210
NUT
€ 4.50
