MUFFLER(S)

KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

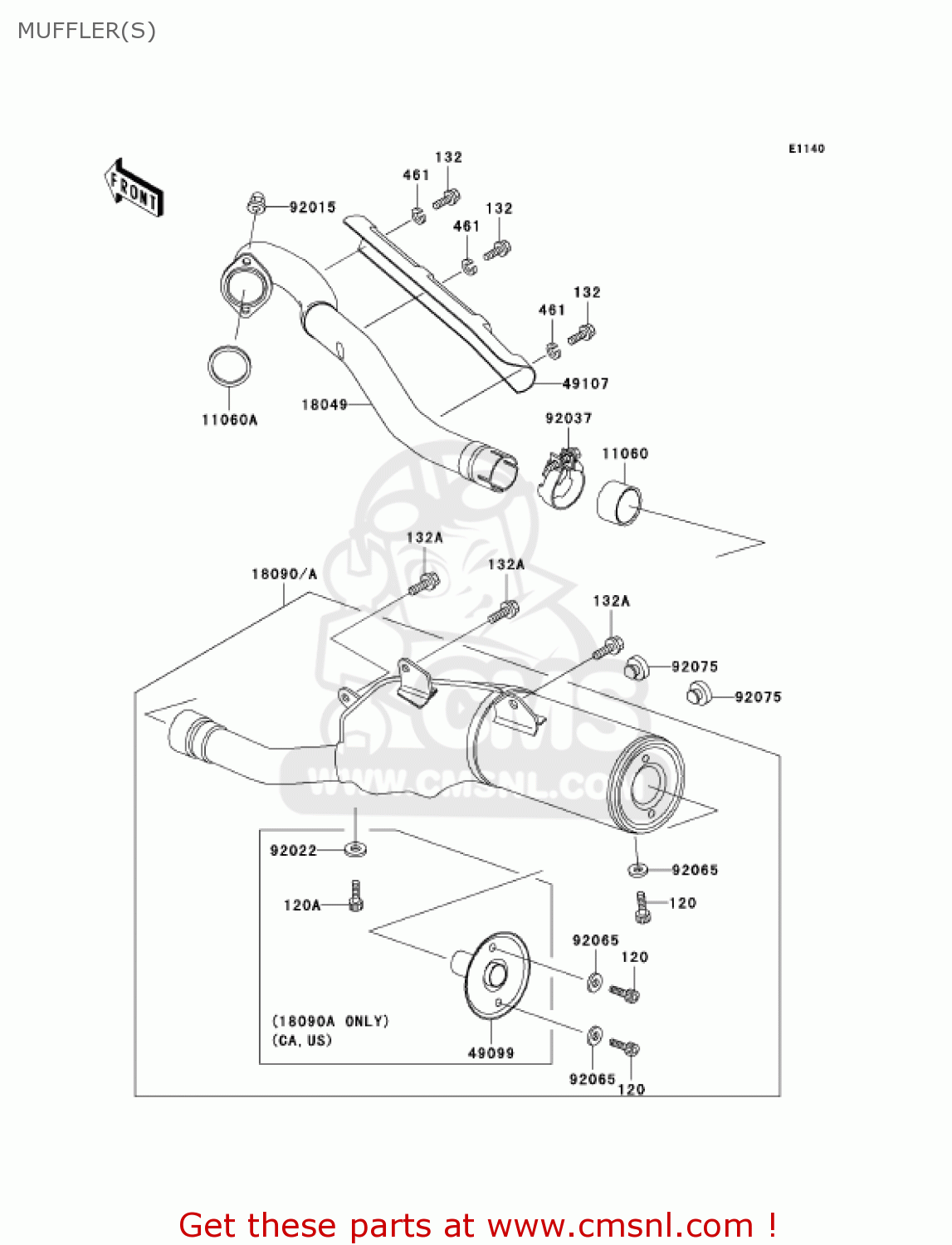

Muffler(s) diagram KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

MUFFLER(S) KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
MUFFLER(S) KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
MUFFLER(S) KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0612
ref: 120
BOLT,SOCKET,6X12
120P0612
€ 1.00
120A
120P0814
ref: 120A
[CA,US
BOLT-SOCKET,8X14
120P0814
€ 3.00
132
132Y0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132Y0816
ref: 132A
BOLT-FLANGED-SMALL
132Y0816
€ 2.50
461
461S0600
ref: 461
WASHER-SPRING,6MM
461S0600
€ 0.50
11060
110601068
ref: 11060
GASKET,MANIFOLD EXHAU (NAS)
110601068
€ 20.50
11060A
110601203
ref: 11060A
GASKET,EXHAUST PIPE (NAS)
110601203
€ 8.50
18049
180491689
ref: 18049
PIPE-EXHAUST
€ 141.50
18090
180901569
ref: 18090
[CN]
BODY-COMP-MUFFLER
€ 448.00
18090A
180901570
ref: 18090A
[CA,US
BODY-COMP-MUFFLER
€ 389.50
49099
490991541
ref: 49099
[CA,US
BAFFLE-PIPE MUFFLER
490991541
€ 40.00
49107
491070008
ref: 49107
COVER-EXHAUST PIPE
€ 34.00
92015
920151402
ref: 92015
NUT,8MM
920151402
€ 3.00
92022
920221488
ref: 92022
[CA,US
WASHER,8.2X14X1
920221488
€ 3.00
92037
920371270
ref: 92037
CLAMP,MUFFLER,BLACK
920371270
€ 13.50
92065
92065096
ref: 92065
GASKET,FUEL COCK (NAS)
92065096
€ 3.00
92075
92075005
ref: 92075
DAMPER
92075005
€ 2.50
