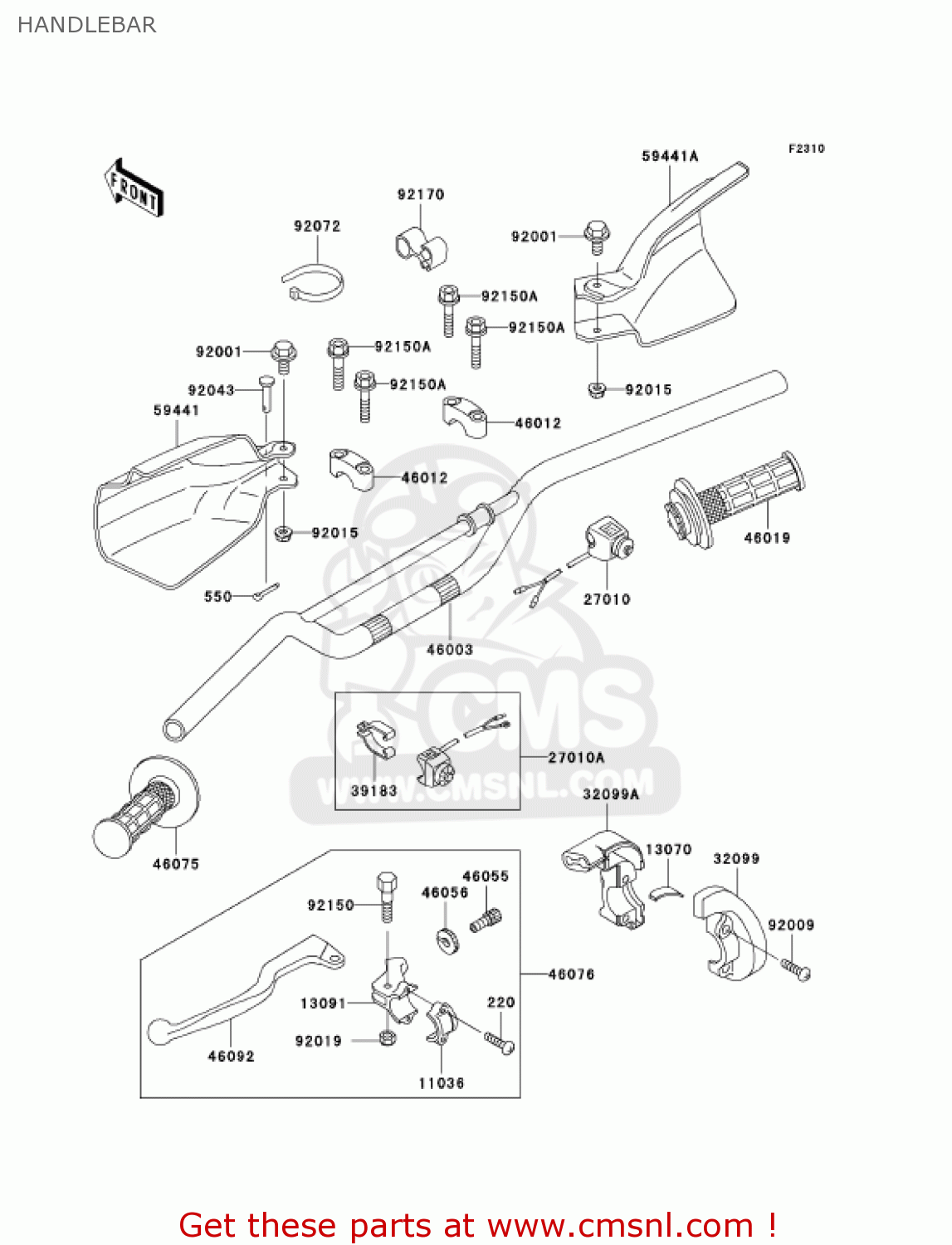

HANDLEBAR

ref

part #

description

quantity

220

220F0514
ref: 220

SCREW-PAN-CROSS

€ 1.00

550

550D1210
ref: 550

PIN-COTTER,1.2X10

€ 1.50

11036

110361297
ref: 11036

BRACKET-A,LEVER HOLDE

€ 12.00

13070

130701270
ref: 13070

GUIDE,THROTTLE CABLE

€ 2.50

13091

130911131
ref: 13091

HOLDER,CLUTCH LEVER

€ 31.50

27010

270101279
ref: 27010

SWITCH,LIGHTING

€ 52.50

27010A

270101350
ref: 27010A

SWITCH,ENGINE STOP

€ 38.00

32099

320991143
ref: 32099

CASE,THROTTLE,UPP

€ 19.50

32099A

320991144
ref: 32099A

CASE,THROTTLE,LWR

€ 19.50

39183

391831059
ref: 39183

BAND-ASSY,ENGINE STOP

€ 9.00

46003

460031382CE
ref: 46003

HANDLE,SILVER NO.25

€ 72.50

46012

460121191
ref: 46012

HOLDER-HANDLE,UPP

€ 21.00

46019

460191078
ref: 46019

GRIP-ASSY,THROTTLE

€ 28.00

46055

46055009
ref: 46055

SCREW,CABLE ASJUST

€ 13.00

46056

46056006
ref: 46056

NUT,CABLE ADJUST NUT

€ 6.00

46075

460751107
ref: 46075

GRIP,LH

€ 14.00

46076

460761163
ref: 46076

LEVER-ASSY-GRIP,CLUTC

€ 51.00

46092

460921110
ref: 46092

LEVER-GRIP,CLUTCH

€ 13.50

59441

5944110946W
ref: 59441

COVER-HANDLE,LH,L.GRE

€ 18.00

59441A

5944111086W
ref: 59441A

COVER-HANDLE,RH,L.GRE

€ 18.00

92001

920011034
ref: 92001

BOLT,HEX HEAD,6X10

€ 7.00

92009

920091699
ref: 92009

SCREW,5X16

€ 2.00

92015

920151603
ref: 92015

NUT

€ 3.00

92019

92019008
ref: 92019

NUT-LOCK,6MM

€ 3.00

92043

920431434
ref: 92043

PIN,5X27.5

€ 5.00

92072

920721293
ref: 92072

BAND

€ 6.50

92150

921501291
ref: 92150

BOLT

€ 14.50

92150A

921501696
ref: 92150A

BOLT,FLANGED,8X35

€ 3.50

92170

921701255
ref: 92170

CLAMP,BRAKE HOSE

€ 4.50
