GEAR CHANGE MECHANISM

KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

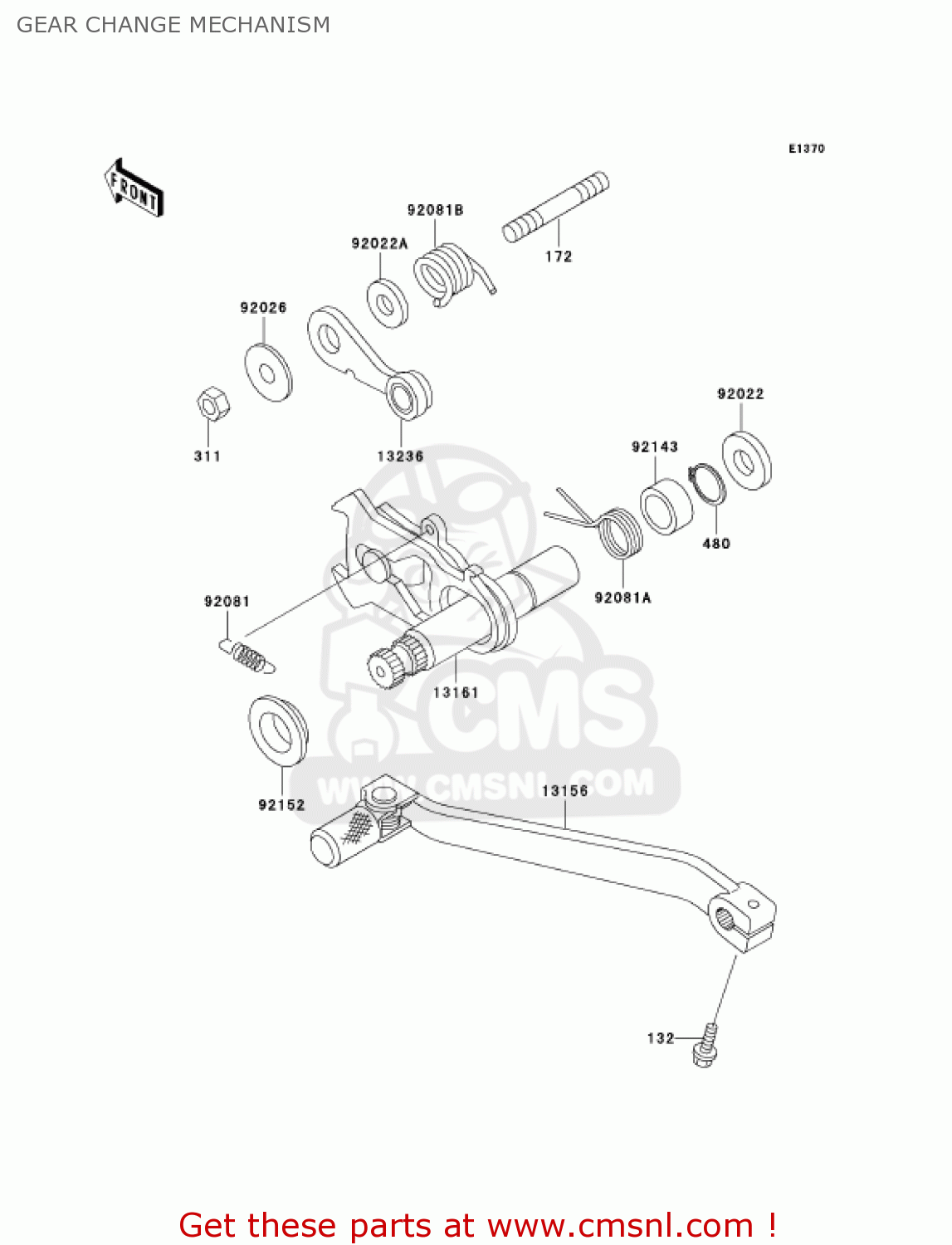

Gear change mechanism diagram KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132Y0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

172

172G0612
ref: 172

BOLT-STUD,6X12

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13156

131561340
ref: 13156

LEVER-CHANGE,PEDAL

€ 57.50

13161

131611213
ref: 13161

LEVER-COMP-CHANGE SHA

€ 59.00

13236

132361209
ref: 13236

LEVER-COMP,NEUTRAL PO

€ 13.00

92022

920221496
ref: 92022

WASHER,13.3X20X1

€ 2.50

92022A

920221827
ref: 92022A

WASHER,6X12.8X1.2

€ 3.00

92026

920261217
ref: 92026

SPACER

€ 3.50

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

920811129
ref: 92081A

SPRING,TENTION

€ 6.50

92081B

920811993
ref: 92081B

SPRING,POSITION LEVER

€ 4.00

92143

921431148
ref: 92143

COLLAR

€ 3.00

92152

921521075
ref: 92152

COLLAR

€ 2.50
