FRONT FORK

KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

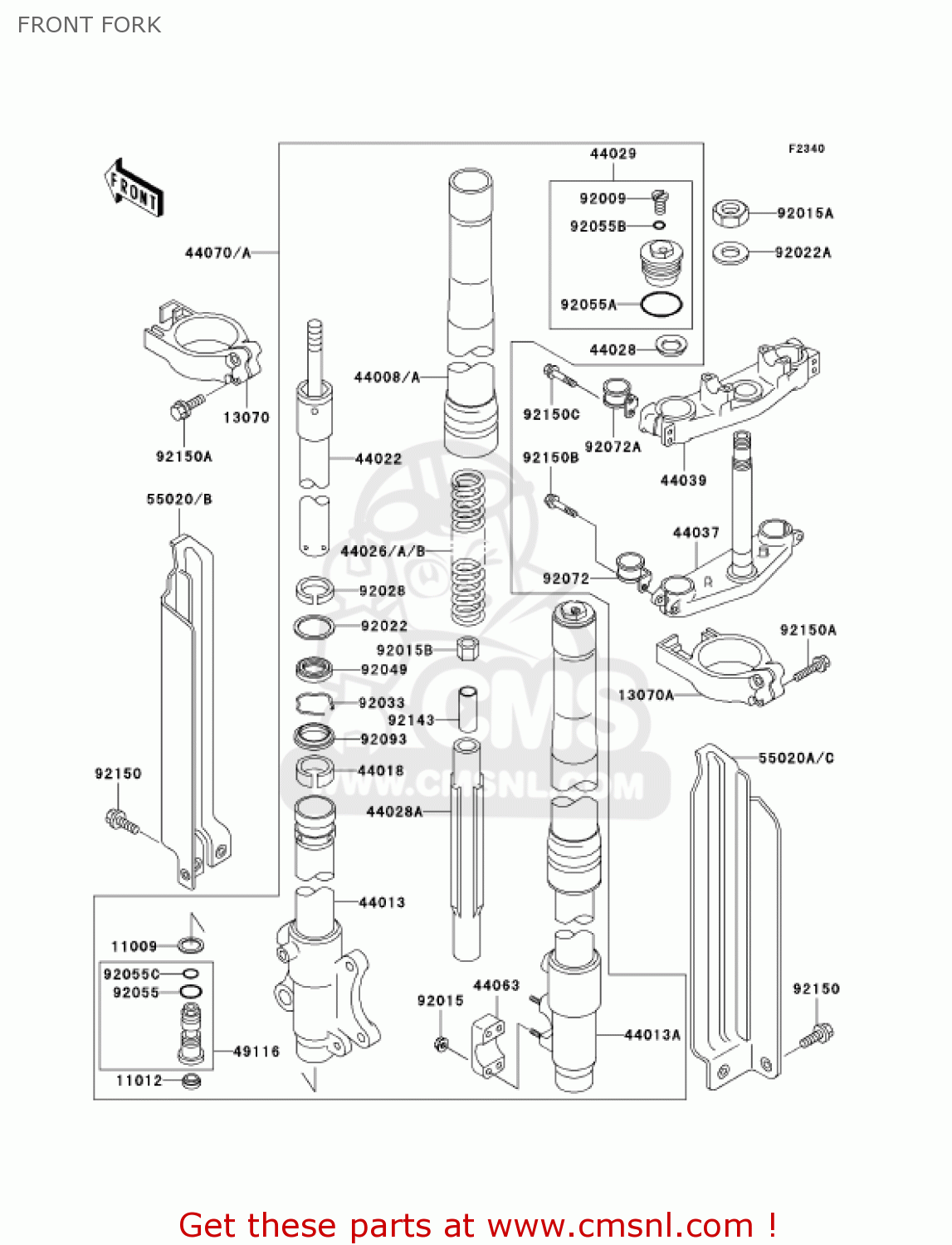

Front fork diagram KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

FRONT FORK KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
FRONT FORK KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
FRONT FORK KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091592
ref: 11009
GASKET,FORK CYLINDER (NAS)
110091592
€ 4.00
11012
110121381
ref: 11012
CAP,FORK CYLINDER
110121381
€ 3.50
13070
130701263RZ
ref: 13070
GUIDE,FORK,LH,WHITE
130701263RZ
€ 22.00
13070A
130701264RZ
ref: 13070A
GUIDE,FORK,RH,WHITE
130701264RZ
€ 22.00
44008
440081028JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 943.50
44013
440131387
ref: 44013
PIPE-FORK INNER,LH
440131387
€ 320.50
44013A
440131388
ref: 44013A
PIPE-FORK INNER,RH
€ 320.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
440181056
€ 19.00
44022
440221314
ref: 44022
FORK CYLINDER
€ 208.50
44026
440261551
ref: 44026
(OPTION)
SPRING-FRONT FORK,K=3
€ 47.50
44026A
440261552
ref: 44026A
(OPTION)
SPRING-FRONT FORK,L=0
€ 47.50
44026B
440261603
ref: 44026B
FRONT FORK SPRING,K=0
€ 54.50
44028
440281081
ref: 44028
GUIDE-FORK SPRING
440281081
€ 8.50
44028A
440281084
ref: 44028A
GUIDE-FORK SPRING
€ 10.00
44029
440291149
ref: 44029
SEAT-FORK SPRING
440291149
€ 87.00
44037
440371291
ref: 44037
HOLDER-FORK UNDER
€ 526.00
44039
440391240
ref: 44039
HOLDER-FORK UPPER
€ 243.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
440631056
€ 41.50
44070
440701565JS
ref: 44070
DAMPER-ASSY,FORK,BRON
€ 1,547.00
49116
491161145
ref: 49116
FORK VALVE ASSEMBLY
€ 103.00
55020
550200004RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 33.00
55020A
550200005RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 27.50
92009
920091568
ref: 92009
SCREW
920091568
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
920151653
€ 11.50
92015B
920151839
ref: 92015B
NUT
920151839
€ 13.50
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92022A
920221873
ref: 92022A
WASHER
920221873
€ 5.00
92028
920281581
ref: 92028
BUSHING
920281581
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920491373
ref: 92049
SEAL-OIL
920491373
€ 19.00
92055
920551156
ref: 92055
RING-O,REARSHOCK
920551156
€ 1.00
92055A
920551333
ref: 92055A
RING-O,FORK,AIR TUBE
920551333
€ 3.00
92055B
920551441
ref: 92055B
RING-O
€ 2.50
92055C
920551502
ref: 92055C
RING-O,FORK VALVE
920551502
€ 5.00
92072
920721267
ref: 92072
BAND
920721267
€ 14.50
92072A
920721268
ref: 92072A
BAND
920721268
€ 14.50
92093
920931342
ref: 92093
SEAL,FORK OUTER TUBE
920931342
€ 12.50
92143
921431643
ref: 92143
COLLAR,FORK
€ 13.00
92150
921501340
ref: 92150
BOLT,6X14
921501340
€ 3.00
92150A
921501434
ref: 92150A
BOLT,5X40
921501434
€ 3.00
92150B
921501446
ref: 92150B
BOLT,10X40
921501446
€ 9.00
92150C
921501516
ref: 92150C
BOLT, FLANGED 8X40
921501516
€ 9.50
