HEADLIGHT(S)

KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

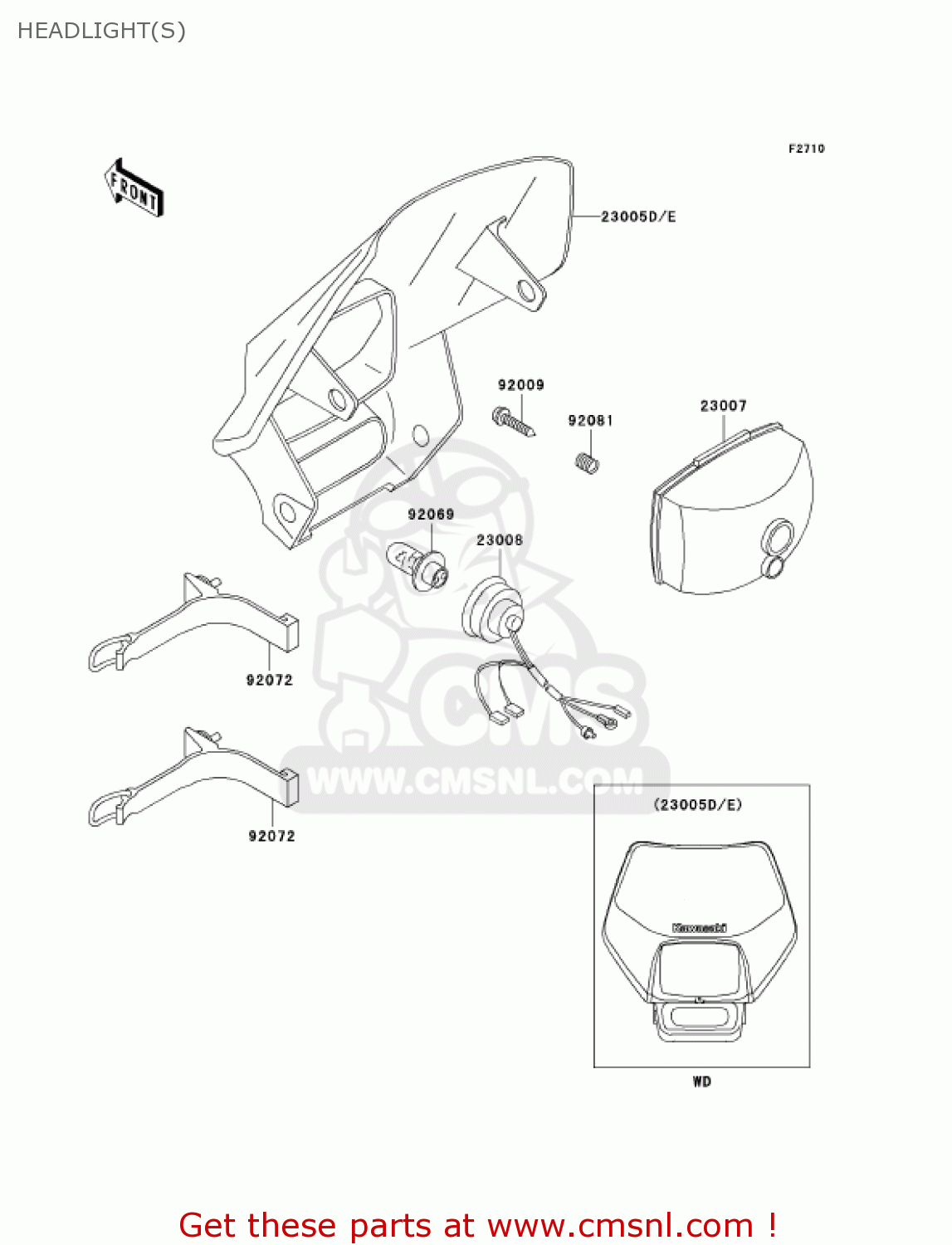

Headlight(s) diagram KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

HEADLIGHT(S) KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

HEADLIGHT(S) KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

23005E

2300550446W
ref: 23005E

BODY-COMP-HEAD LAMP,L

€ 126.00

23007

230071246
ref: 23007

LENS-COMP,HEAD LAMP

€ 37.00

23008

230081513
ref: 23008

SOCKET-ASSY,HEAD LAMP

€ 45.50

92009

920091695
ref: 92009

SCREW,TAPPING

€ 2.00

92069

920691080
ref: 92069

BULB

€ 23.50

92072

920721297
ref: 92072

BAND,HEAD LAMP COVER

€ 17.00

92081

920811519
ref: 92081

SPRING,FOUCUS ADJUSTI

€ 2.50
