CYLINDER/PISTON(S)

KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

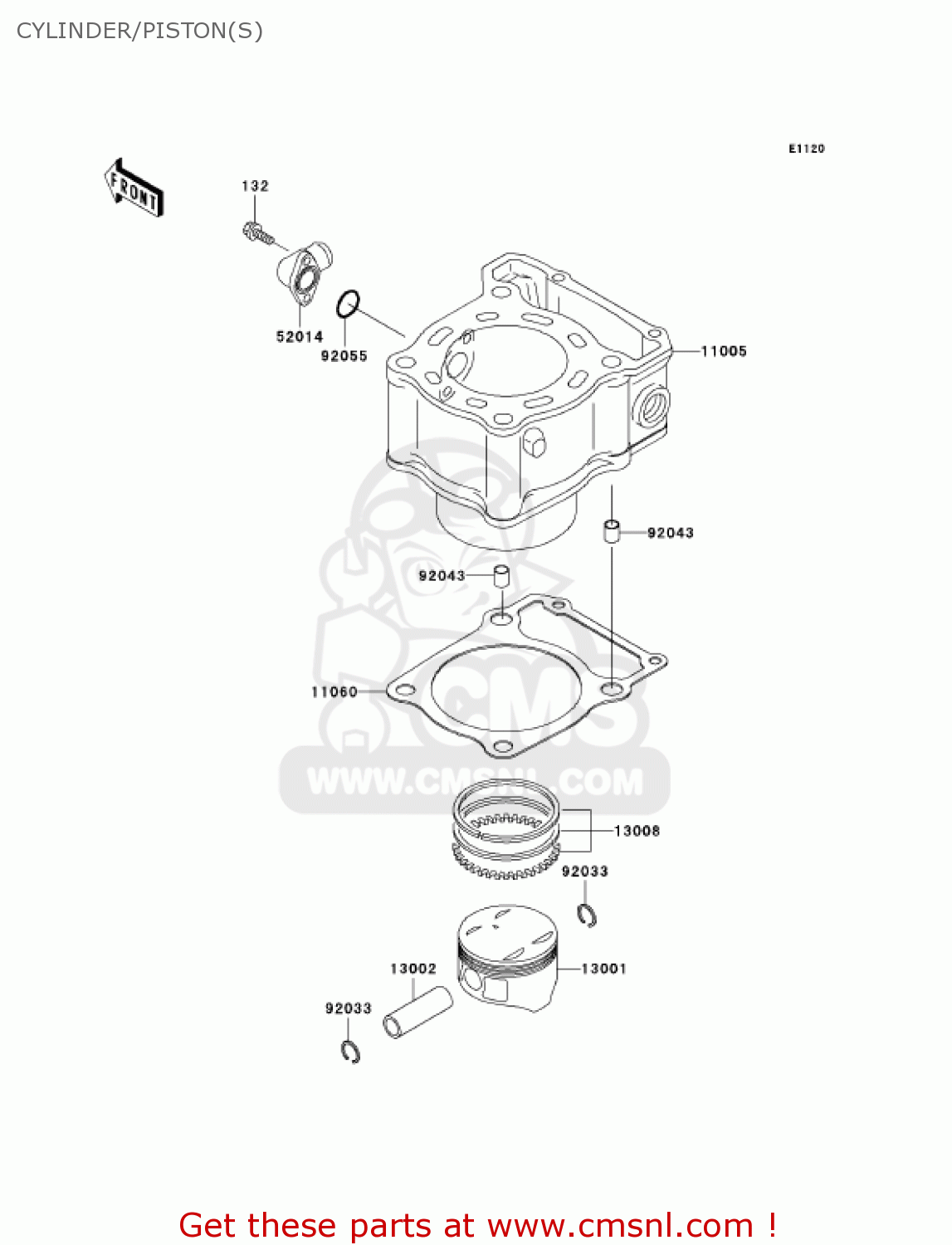

Cylinder/piston(s) diagram KLX300A9 KLX300R 2004 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132Y0614
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

11005

110051983
ref: 11005

CYLINDER-ENGINE

€ 608.50

11060

110601740
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 8.00

13001

130011463
ref: 13001

PISTON-ENGINE

€ 118.00

13002

130021109
ref: 13002

PIN-PISTON

€ 16.50

13008

130081071
ref: 13008

RING-SET-PISTON,STD

€ 62.00

52014

520141084
ref: 52014

ELBOW

€ 25.50

92033

920331054
ref: 92033

CIRCLIP,PISTON PIN

€ 2.00

92043

920434009
ref: 92043

PIN,10.1X12X14

€ 4.00

92055

92055055
ref: 92055

'0'RING

€ 2.50
