STARTER MOTOR

KLX250H6F KLX250S 2006 USA CANADA

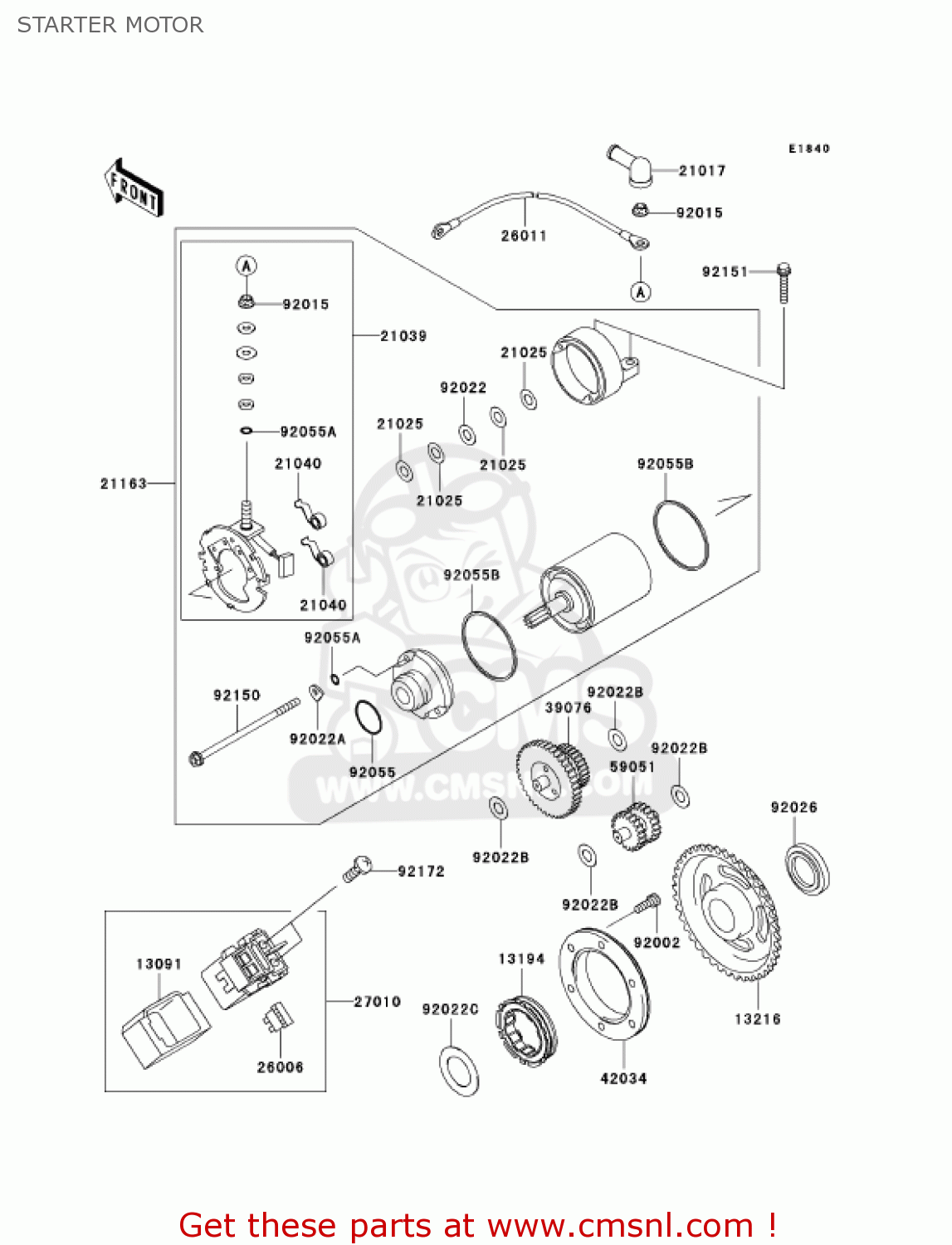

Starter motor diagram KLX250H6F KLX250S 2006 USA CANADA

STARTER MOTOR KLX250H6F KLX250S 2006 USA CANADA
STARTER MOTOR KLX250H6F KLX250S 2006 USA CANADA
STARTER MOTOR KLX250H6F KLX250S 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911883
ref: 13091
HOLDER,SWITCH
€ 5.50
13194
131941091
ref: 13194
CLUTCH-ONEWAY
131941091
€ 89.50
13216
132161148
ref: 13216
GEAR-COMP,ONEWAY CLUT
132161148
€ 175.00
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391062
ref: 21039
BRUSH,CARBON
210391062
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
210401057
€ 5.50
21163
211631256
ref: 21163
STARTER-ELECTRIC
€ 434.00
26006
260061051
ref: 26006
FUSE,20A
260061051
€ 3.00
26011
260111604
ref: 26011
WIRE-LEAD
€ 57.00
27010
270101336
ref: 27010
SWITCH
270101336
€ 104.50
39076
390761069
ref: 39076
LIMITER,STARTER IDLER
390761069
€ 150.00
42034
420341181
ref: 42034
COUPLING
€ 71.50
59051
590511304
ref: 59051
GEAR-SPUR,IDLE
590511304
€ 70.00
92002
920021778
ref: 92002
BOLT,SOCKET,6X16
920021778
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92022A
920221458
ref: 92022A
WASHER,LOCK,T=2.0
920221458
€ 3.50
92022B
920221649
ref: 92022B
WASHER,10.2X20X0.5
920221649
€ 2.50
92022C
920221781
ref: 92022C
WASHER,27.2X44X1.0
€ 4.00
92026
920261450
ref: 92026
SPACER
€ 14.50
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92150
921501838
ref: 92150
BOLT,STARTER MOTOR
921501838
€ 7.50
92151
921511134
ref: 92151
BOLT,6X30
921511134
€ 1.50
92172
921720234
ref: 92172
SCREW,PAN-WS-CROS,5X1
€ 1.50
