RADIATOR
KLX250H6F KLX250S 2006 USA CANADA

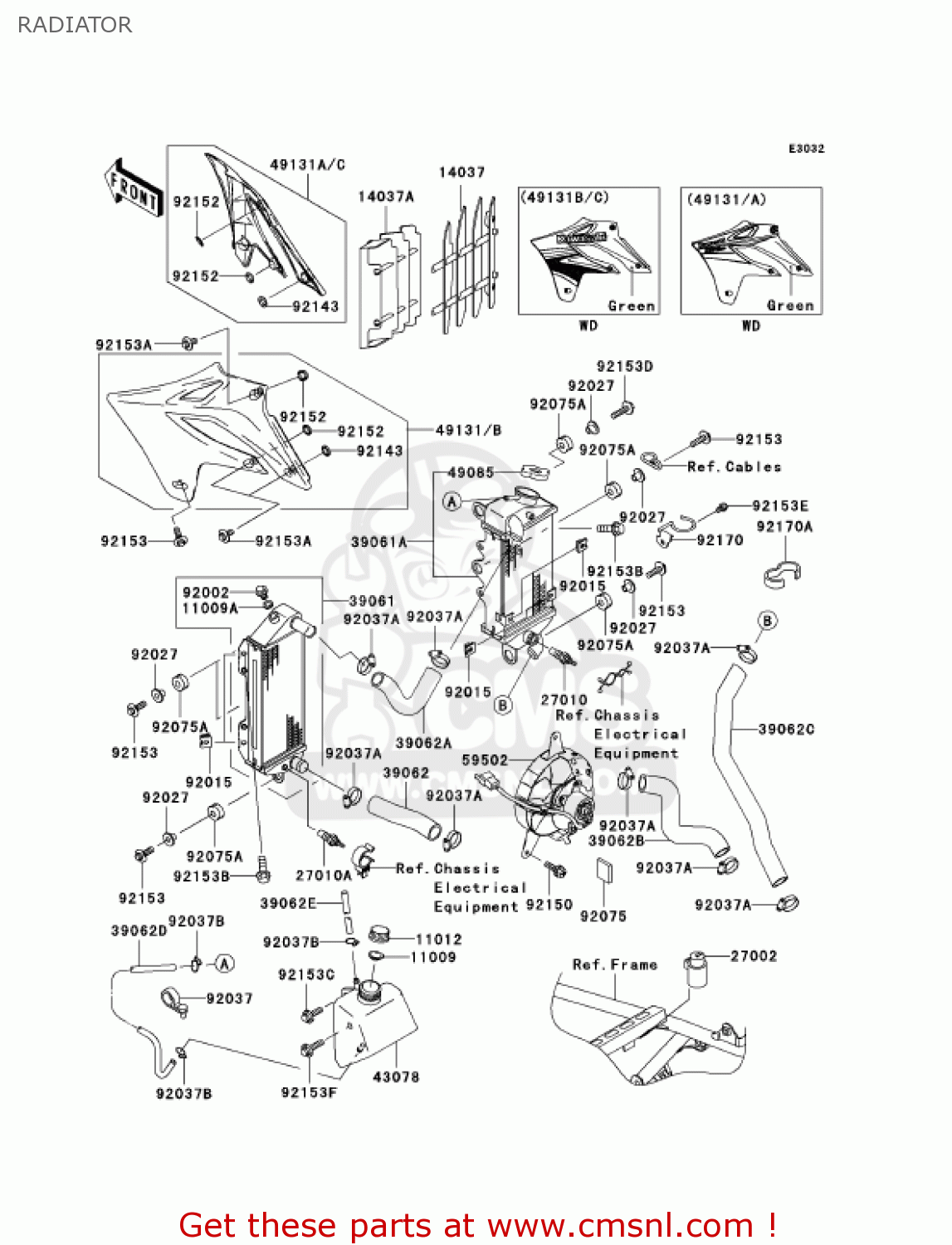

Radiator diagram KLX250H6F KLX250S 2006 USA CANADA
RADIATOR KLX250H6F KLX250S 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11009A
110091152
ref: 11009A
GASKET,DRAIN BOLT (NAS)
€ 4.50
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140370047RZ
ref: 14037
SCREEN,RH,WHITE
€ 17.50
14037A
140371099RZ
ref: 14037A
SCREEN,WHITE
€ 15.50
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
27010A
270101199
ref: 27010A
SWITCH,WARNING
€ 114.00
39061
390611193
ref: 39061
RADIATOR-ASSY,LH
€ 656.00
39061A
390611303
ref: 39061A
RADIATOR-ASSY,RH
€ 723.00
39062
390621535
ref: 39062
HOSE-COOLING,HEAD-RAD
€ 13.50
39062A
390621536
ref: 39062A
HOSE-COOLING,RADIATOR
€ 11.50
39062B
390621563
ref: 39062B
HOSE-COOLING,PUMP-CYL
€ 21.00
39062C
390621564
ref: 39062C
HOSE-COOLING,RADIATOR
€ 31.00
39062D
390621613
ref: 39062D
HOSE-COOLING,RESERVOI
€ 9.00
39062E
390621891
ref: 39062E
HOSE-COOLING
€ 6.00
43078
430780001
ref: 43078
RESERVOIR
€ 29.50
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49131
491315067290
ref: 49131
SHROUD-ENGINE,LH,L.GR
€ 148.50
49131A
491315068290
ref: 49131A
SHROUD-ENGINE,RH,L.GR
€ 158.50
59502
595021139
ref: 59502
FAN-ASSY
€ 322.50
92002
920021682
ref: 92002
BOLT,RADIATOR DRAIN
€ 13.50
92015
920151487
ref: 92015
NUT
€ 3.00
92027
92027194
ref: 92027
COLLAR
€ 3.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371589
ref: 92037A
CLAMP,COOLING HOSE
€ 13.00
92037B
920371712
ref: 92037B
CLAMP
€ 3.00
92075
920751982
ref: 92075
DAMPER,IGNITION
€ 2.50
92075A
92075209
ref: 92075A
DAMPER RUBBER
€ 3.00
92143
921431196
ref: 92143
COLLAR
€ 3.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92152
921521235
ref: 92152
COLLAR
€ 2.50
92153
921530502
ref: 92153
BOLT,6X20
€ 2.00
92153A
921530503
ref: 92153A
BOLT,6X12
€ 2.00
92153B
921530936
ref: 92153B
BOLT,FLANGED,6X14
€ 2.00
92153C
921530950
ref: 92153C
BOLT,FLANGED,6X22
€ 2.50
92153D
921531008
ref: 92153D
BOLT,FLANGED WP,M6X25
€ 1.50
92153E
921531354
ref: 92153E
BOLT,FLANGED,6X10
€ 1.50
92153F
921531457
ref: 92153F
BOLT,FLANGED,6X30
€ 2.00
92170
921701357
ref: 92170
CLAMP
€ 13.00
92170A
921701419
ref: 92170A
CLAMP
€ 3.00
