CYLINDER HEAD
KLX250H6F KLX250S 2006 USA CANADA

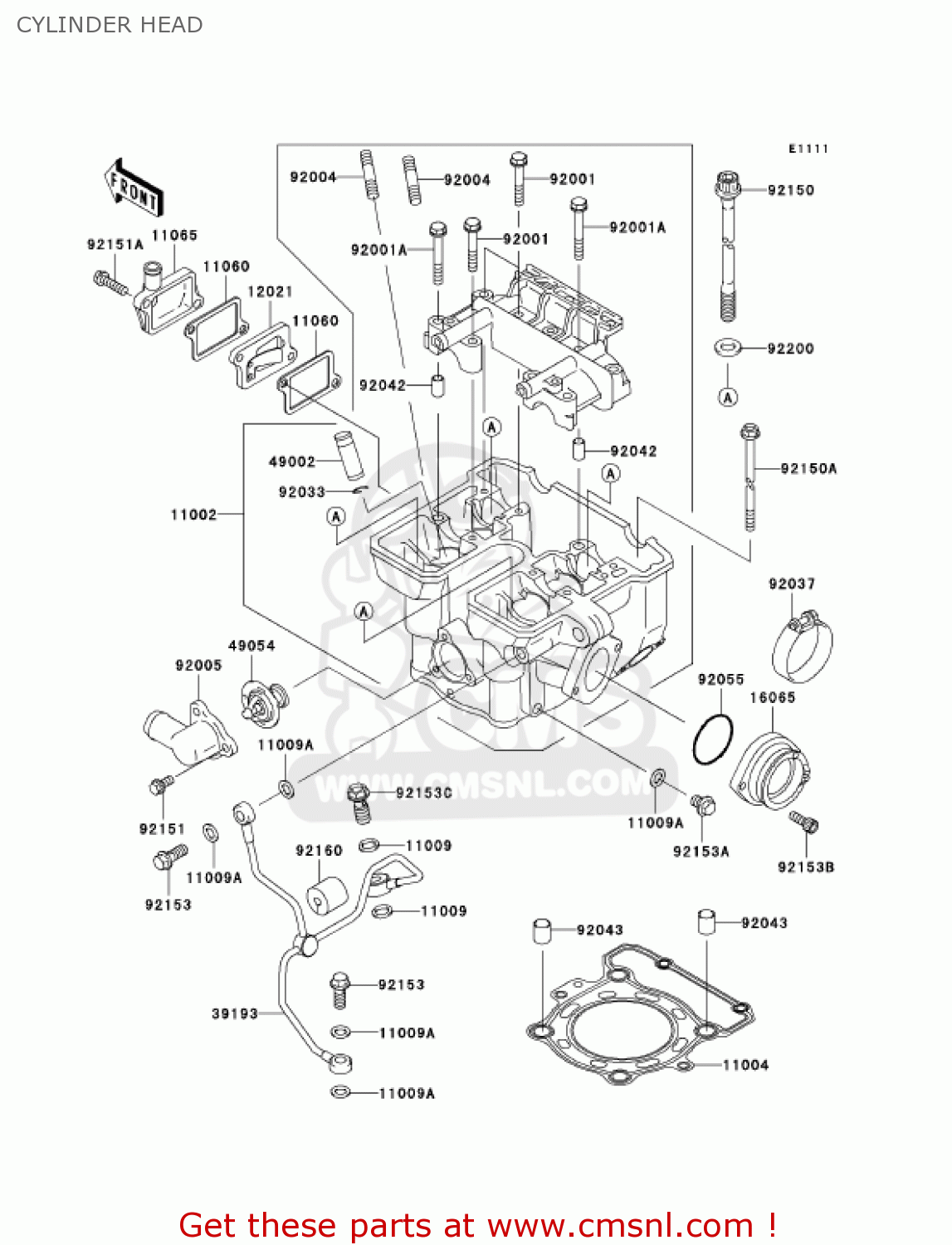

Cylinder head diagram KLX250H6F KLX250S 2006 USA CANADA
CYLINDER HEAD KLX250H6F KLX250S 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11002
110021382
ref: 11002
HEAD-ASSY-CYLINDER
€ 513.00
11004
110041249
ref: 11004
GASKET-HEAD (NAS)
€ 32.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
€ 1.50
11060
110601886
ref: 11060
GASKET,AIR SUCTION VA (NAS)
€ 2.00
11065
110651190
ref: 11065
CAP
€ 19.50
12021
120211115
ref: 12021
VALVE-ASSY-REED
€ 38.50
16065
160651283
ref: 16065
HOLDER-CARBURETOR
€ 36.50
39193
391931018
ref: 39193
PIPE-OIL
€ 87.50
49002
490021126
ref: 49002
GUIDE-VALVE
€ 24.50
49054
490541053
ref: 49054
THERMOSTAT
€ 39.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92001A
920011872
ref: 92001A
BOLT,6X46
€ 2.50
92004
920041217
ref: 92004
STUD
€ 4.00
92005
920051258
ref: 92005
FITTING
€ 23.00
92033
920331247
ref: 92033
RING-SNAP
€ 2.00
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
€ 7.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92055
920551255
ref: 92055
RING-O
€ 12.50
92150
921501368
ref: 92150
BOLT,10X165
€ 13.00
92150A
921501552
ref: 92150A
BOLT,6X135
€ 4.50
92151
921511133
ref: 92151
BOLT,6X12
€ 1.50
92151A
921511937
ref: 92151A
BOLT,6X22
€ 1.50
92153
921530651
ref: 92153
BOLT,BANJO,8X20
€ 8.00
92153A
921531342
ref: 92153A
BOLT,FLANGED,8X10
€ 2.00
92153B
921531344
ref: 92153B
BOLT,SOCKET,6X16
€ 2.00
92153C
921531345
ref: 92153C
BOLT,BANJO,10X23
€ 7.50
92160
921601523
ref: 92160
DAMPER,6.3X15X14
€ 2.00
92200
922001042
ref: 92200
WASHER,10.5X19X2.3
€ 2.50
