GEAR CHANGE DRUM/SHIFT FORK(S)

KLX250H6F KLX250S 2006 USA CANADA

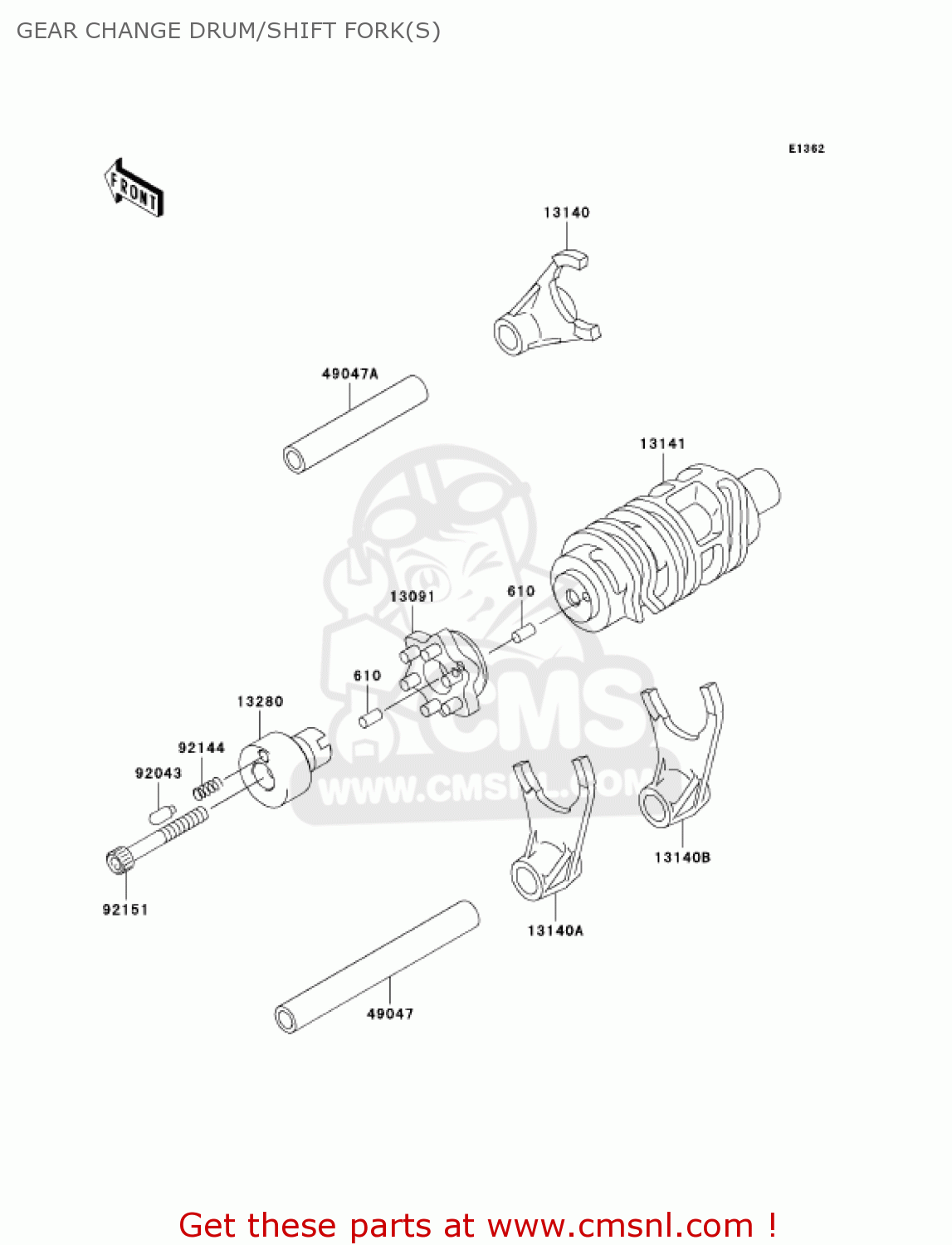

Gear change drum/shift fork(s) diagram KLX250H6F KLX250S 2006 USA CANADA

prices are in EUR

ref

part #

description

quantity

610A0408

610A0408
ref: 610A0408

ROLLER,4X8

€ 2.50

13091

130911856
ref: 13091

HOLDER,CHANGE DRUM

€ 31.00

13140

131401216
ref: 13140

FORK-SHIFT,5TH&TOP

€ 65.50

13140

131401217
ref: 13140

FORK-SHIFT,2ND&3RD

€ 65.50

13140

131401218
ref: 13140

FORK-SHIFT,LOW&4TH

€ 65.50

13141

131411198
ref: 13141

DRUM-CHANGE

€ 95.50

13280

132801214
ref: 13280

HOLDER

€ 18.50

49047

490471056
ref: 49047

ROD-SHIFT,L=106.7

€ 16.00

49047

490471057
ref: 49047

ROD-SHIFT,L=71.7

€ 12.00

92043

920431523
ref: 92043

PIN

€ 2.50

92144

921441245
ref: 92144

SPRING

€ 2.50

92151

921511471
ref: 92151

BOLT,SOCKET,6X45

€ 1.50
