FRAME FITTINGS

KLX250H6F KLX250S 2006 USA CANADA

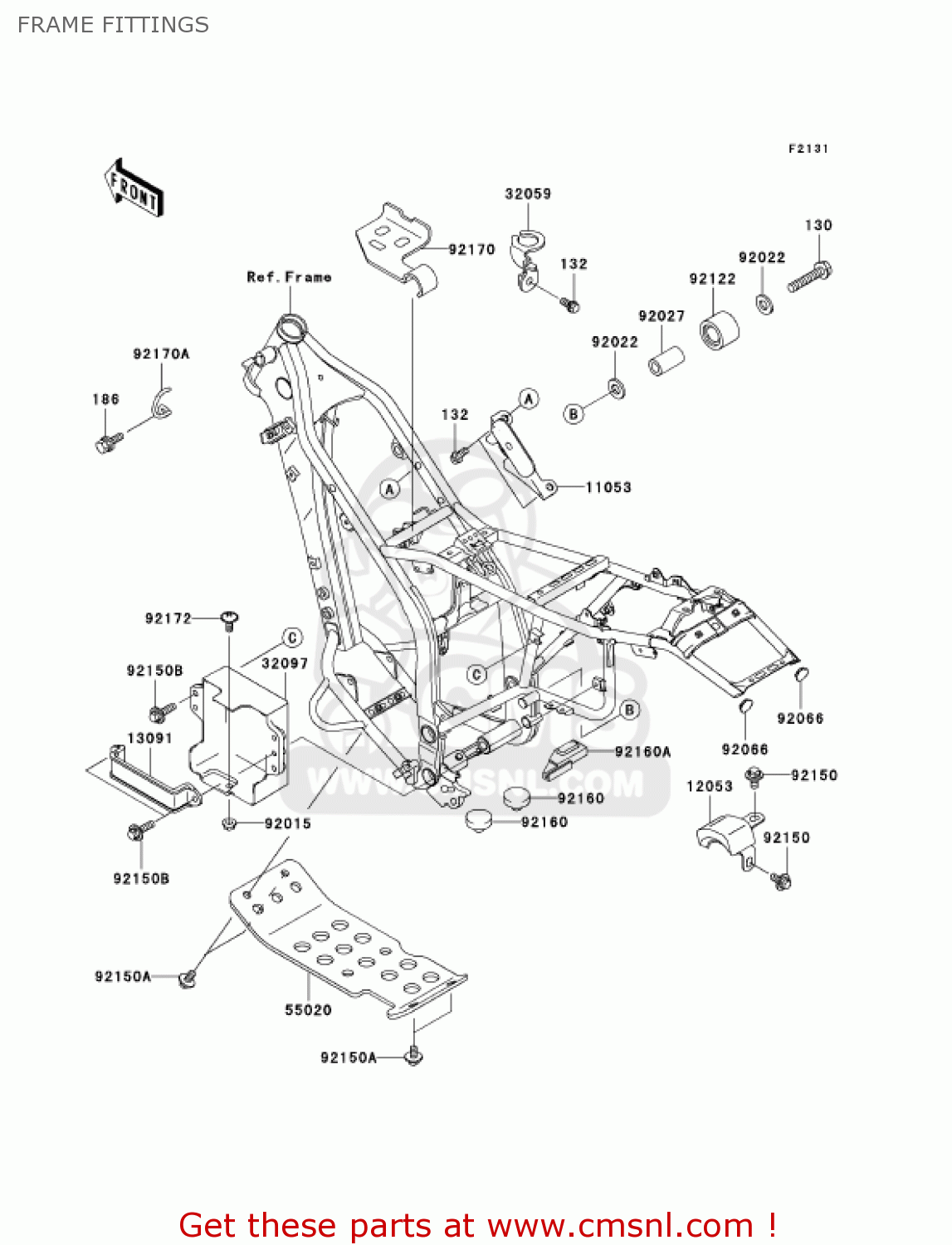

Frame fittings diagram KLX250H6F KLX250S 2006 USA CANADA

FRAME FITTINGS KLX250H6F KLX250S 2006 USA CANADA
FRAME FITTINGS KLX250H6F KLX250S 2006 USA CANADA
FRAME FITTINGS KLX250H6F KLX250S 2006 USA CANADA
prices are in EUR
ref
part #
description
quantity
130
130G0840
ref: 130
BOLT-FLANGED,8X40
130G0840
€ 1.00
132
132L0612
ref: 132
BOLT-FLANGED-SMALL
132L0612
€ 1.50
186
186B0620
ref: 186
BOLT-UPSET-WP
186B0620
€ 1.50
11053
110531242
ref: 11053
BRACKET
€ 27.50
12053
120530001
ref: 12053
GUIDE-CHAIN
120530001
€ 10.50
13091
130911875
ref: 13091
HOLDER
130911875
€ 5.50
32059
320591117
ref: 32059
BRACKET-SWITCH,BRAKE
320591117
€ 6.50
32097
320970001
ref: 32097
CASE-BATTERY
€ 69.00
55020
550201456
ref: 55020
GUARD,ENGINE
550201456
€ 74.00
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92022
920221561
ref: 92022
WASHER,8.5X20X1.6
920221561
€ 2.50
92027
920271670
ref: 92027
COLLAR,CHAIN ROLLER
920271670
€ 4.50
92066
920661034
ref: 92066
PLUG,FRAME END
920661034
€ 3.00
92122
921221153
ref: 92122
ROLLER,CHAIN GUIDE
921221153
€ 7.00
92150
921501340
ref: 92150
BOLT,6X14
921501340
€ 3.00
92150A
921501435
ref: 92150A
BOLT
921501435
€ 2.50
92150B
921501481
ref: 92150B
BOLT,FLANGED,6X22
921501481
€ 2.50
92160
921601396
ref: 92160
DAMPER
921601396
€ 3.50
92160A
921601565
ref: 92160A
DAMPER
€ 4.00
92170
921701423
ref: 92170
CLAMP
€ 12.50
92170A
921701944
ref: 92170A
CLAMP,HARNESS
€ 8.00
92172
921720004
ref: 92172
SCREW,6X14
921720004
€ 2.00
