METER(S)
KLE250-A3 1997 GREECE

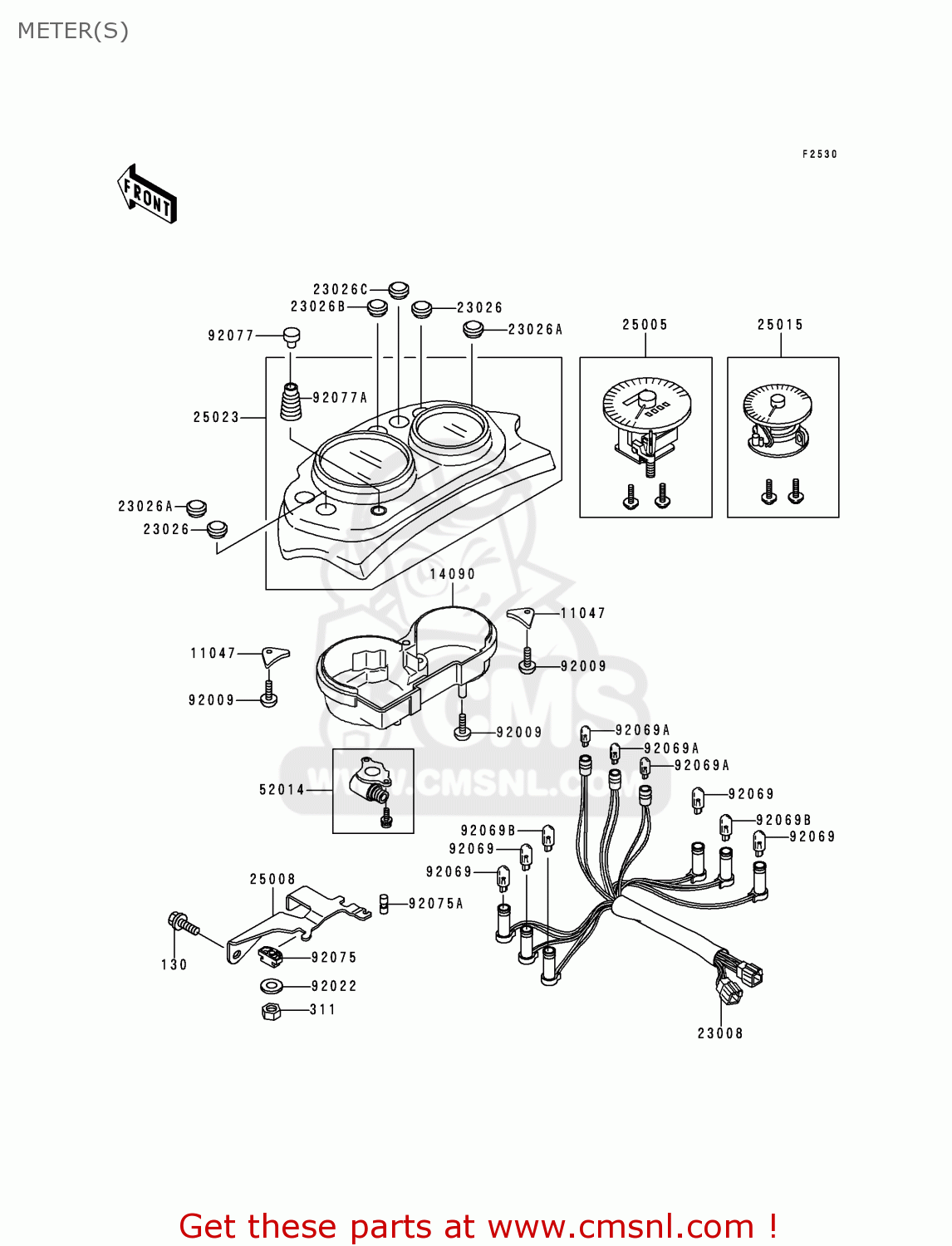

Meter(s) diagram KLE250-A3 1997 GREECE
METER(S) KLE250-A3 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
130
130J0812
ref: 130
BOLT-FLANGED
€ 0.50
311
311B0500
ref: 311
NUT-HEX
€ 0.50
11047
110471373
ref: 11047
BRACKET,METER
€ 5.00
14090
140901102
ref: 14090
COVER,METER HOUSING
€ 60.00
23008
230081512
ref: 23008
SOCKET-ASSY,METER
€ 98.50
23026
230261105
ref: 23026
LENS,OIL
€ 7.00
23026A
230261106
ref: 23026A
LENS,PILOT,ORANGE
€ 6.50
23026B
230261107
ref: 23026B
LENS,NEUTRAL
€ 7.00
23026C
230261108
ref: 23026C
LENS,PILOT,BLUE
€ 7.50
25005
250051539
ref: 25005
SPEEDOMETER,KPH
€ 257.50
25008
250081176
ref: 25008
BRACKET-METER
€ 44.50
25015
250151322
ref: 25015
TACHOMETER,X1000R/MIN
€ 274.00
25023
250231205
ref: 25023
COVER-METER CASE,UPP
€ 100.00
52014
520141081
ref: 52014
ELBOW,METER
€ 57.00
92009
920091503
ref: 92009
SCREW,TAPPING,4X14
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92069B
920691059
ref: 92069B
BULB,12V 1.7W
€ 2.50
92075
920751495
ref: 92075
DAMPER,METER BRACKET
€ 8.00
92075A
920751627
ref: 92075A
DAMPER,METER BRACKET
€ 3.50
92077
920771083
ref: 92077
KNOB,TRIP RESET
€ 6.00
92077A
920771087
ref: 92077A
KNOB,TRIP RESET
€ 6.00
