FRONT FORK
KLE250-A3 1997 GREECE

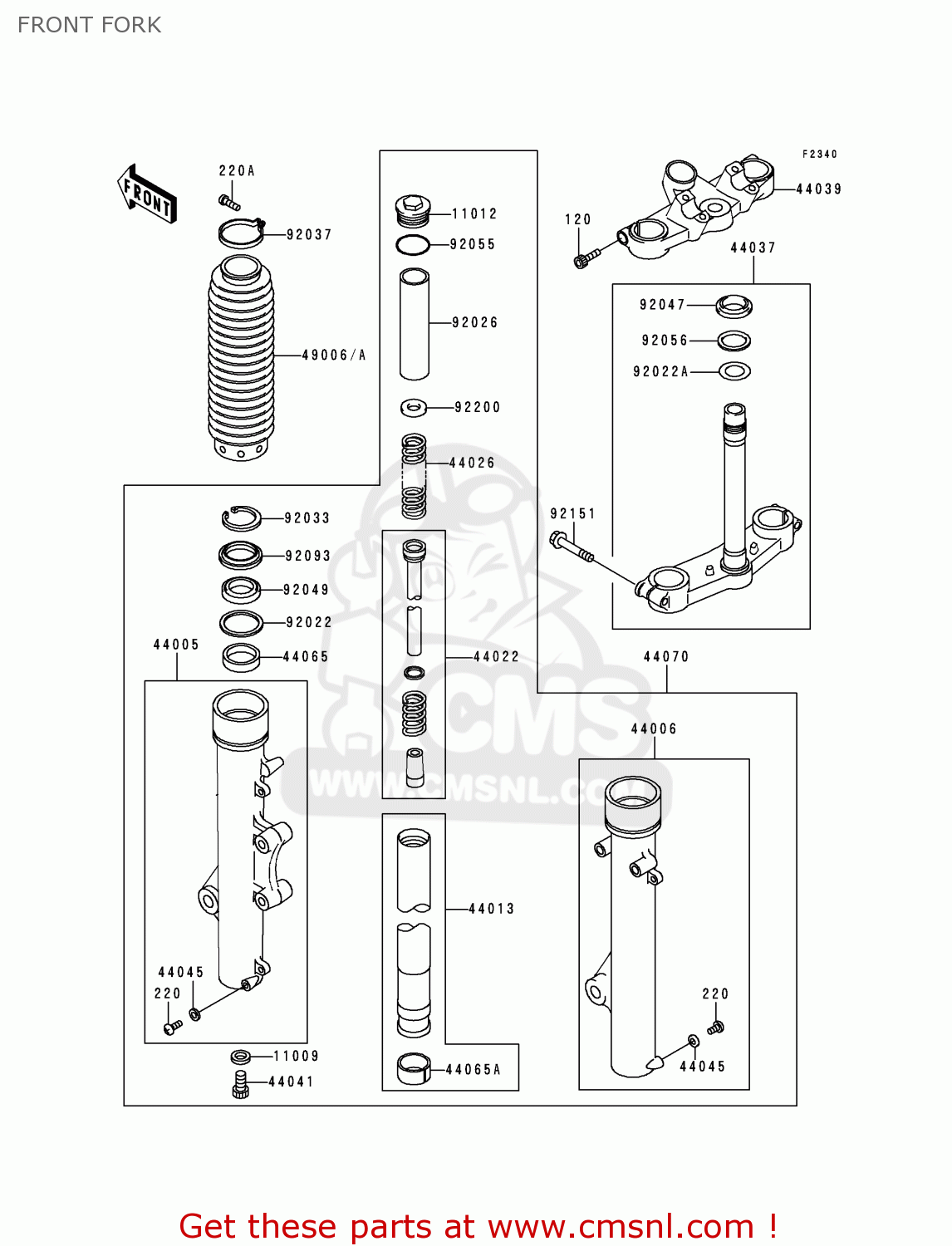

Front fork diagram KLE250-A3 1997 GREECE
FRONT FORK KLE250-A3 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
220A
220B0416
ref: 220A
SCREW-PAN-CROS
€ 2.00
11009
110091325
ref: 11009
GASKET,FORK, CYL BOLT (NAS)
€ 3.00
11012
110121852
ref: 11012
CAP,FORK TOP
€ 27.50
44005
440051352
ref: 44005
PIPE-LEFT FORK OUTER
€ 380.50
44006
440061350
ref: 44006
PIPE-RIGHT FORK OUTER
€ 380.50
44013
440131390
ref: 44013
PIPE-FORK INNER
€ 165.50
44022
440221292
ref: 44022
CYLINDER-FORK
€ 163.00
44026
440261544
ref: 44026
SPRING-FRONT FORK
€ 75.00
44037
440371315
ref: 44037
HOLDER-FORK UNDER
€ 431.50
44039
440391238
ref: 44039
HOLDER-FORK UPPER
€ 239.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
44065
440651091
ref: 44065
BUSHING-FRONT FORK,OU
€ 17.00
44065A
440651092
ref: 44065A
BUSHING-FRONT FORK,IN
€ 16.50
44070
440701428
ref: 44070
DAMPER-ASSY,FORK
€ 1,520.50
49006
490061222JX
ref: 49006
BOOT,FORK,GRAY
€ 56.00
49006A
490061222SR
ref: 49006A
BOOT,FORK,STEEL GRAY
€ 58.50
92022
920221242
ref: 92022
WASHER
€ 5.50
92022A
92022231
ref: 92022A
WASHER,PLAIN
€ 3.00
92026
920261438
ref: 92026
SPACER
€ 6.00
92033
920331047
ref: 92033
SNAP RING,FORK OUTER
€ 4.00
92037
920371024
ref: 92037
BAND, BOOT
€ 6.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
€ 14.50
92049
920491180
ref: 92049
SEAL-OIL,FRONT FORK
€ 14.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
€ 6.00
92093
920931166
ref: 92093
SEAL,FRONT FORK
€ 12.50
92151
921511171
ref: 92151
BOLT
€ 5.50
92200
922001276
ref: 92200
WASHER
€ 6.50
