HEADLIGHT(S)

KLE250-A3 1997 GREECE

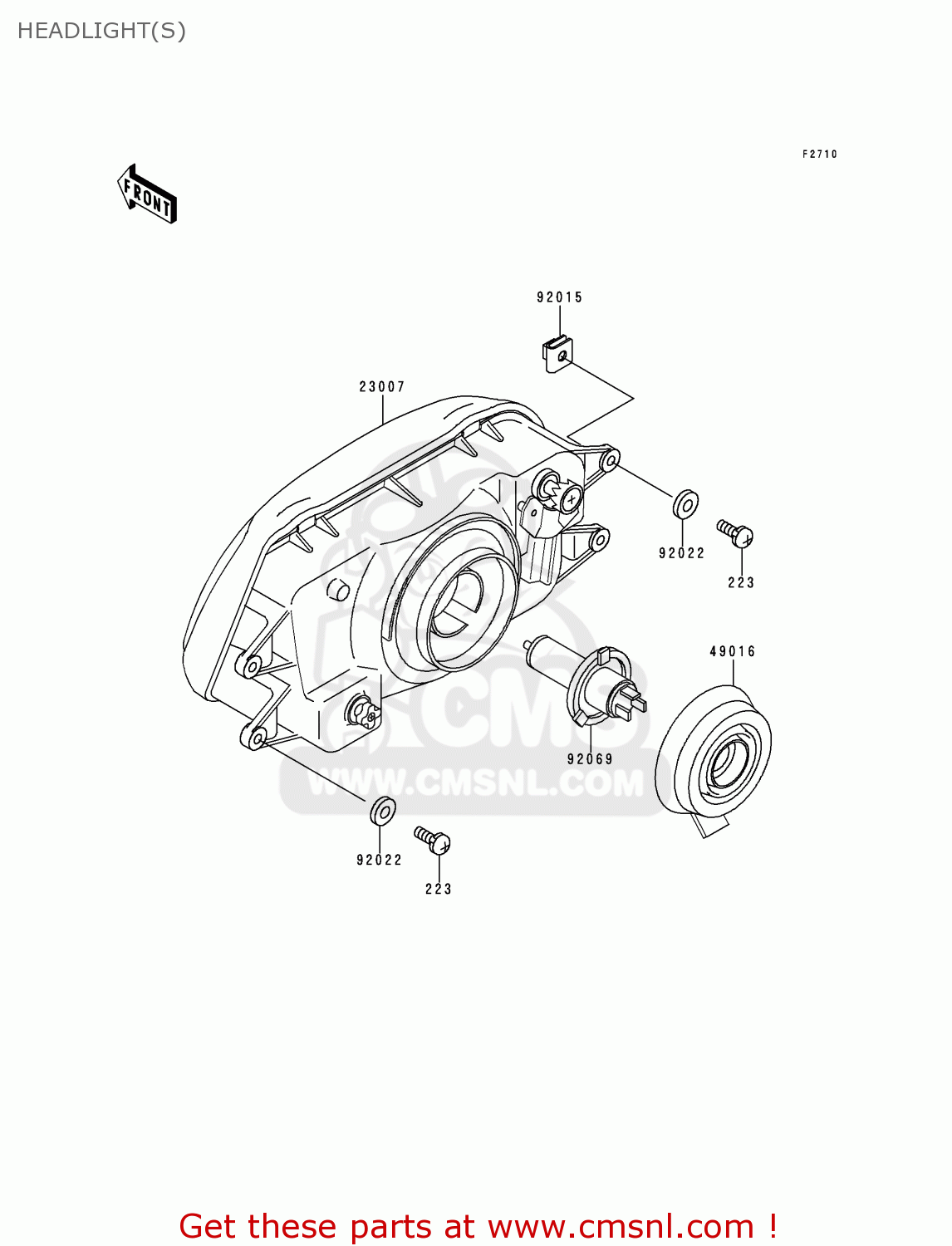

Headlight(s) diagram KLE250-A3 1997 GREECE

HEADLIGHT(S) KLE250-A3 1997 GREECE

HEADLIGHT(S) KLE250-A3 1997 GREECE

prices are in EUR

ref

part #

description

quantity

223

223B0625
ref: 223

SCREW-PAN-WS-CROS

€ 3.00

23007

230071310
ref: 23007

LENS-COMP,HEAD LAMP

€ 270.00

49016

490161137
ref: 49016

COVER-SEAL,HEAD LAMP

€ 10.50

92015

920151904
ref: 92015

NUT,CLIP,6MM

€ 4.50

92022

920221565
ref: 92022

WASHER,6.5X16X2

€ 2.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00
