CRANKCASE BOLT PATTERN
KLE250-A3 1997 GREECE

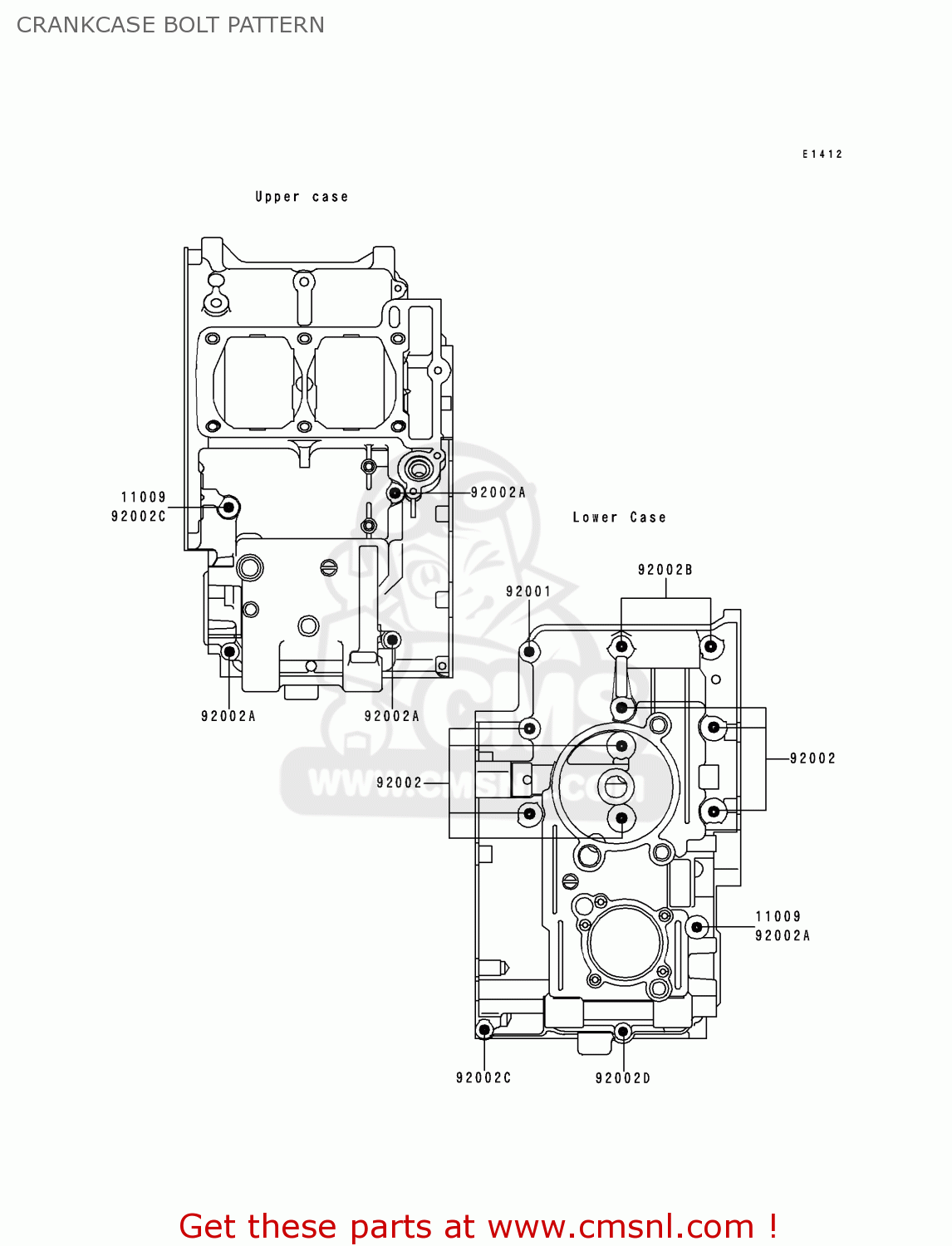

Crankcase bolt pattern diagram KLE250-A3 1997 GREECE
CRANKCASE BOLT PATTERN KLE250-A3 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
11009
110091568
ref: 11009
GASKET,6.5X12X1.0 (NAS)
€ 2.50
92001
920011899
ref: 92001
BOLT,6X38
€ 2.50
92002
920021057
ref: 92002
BOLT,8X90
€ 6.50
92002A
920021306
ref: 92002A
BOLT
€ 3.50
92002B
920021329
ref: 92002B
BOLT,8X72
€ 6.50
92002C
920021584
ref: 92002C
BOLT,6X60
€ 3.50
92002D
920021687
ref: 92002D
BOLT,6X135
€ 5.50
