IGNITION SYSTEM

KLE250-A3 1997 GREECE

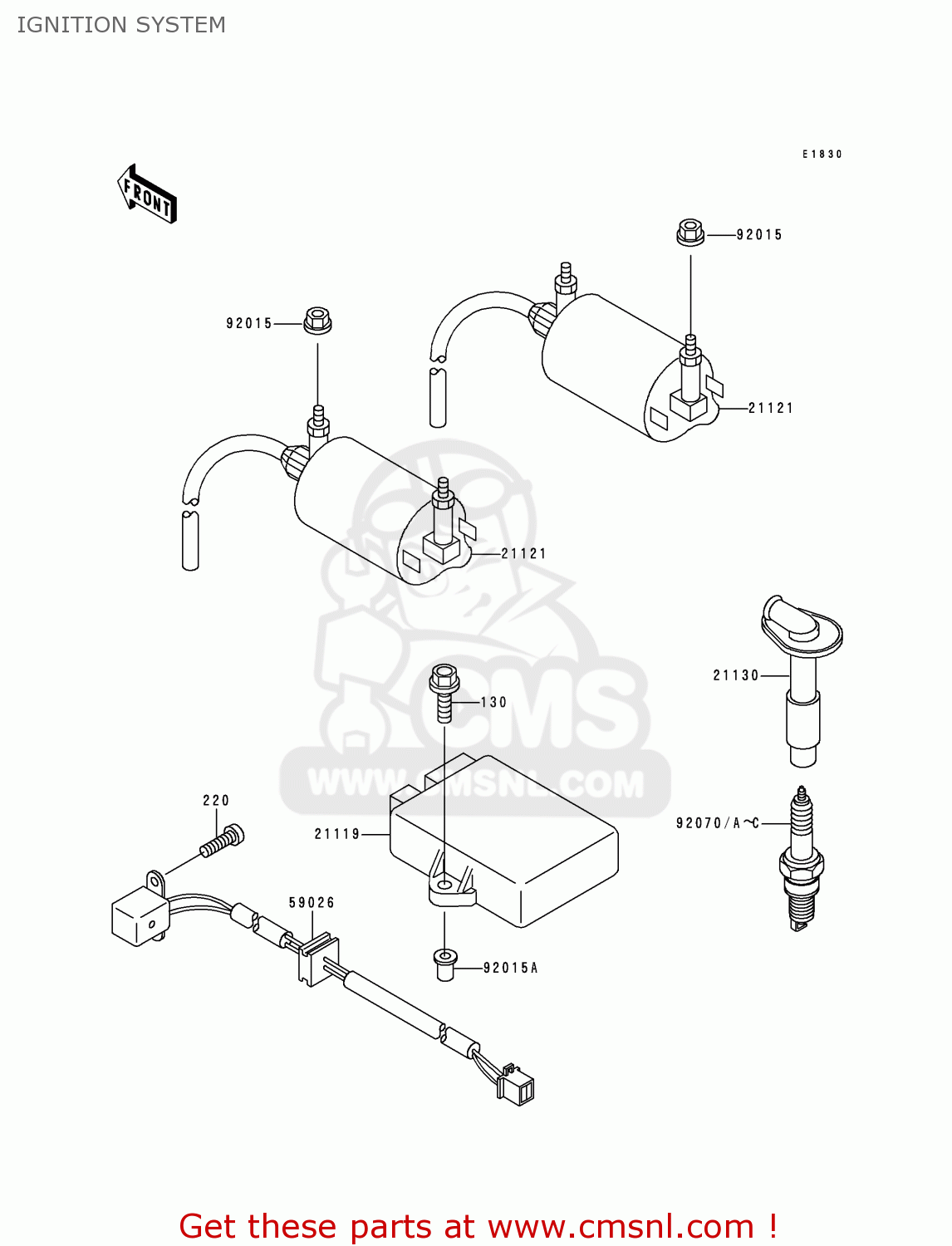

Ignition system diagram KLE250-A3 1997 GREECE

IGNITION SYSTEM KLE250-A3 1997 GREECE
IGNITION SYSTEM KLE250-A3 1997 GREECE
IGNITION SYSTEM KLE250-A3 1997 GREECE
prices are in EUR
ref
part #
description
quantity
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
21119
211191388
ref: 21119
IGNITER
€ 698.50
21121
211211222
ref: 21121
COIL-IGNITION
€ 143.50
21130
211301056
ref: 21130
CAP-SPARK PLUG
211301056
€ 38.00
59026
590261086
ref: 59026
COIL-PULSING
590261086
€ 111.00
92015
920151365
ref: 92015
NUT,6MM
920151365
€ 3.00
92015A
920151700A
ref: 92015A
NUT
920151700A
€ 5.50
92070
920701154
ref: 92070
CR7HSA (NGK SPARKPLUG
€ 4.00
92070A
920701155
ref: 92070A
CR8HSA (NGK SPARKPLUG
920701155
€ 4.00
92070B

ref: 92070B
92070C

ref: 92070C
