Genuine KLE Kawasaki Parts delivered quickly!
home
ENGINE COVER(S)
KLE250-A3 1997 GREECE

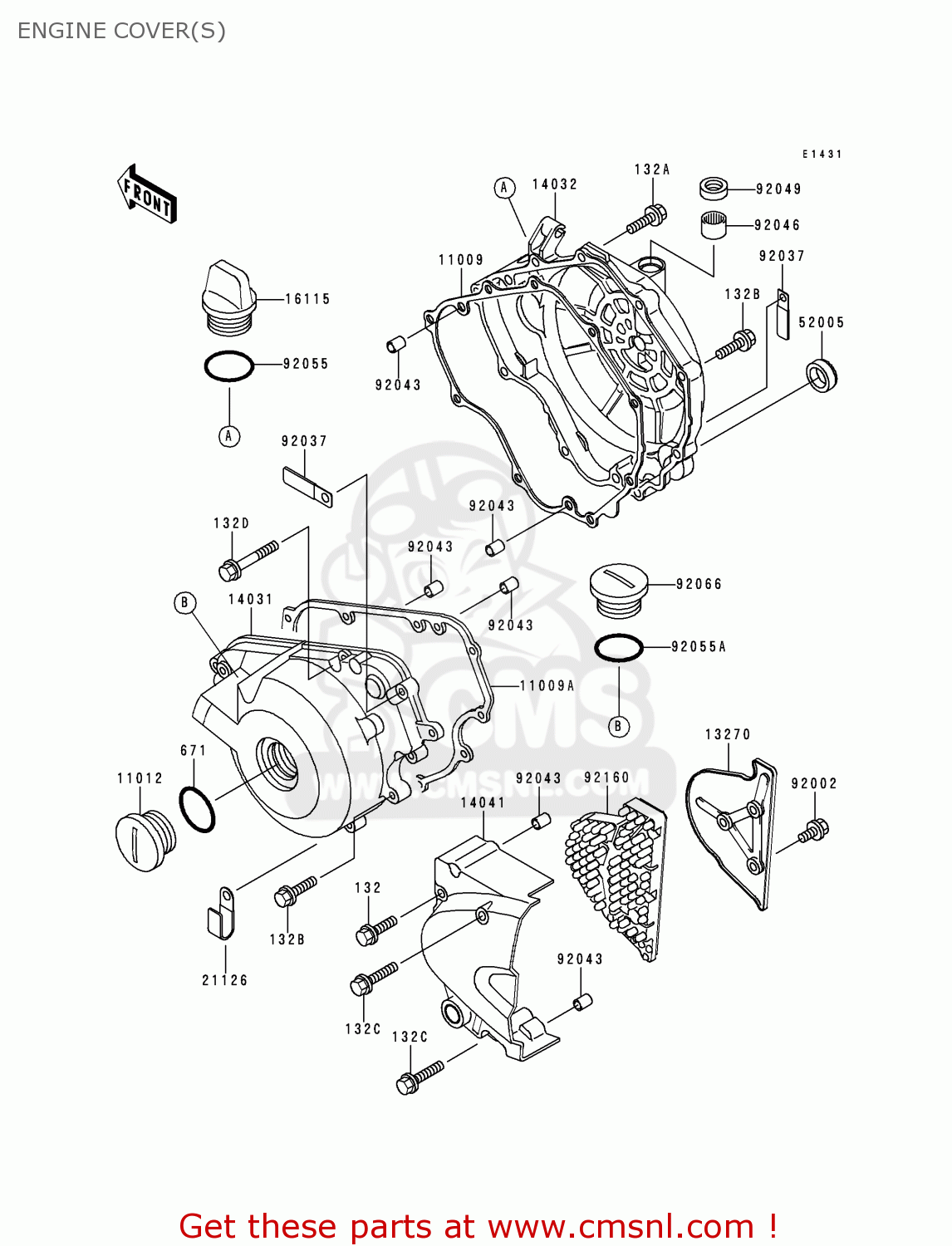

Engine cover(s) diagram KLE250-A3 1997 GREECE
ENGINE COVER(S) KLE250-A3 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132E0625
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132E0630
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132E0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132E0675
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
11009
110091872
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 18.00
11009A
110091873
ref: 11009A
GASKET,GENERATOR (NAS)
€ 11.00
11012
110121850
ref: 11012
CAP
€ 6.50
13270
132701054
ref: 13270
PLATE,CHAIN COVER
€ 14.00
14031
140311248
ref: 14031
COVER-GENERATOR
€ 153.50
14032
140321344
ref: 14032
COVER-CLUTCH
€ 169.50
14041
140411110
ref: 14041
COVER-COMP,CHAIN
€ 71.00
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
€ 3.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92002
920021944
ref: 92002
BOLT,6X8
€ 3.00
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920661397
ref: 92066
PLUG
€ 10.00
92160
921601415
ref: 92160
DAMPER,CHAIN COVER
€ 34.00
