TURN SIGNAL

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

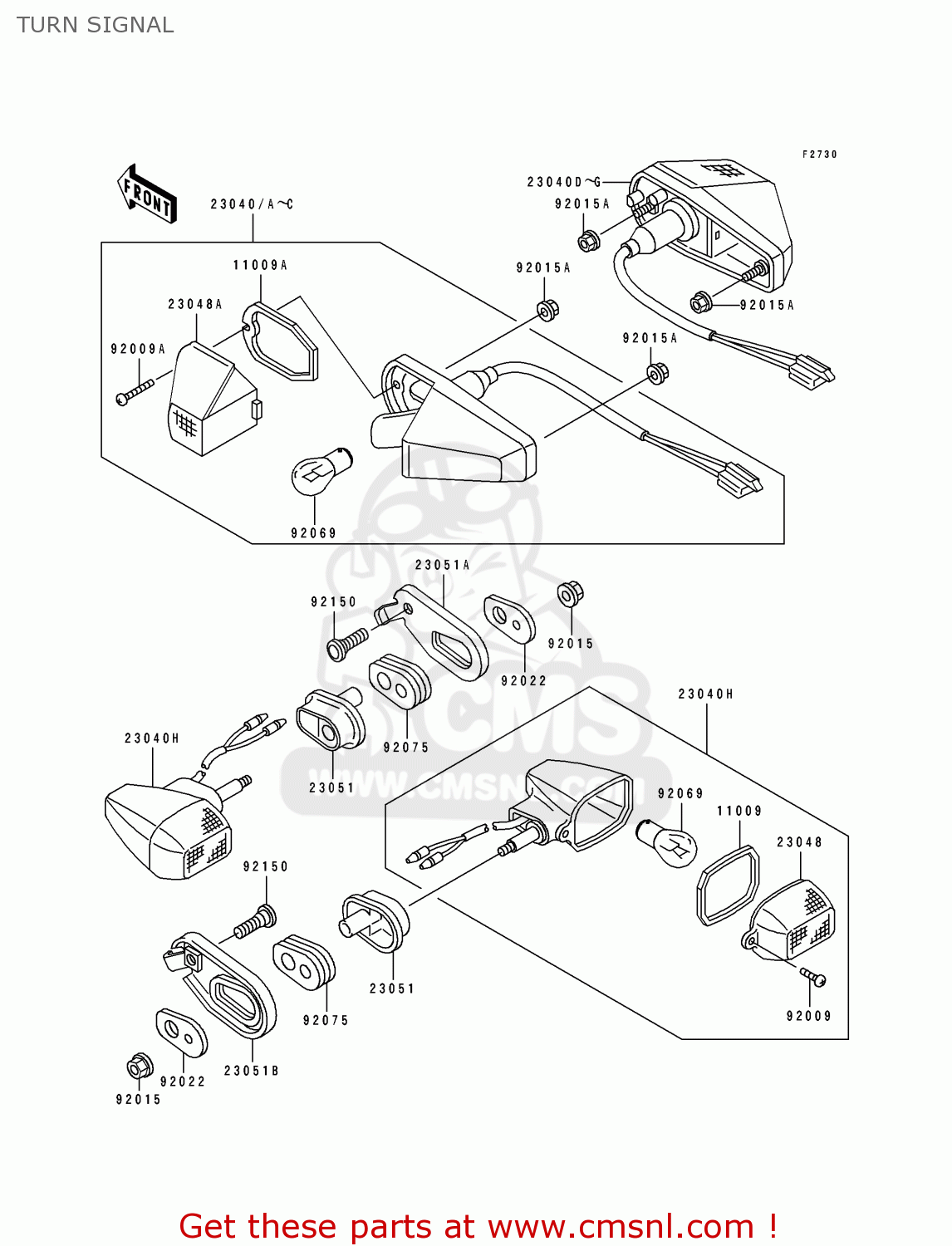

Turn signal diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

TURN SIGNAL KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
TURN SIGNAL KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
TURN SIGNAL KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091576
ref: 11009
GASKET,SIGNAL LAMP (NAS)
110091576
€ 4.50
11009A
110091620
ref: 11009A
GASKET,SIGNAL LAMP (NAS)
110091620
€ 2.50
23040
230401199DB
ref: 23040
LAMP-SIGNAL,FR,LH,BLU
€ 43.50
23040B
230401199H1
ref: 23040B
AREUFRGRITNRSDSTUKWG
LAMP-SIGNAL,FR,LH,S.R
230401199H1
€ 39.50
23040D
230401200DB
ref: 23040D
LAMP-SIGNAL,FR,RH,BLU
230401200DB
€ 22.50
23040F
230401200H1
ref: 23040F
AREUFRGRITNRSDSTUKWG
LAMP-SIGNAL,FR,RH,S.R
230401200H1
€ 41.00
23040H
230401201
ref: 23040H
LAMP-SIGNAL
230401201
€ 56.00
23048
230481068
ref: 23048
LENS-SIGNAL LAMP
230481068
€ 12.00
23048A
230481083
ref: 23048A
LENS-SIGNAL LAMP
230481083
€ 10.50
23051
230511168
ref: 23051
BRACKET-SIGNAL LAMP,R
230511168
€ 16.00
23051A
230511205
ref: 23051A
BRACKET-SIGNAL LAMP,R
230511205
€ 8.00
23051B
230511206
ref: 23051B
BRACKET-SIGNAL LAMP,R
230511206
€ 9.00
92009
920091142
ref: 92009
SCREW,TAPPING,4X12
920091142
€ 3.00
92009A
920091297
ref: 92009A
SCREW,TAPPING,4X20
920091297
€ 2.50
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
920151237
€ 3.50
92015A
920151259
ref: 92015A
NUT,FLANGED,5MM
920151259
€ 2.50
92022
920221672
ref: 92022
WASHER,SIGNAL LAMP
920221672
€ 3.50
92069

ref: 92069
92075
920751698
ref: 92075
DAMPER,SIGNAL LAMP
920751698
€ 6.00
92150
921501151
ref: 92150
BOLT,8MM
€ 3.00
