Genuine KL Kawasaki Parts delivered quickly!


RADIATOR

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

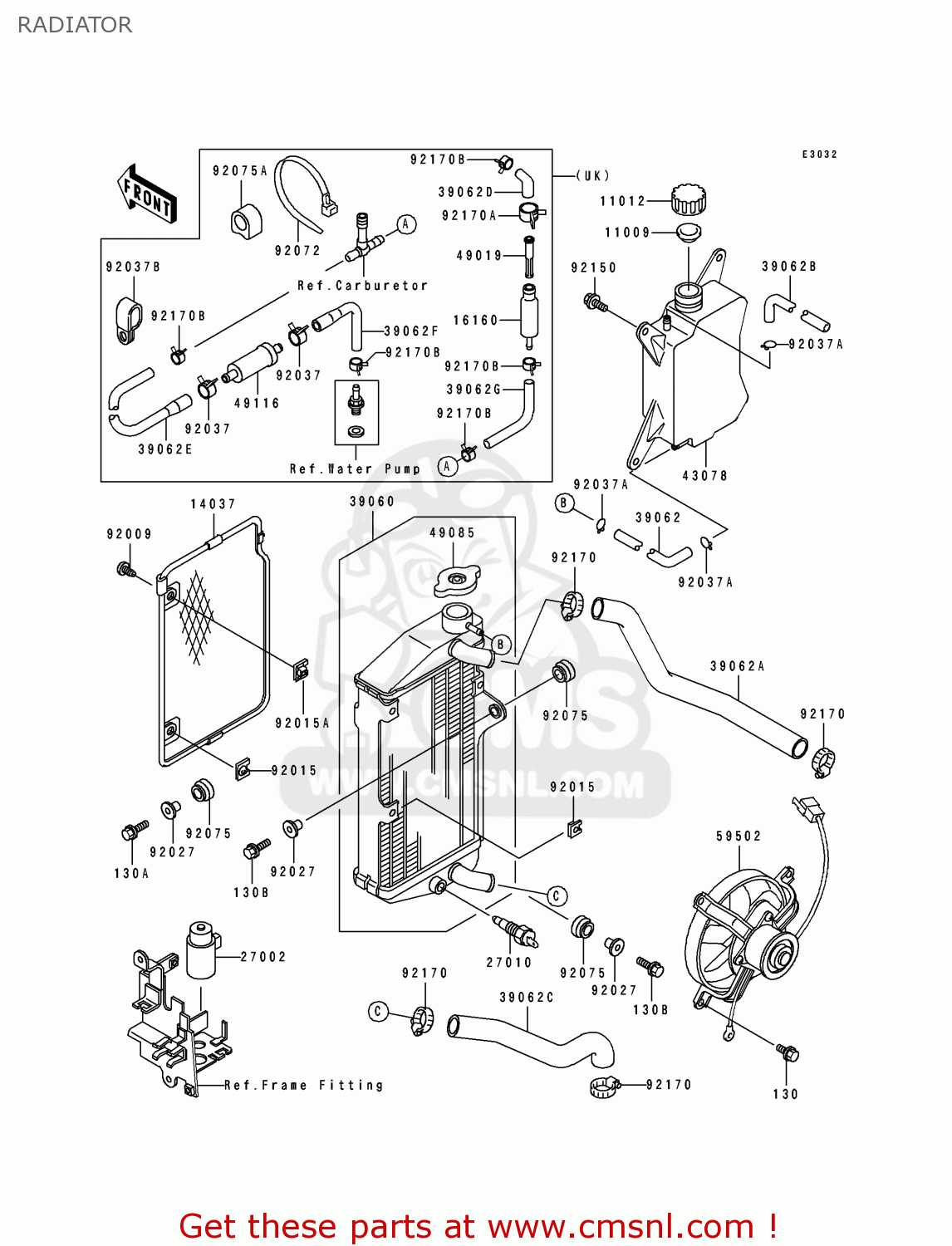

Radiator diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

RADIATOR KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
RADIATOR KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
14037
140371088
ref: 14037
SCREEN
140371088
€ 66.00
16160
161601151
ref: 16160
UK
BODY,FILTER
161601151
€ 6.50
27002
270021051
ref: 27002
RELAY-ASSY
270021051
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
270101167
€ 108.50
39060
390601074
ref: 39060
RADIATOR
390601074
€ 690.50
39062
390621125
ref: 39062
HOSE-COOLING
€ 17.50
39062A
390621217
ref: 39062A
HOSE-COOLING,HEAD-RAD
390621217
€ 35.00
39062B
390621220
ref: 39062B
HOSE-COOLING,RESERVOI
390621220
€ 17.50
39062C
390621243
ref: 39062C
HOSE-COOLING,RADIATOR
390621243
€ 23.50
39062D
390621411
ref: 39062D
UK
HOSE-COOLING
390621411
€ 7.00
39062E
390621413
ref: 39062E
UK
HOSE-COOLING
€ 15.00
39062F
390621414
ref: 39062F
UK
HOSE-COOLING
€ 15.00
39062G
390621415
ref: 39062G
UK
HOSE-COOLING
390621415
€ 16.50
43078
430781083
ref: 43078
RESERVOIR
430781083
€ 45.50
49019
490191068
ref: 49019
UK
FILTER-FUEL
490191068
€ 4.00
49085
490851003
ref: 49085
CAP-ASSY-PRESSURE
490851003
€ 23.50
49116
491161081
ref: 49116
UK
VALVE-ASSY
491161081
€ 85.00
59502
595021082
ref: 59502
FAN-ASSY
595021082
€ 483.00
92009
920091480
ref: 92009
SCREW
920091480
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
920271183
€ 3.50
92037
920371181
ref: 92037
UK
CLAMP
920371181
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
92037147
€ 4.50
92037B
920371608
ref: 92037B
UK
CLAMP
920371608
€ 5.50
92072
920721237
ref: 92072
UK
BAND,L=250
920721237
€ 2.00
92075
920751352
ref: 92075
DAMPER,RADIATOR
920751352
€ 4.00
92075A
920751728
ref: 92075A
UK
DAMPER,CARRIER
920751728
€ 5.00
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
130J0620
€ 2.50
130B
130J0625
ref: 130B
BOLT-FLANGED,6X25
130J0625
€ 2.00
92150
921501506
ref: 92150
BOLT
921501506
€ 3.00
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
921701033
€ 10.50
92170A
921701118
ref: 92170A
UK
CLAMP
921701118
€ 5.00
92170B
921702042
ref: 92170B
UK
CLAMP
921702042
€ 1.00
