SIDE COVER/CHAIN CASE

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

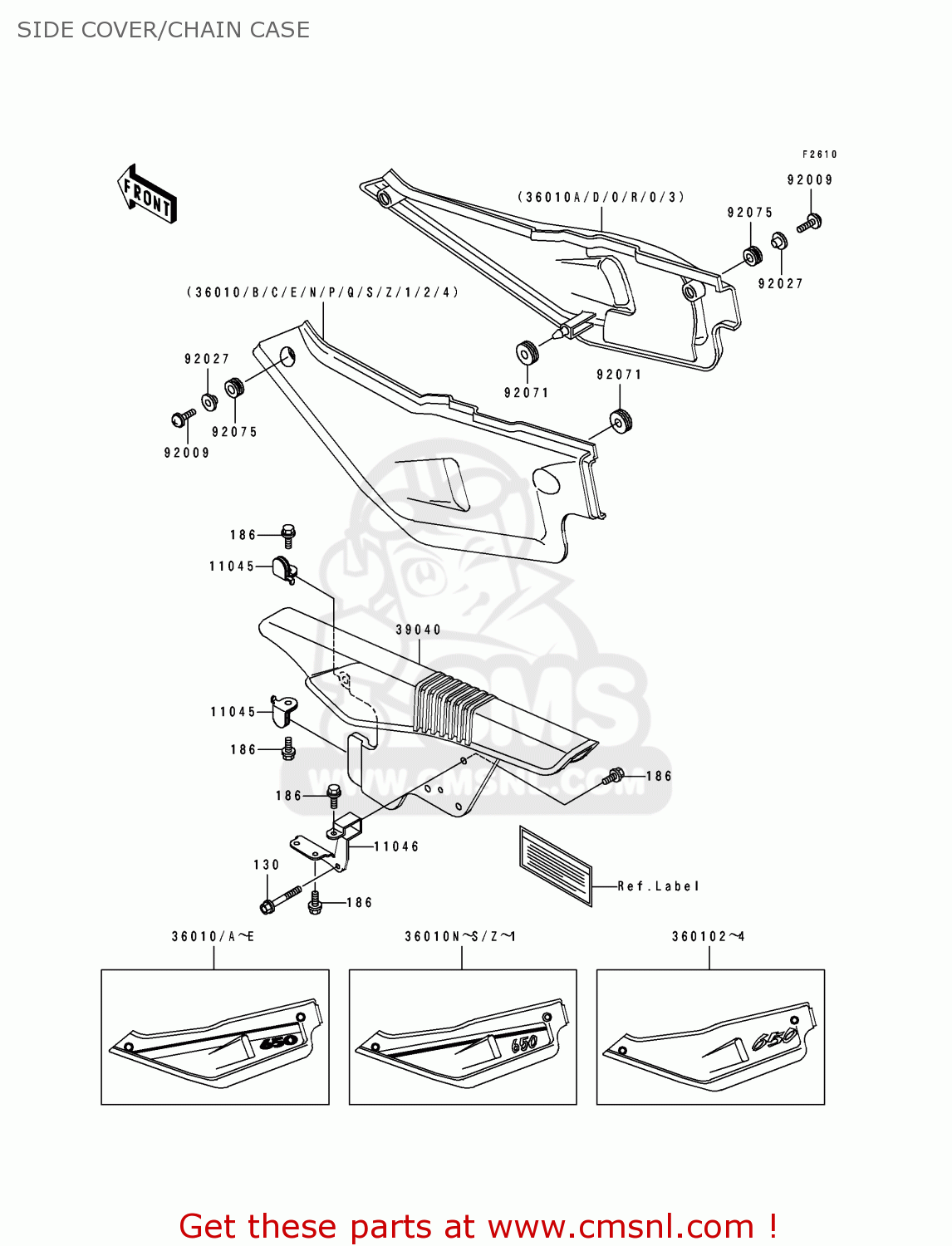

Side cover/chain case diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11045

110451335
ref: 11045

BRACKET,CHAIN CASE,FR

€ 7.00

11046

110461391
ref: 11046

BRACKET,CHAIN CASE,RR

€ 9.00

36010N

360105313R1
ref: 36010N
GRITSPSTUK

COVER-SIDE,LH,P.A.WHI

€ 92.50

36010O

360105314R1
ref: 36010O

COVER-SIDE,RH,P.A.WHI

€ 86.00

36010P

360105315R1
ref: 36010P
AREUFRNRSDWG

COVER-SIDE,LH,P.A.WHI

€ 98.50

36010Q

360105316R1
ref: 36010Q
GRITSTUK

COVER-SIDE,LH,P.A.WHI

€ 92.50

36010R

360105317R1
ref: 36010R
AREUFRGRITNRSDSTUKWG

COVER-SIDE,RH,P.A.WHI

€ 98.50

130

130H0640
ref: 130

BOLT-FLANGED

€ 0.50

186

186C0612
ref: 186

BOLT-UPSET-WP

€ 0.50

36010S

360105318R1
ref: 36010S
AREUFRNRSDWG

COVER-SIDE,LH,P.A.WHI

€ 98.50

39040

390401054
ref: 39040

COVER-ASSY-CHAIN CASE

€ 70.00

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92027

920271795
ref: 92027

COLLAR,L=9.1,WHITE

€ 4.00

92071

92071056
ref: 92071

GROMMET

€ 2.50

92075

920751634
ref: 92075

DAMPER

€ 3.00
