SHOCK ABSORBER

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

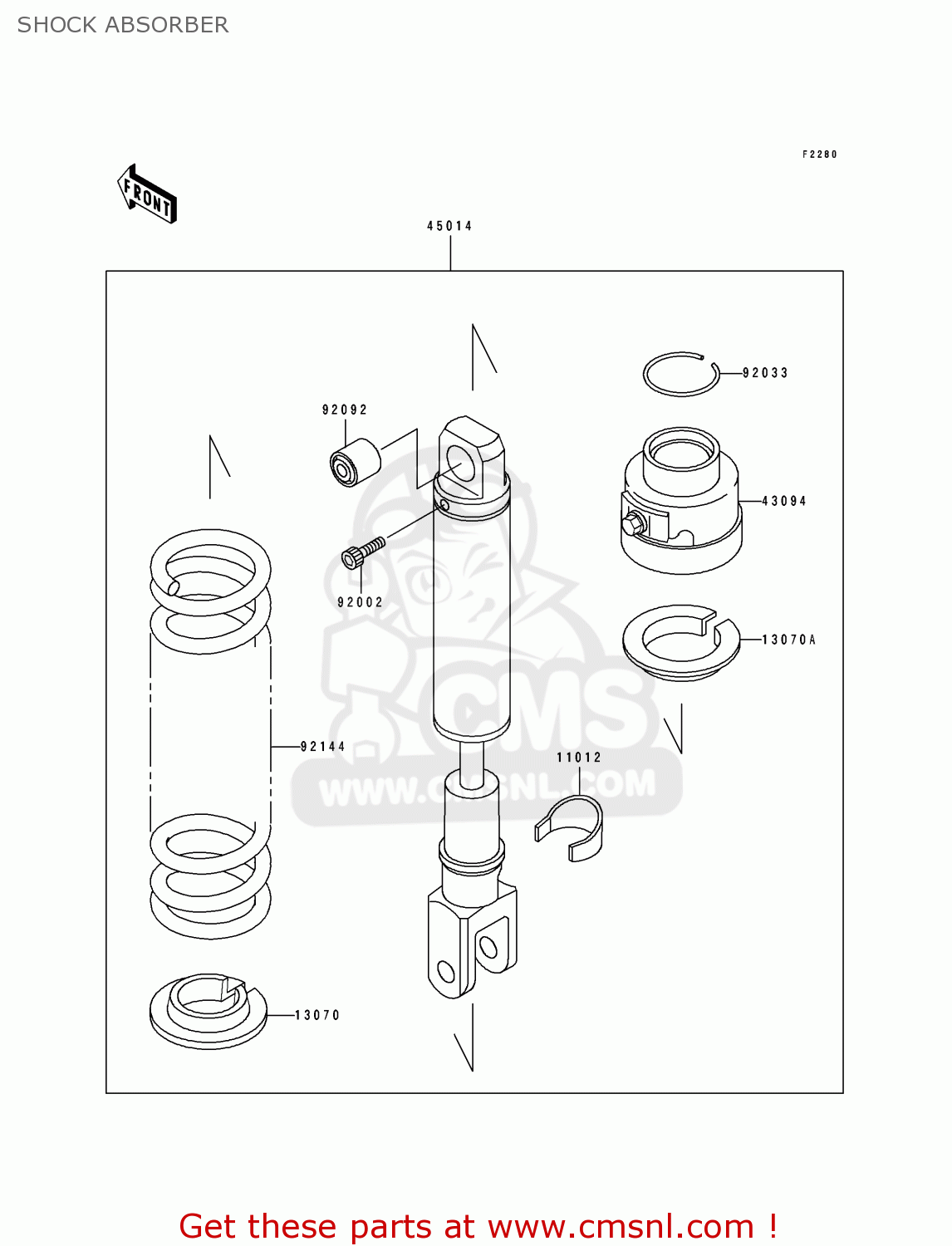

Shock absorber diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11012

110121398
ref: 11012

CAP,SHOCKABSORBER

€ 13.00

13070

130701075
ref: 13070

GUIDE,SPRING

€ 49.50

13070A

130701177
ref: 13070A

GUIDE,SPRING

€ 40.50

43094

430941052
ref: 43094

ADJUSTER,SHOCKABSORBE

€ 459.00

45014

450141422
ref: 45014

SHOCKABSORBER

€ 829.00

92002

920021963
ref: 92002

BOLT,SOCKET,5X8

€ 2.50

92033

920331233
ref: 92033

RING-SNAP

€ 5.50

92092

920921063
ref: 92092

BUSHING-RUBBER

€ 19.00

92144

921441406
ref: 92144

SPRING,SHOCKABSORBER

€ 292.00

all assemblies
