FRONT CALIPER

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

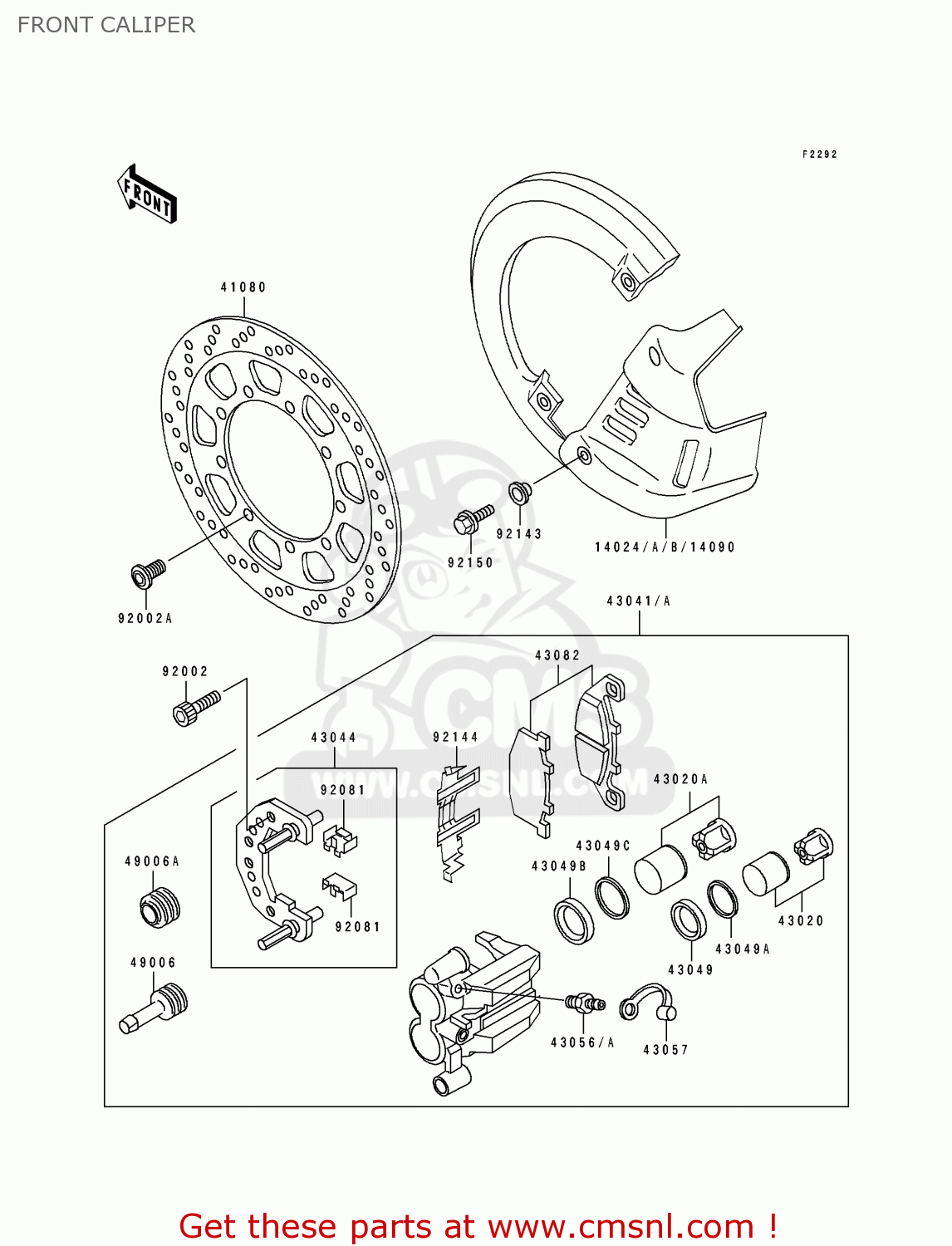

Front caliper diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

FRONT CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
FRONT CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
14024
140241739BV
ref: 14024
COVER,FRONT DISC,BLUE
€ 48.50
14024A
1402417396B
ref: 14024A
AREUFRGRITNRSDSTUKWG
COVER,FRONT DISC,S.RE
1402417396B
€ 41.00
41080
410801237
ref: 41080
DISC,FR
€ 258.50
43020
430201068
ref: 43020
PISTON-COMP-BRAKE
430201068
€ 49.00
43020A
430201069
ref: 43020A
PISTON-COMP-BRAKE
430201069
€ 49.00
43041A
430411376DJ
ref: 43041A
CALIPER-ASSY,FR,LH,BL
€ 449.50
43044
430441067
ref: 43044
HOLDER-COMP-CALIPER
430441067
€ 126.00
43049
430491054
ref: 43049
PACKING,PISTON SEAL (NAS)
430491054
€ 9.00
43049A
430491055
ref: 43049A
PACKING,PISTON (NAS)
430491055
€ 7.50
43049B
430491056
ref: 43049B
PACKING,PISTON SEAL (NAS)
430491056
€ 9.00
43049C
430491057
ref: 43049C
PACKING,PISTON (NAS)
430491057
€ 8.00
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821095
ref: 43082
PAD-ASSY-BRAKE (MCA)
430821095
€ 34.00
49006
490061094
ref: 49006
BOOT,CALIPER
490061094
€ 8.00
49006A
490061095
ref: 49006A
BOOT,CALIPER
490061095
€ 4.50
92002
920021468
ref: 92002
BOLT,FLANGED,10X41
920021468
€ 6.00
92002A
920021878
ref: 92002A
BOLT
920021878
€ 3.00
92081
920811661
ref: 92081
SPRING,PAD STOPPER
920811661
€ 7.50
92143
921431331
ref: 92143
COLLAR
921431331
€ 2.00
92144
921441070
ref: 92144
SPRING,PAD
921441070
€ 18.50
92150
921501235
ref: 92150
BOLT,FLANGED,6X12
921501235
€ 3.50
