REAR CALIPER

KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

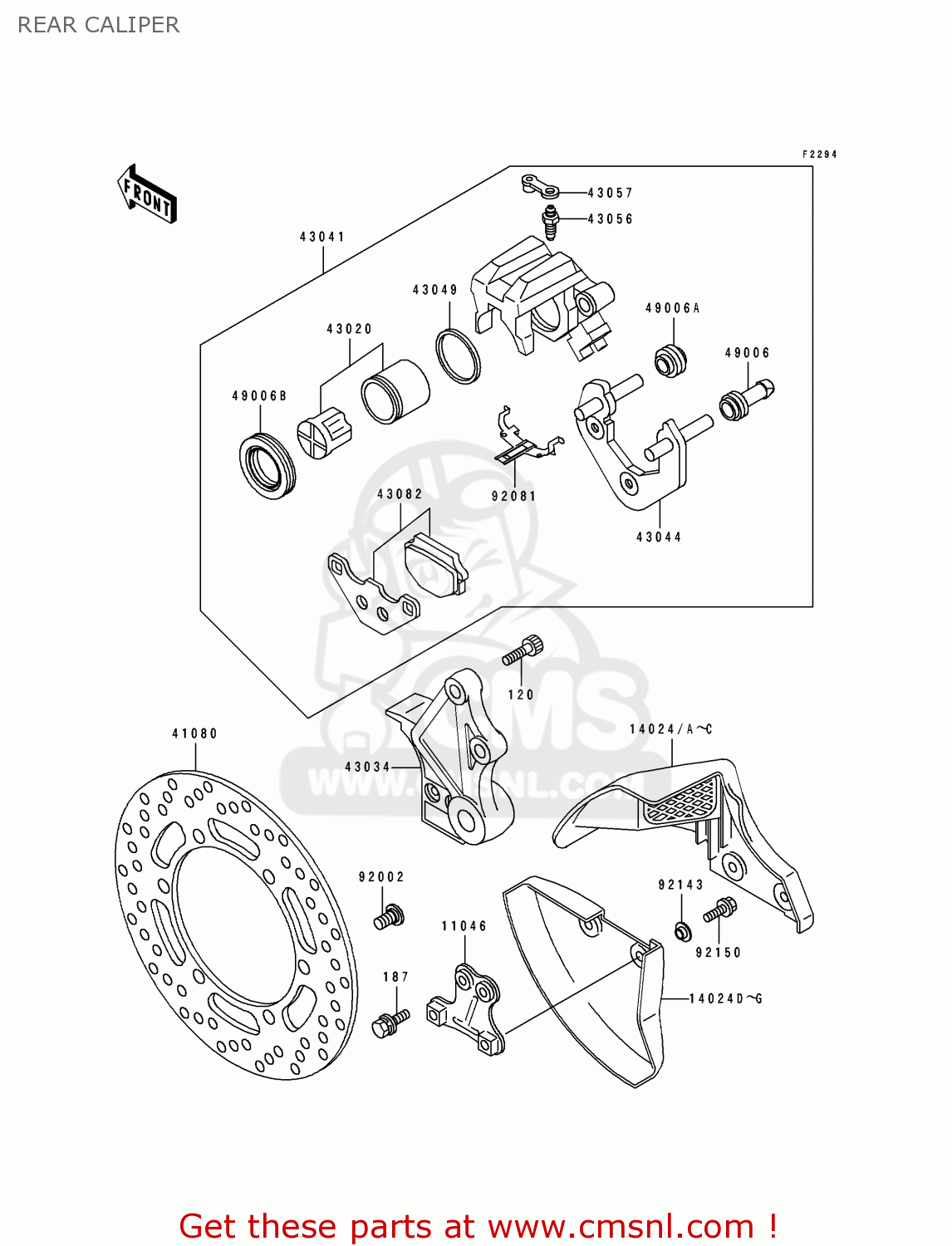

Rear caliper diagram KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST

REAR CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
REAR CALIPER KL650B2 TENGAI 1990 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
120P0816
€ 2.50
187
187H0620
ref: 187
BOLT-UPSET-WSP,6X20
€ 2.00
11046
110461557
ref: 11046
BRACKET,DISC COVER
110461557
€ 13.00
14024
140241758BV
ref: 14024
COVER,REAR DISC,UPP,B
140241758BV
€ 15.50
14024A
1402417586B
ref: 14024A
AREUFRGRITNRSDSTUKWG
COVER,REAR DISC,UPP,S
1402417586B
€ 15.50
14024D
140241759BV
ref: 14024D
COVER,REAR DISC,LWR,B
140241759BV
€ 10.50
14024E
1402417596B
ref: 14024E
AREUFRGRITNRSDSTUKWG
COVER,REAR DISC,LWR,S
1402417596B
€ 19.50
41080
410801238
ref: 41080
DISC,RR
410801238
€ 157.50
43020
430201082
ref: 43020
PISTON-COMP-BRAKE
430201082
€ 49.00
43034
430341094
ref: 43034
HOLDER-BRAKE,REAR CAL
€ 105.00
43041
430411378
ref: 43041
CALIPER-ASSY,RR
€ 397.50
43044
430441075
ref: 43044
HOLDER-COMP-CALIPER,R
430441075
€ 121.50
43049
430491026
ref: 43049
PACKING,PISTON SEAL (NAS)
430491026
€ 9.00
43056
430561054
ref: 43056
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
43057003
€ 3.00
43082
430821096
ref: 43082
PAD-ASSY-BRAKE (NAS)
430821096
€ 42.50
49006
490061054
ref: 49006
BOOT,CALIPER
490061054
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
490061055
€ 4.50
49006B
490061091
ref: 49006B
BOOT,PISTON
490061091
€ 11.00
92002
920021878
ref: 92002
BOLT
920021878
€ 3.00
92081
920811341
ref: 92081
SPRING
920811341
€ 10.00
92143
921431331
ref: 92143
COLLAR
921431331
€ 2.00
92150
921501235
ref: 92150
BOLT,FLANGED,6X12
921501235
€ 3.50
