HANDLEBAR
KL500-B2 TENGAI 1990 AR NR

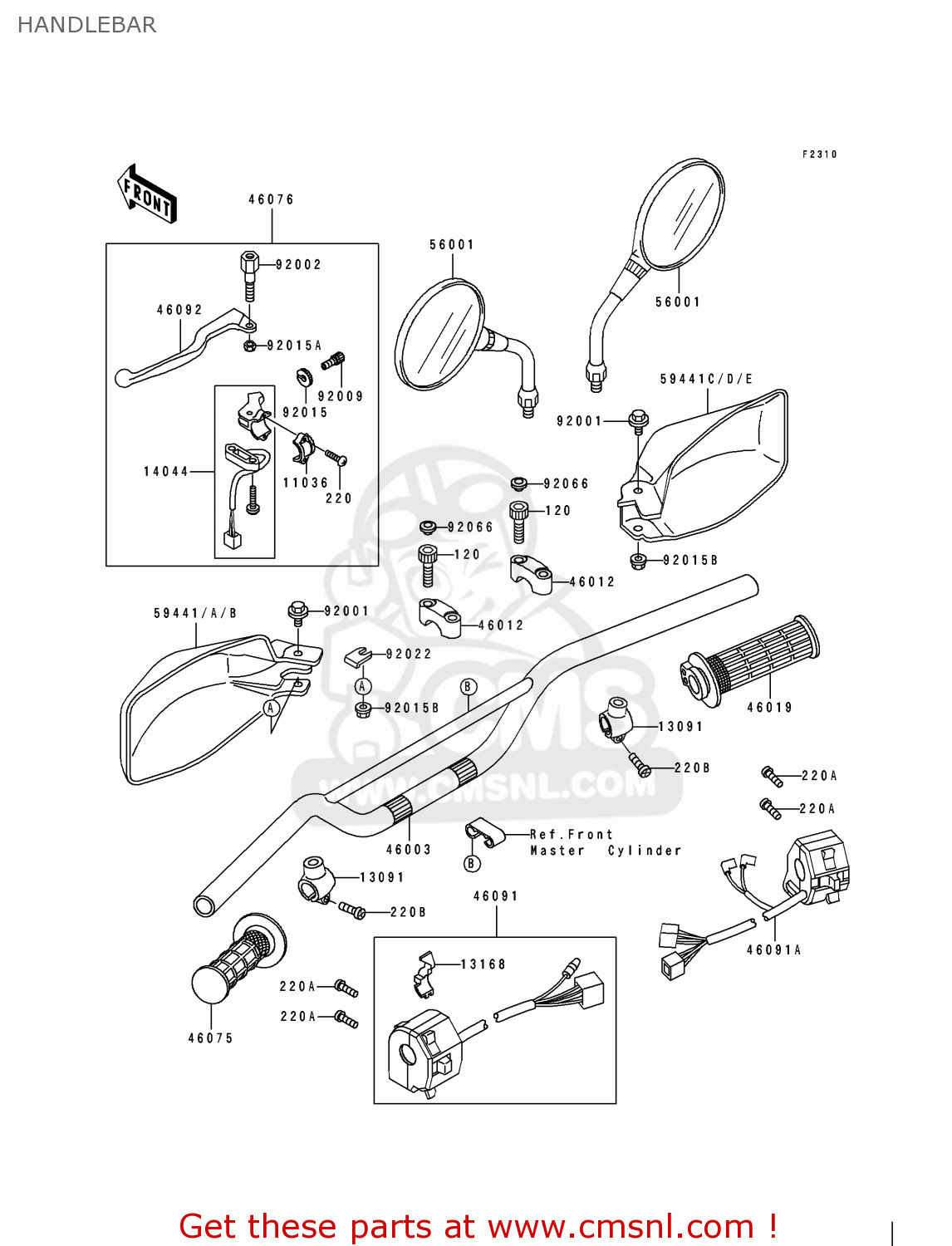

Handlebar diagram KL500-B2 TENGAI 1990 AR NR
HANDLEBAR KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
120
120S0830
ref: 120
BOLT-SOCKET,8X30,BLAC
€ 3.00
220
220C0514
ref: 220
SCREW-PAN-CROS
€ 1.00
220A
220C0520
ref: 220A
SCREW-PAN-CROS
€ 0.50
220B
220C0620
ref: 220B
SCREW-PAN-CROS,6X20,B
€ 1.50
11036
110361297
ref: 11036
BRACKET-A,LEVER HOLDE
€ 12.00
13091
130911255
ref: 13091
HOLDER,ENGINE STOP SW
€ 55.00
13168
131681374
ref: 13168
LEVER,CHOKE
€ 7.00
14044
140441063
ref: 14044
HOLDER-CABLE,CLUTCH
€ 58.00
46003
460031295
ref: 46003
HANDLE
€ 71.00
46012
460121102
ref: 46012
HOLDER-HANDLE,UPP
€ 17.00
46019
460191058
ref: 46019
GRIP-ASSY,THROTTLE
€ 27.00
46075
460751022
ref: 46075
GRIP,LH
€ 8.50
46076
460761160
ref: 46076
LEVER-ASSY-GRIP,CLUTC
€ 55.00
46091
460911501
ref: 46091
HOUSING-ASSY-CONTROL,
€ 157.50
46091A
460911502
ref: 46091A
HOUSING-ASSY-CONTROL,
€ 123.50
46092
460921111
ref: 46092
LEVER-GRIP,CLUTCH
€ 13.00
56001
560011285
ref: 56001
MIRROR-ASSY
€ 43.50
59441
594411092BV
ref: 59441
COVER-HANDLE,LH,BLUE
€ 17.00
59441A
5944110926B
ref: 59441A
COVER-HANDLE,LH,S.RED
€ 16.50
59441C
594411093BV
ref: 59441C
COVER-HANDLE,RH,BLUE
€ 16.00
59441D
5944110936B
ref: 59441D
COVER-HANDLE,RH,S.RED
€ 16.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92002
920021880
ref: 92002
BOLT,LEVER SET
€ 14.50
92009
46055009
ref: 92009
SCREW,CABLE ASJUST
€ 13.00
92015
46056006
ref: 92015
NUT,CABLE ADJUST NUT
€ 6.00
92015A
920151191
ref: 92015A
NUT,LOCK,6MM,BLACK
€ 2.00
92015B
920151603
ref: 92015B
NUT
€ 3.00
92022
920221896
ref: 92022
WASHER
€ 2.50
92066
920661216
ref: 92066
PLUG,HANDLE HOLDER
€ 3.00
