FENDERS
KL500-B2 TENGAI 1990 AR NR

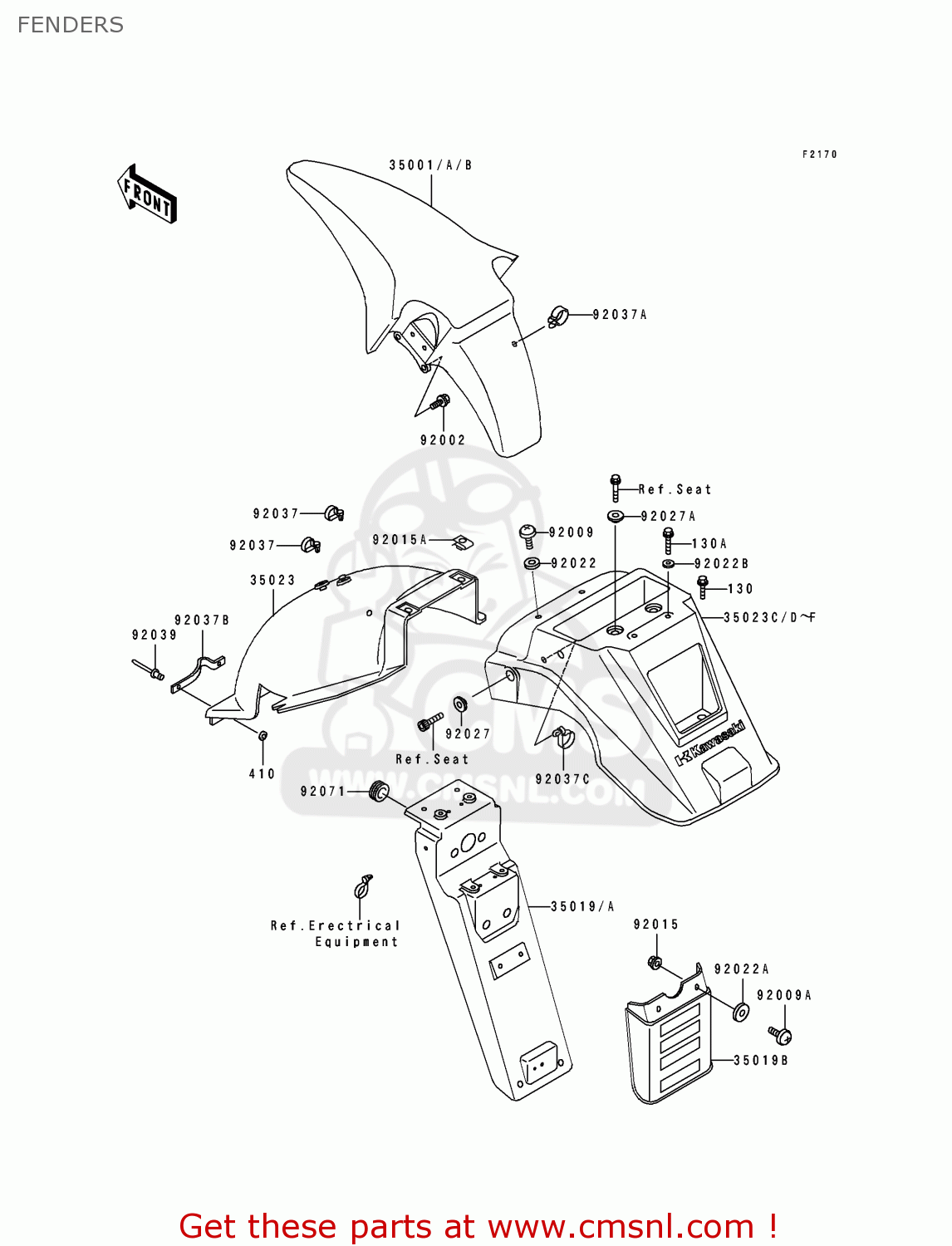

Fenders diagram KL500-B2 TENGAI 1990 AR NR
FENDERS KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
€ 2.50
130A
130D0625
ref: 130A
BOLT-FLANGED
€ 0.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
35001B
350011136R1
ref: 35001B
FENDER-ASSY-FRONT,P.A
€ 113.00
35019
350191187
ref: 35019
AR
FLAP,RR
€ 47.00
35019A
350191191
ref: 35019A
NR
FLAP,RR
€ 43.50
35019B
350191192
ref: 35019B
NR
FLAP,REAR FLAP
€ 13.50
35023
350231181
ref: 35023
FENDER-REAR,FR
€ 47.50
35023E
350235056R1
ref: 35023E
FENDER-REAR,RR,P.A.WH
€ 162.50
35023F
350235057R1
ref: 35023F
FENDER-REAR,RR,P.A.WH
€ 162.50
92002
920021460
ref: 92002
BOLT,6X14
€ 3.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091308
ref: 92009A
NR
SCREW,6X14
€ 2.00
92015
920151367
ref: 92015
NR
NUT,FLANGED,6MM
€ 0.50
92015A
920151602
ref: 92015A
NUT,6MM
€ 4.50
92022
920221143
ref: 92022
WASHER,6.5X16X1
€ 2.50
92022A
92022125
ref: 92022A
NR
WASHER,6.5X20X1.6
€ 1.00
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
€ 2.50
92027
920271745
ref: 92027
COLLAR,FUEL TANK
€ 5.50
92027A
920271794
ref: 92027A
COLLAR
€ 2.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371827
ref: 92037A
CLAMP,HOSE
€ 5.00
92037B
920371901
ref: 92037B
CLAMP
€ 7.00
92037C
920371903
ref: 92037C
CLAMP
€ 5.00
92039
920391038
ref: 92039
RIVET
€ 2.00
92071
920711027
ref: 92071
GROMMET,AIR CLEANER
€ 3.00
