CYLINDER/PISTON(S)
KL500-B2 TENGAI 1990 AR NR

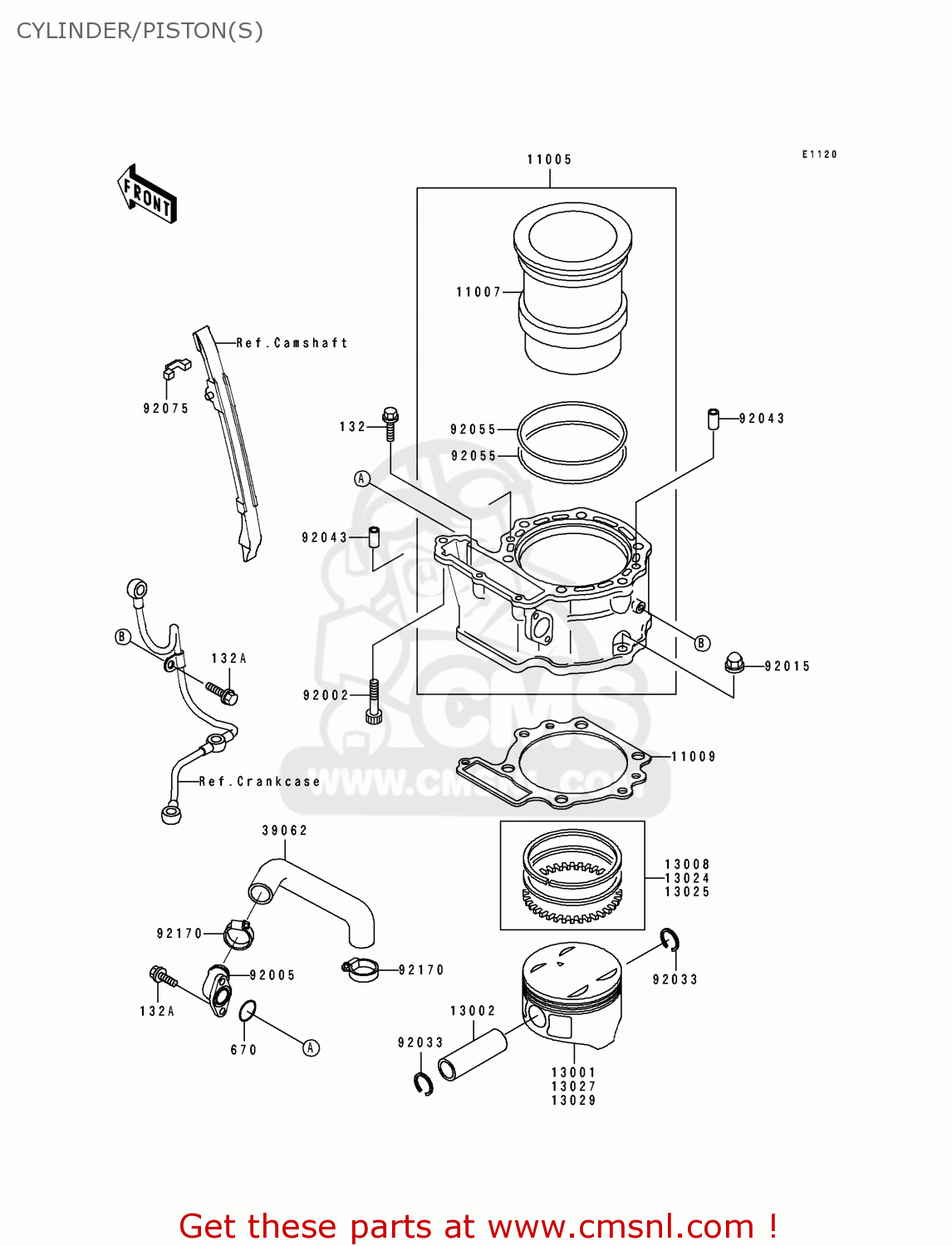

Cylinder/piston(s) diagram KL500-B2 TENGAI 1990 AR NR
CYLINDER/PISTON(S) KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
132
132G0625
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
670
670B2018
ref: 670
O RING,18MM
€ 1.00
11005
110051590
ref: 11005
CYLINDER-ENGINE
€ 558.50
11007
110071094
ref: 11007
LINER-CYLINDER
€ 146.00
11009
110091631
ref: 11009
GASKET,CYLINDER BASE (MCA)
€ 9.00
13001
130011285
ref: 13001
PISTON-ENGINE,STD
€ 113.00
13002
130021069
ref: 13002
PIN-PISTON
€ 22.00
13008
130081082
ref: 13008
RING-SET-PISTON,STD
€ 65.00
13024
130241076
ref: 13024
RING-SET-PISTON LL,O/
€ 73.50
13025
130251088
ref: 13025
RING-SET-PISTON L,O/S
€ 67.00
13027
130271156
ref: 13027
PISTON-ENGINE LL,O/S
€ 122.00
13029
130291179
ref: 13029
PISTON-ENGINE L,O/S 0
€ 52.00
39062
390621216
ref: 39062
HOSE-COOLING,PUMP-CYL
€ 16.00
92002
920021409
ref: 92002
BOLT,8X35
€ 3.50
92005
920051122
ref: 92005
FITTING
€ 14.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
€ 3.00
92033
920331226
ref: 92033
RING-SNAP
€ 2.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92055
920551368
ref: 92055
RING-O
€ 11.00
92075
920751968
ref: 92075
DAMPER
€ 3.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
