COWLING
KL500-B2 TENGAI 1990 AR NR

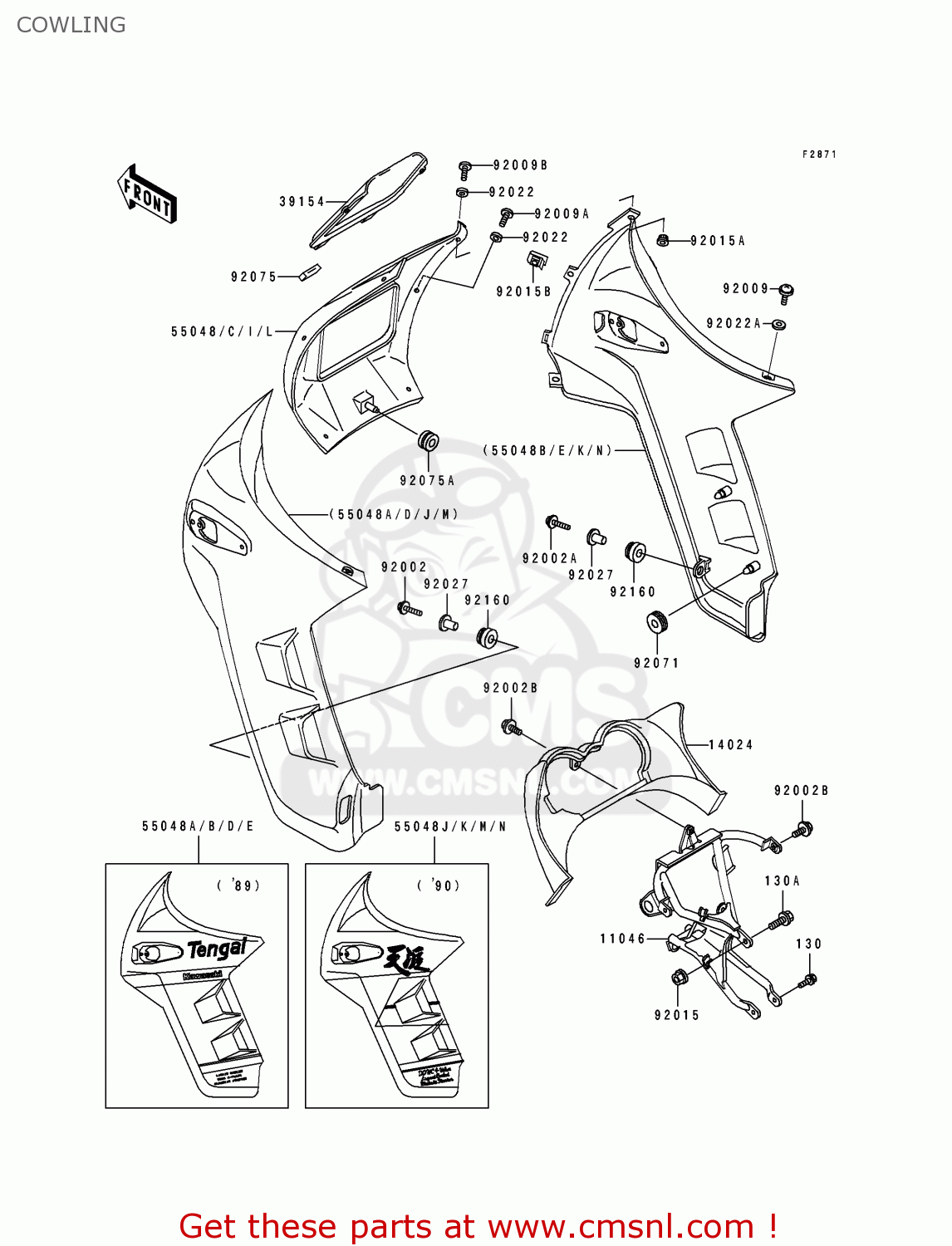

Cowling diagram KL500-B2 TENGAI 1990 AR NR
COWLING KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
130
130J0614
ref: 130
BOLT-FLANGED,6X14,BLA
€ 1.50
130A
130J0816
ref: 130A
BOLT-FLANGED,8X16,BLA
€ 0.50
11046
110461503
ref: 11046
BRACKET,COWLING
€ 102.50
14024
140241757
ref: 14024
COVER,INNER
€ 25.00
39154
391541086
ref: 39154
WINDSHIELD
€ 71.00
55048I
550485375DB
ref: 55048I
COWLING.,UPP,BLUE 24
€ 101.00
55048J
550485376GL
ref: 55048J
COWLING.,SIDE,LH,BLUE
€ 419.00
55048K
550485377GL
ref: 55048K
COWLING.,SIDE,RH,BLUE
€ 346.00
55048L
550485378H1
ref: 55048L
COWLING.,UPP,S.RED
€ 95.50
55048M
550485379W2
ref: 55048M
COWLING.,SIDE,LH,RED/
€ 366.50
55048N
550485380W2
ref: 55048N
COWLING.,SIDE,RH,RED/
€ 354.00
92002
920021462
ref: 92002
BOLT,6X25
€ 3.00
92002A
920021590
ref: 92002A
BOLT,6X30
€ 2.50
92002B
920021749
ref: 92002B
BOLT,5X12
€ 1.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92009A
920091301
ref: 92009A
SCREW,5X16
€ 0.50
92009B
920091383
ref: 92009B
SCREW,5X14
€ 2.50
92015
920151183
ref: 92015
NUT,FLANGED,8MM,BLACK
€ 1.00
92015A
920151352
ref: 92015A
NUT,COWLING,5MM
€ 3.00
92015B
920151710
ref: 92015B
NUT
€ 4.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92022A
920221654
ref: 92022A
WASHER,6.5X16X1.0
€ 2.50
92027
920271183
ref: 92027
COLLAR,6.5X10X14.1
€ 3.50
92071
92071056
ref: 92071
GROMMET
€ 2.50
92075
920751423
ref: 92075
DAMPER,CARBURETOR
€ 2.00
92075A
920751901
ref: 92075A
DAMPER
€ 2.00
92160
921601164
ref: 92160
DAMPER
€ 3.00
