BALANCER
KL500-B2 TENGAI 1990 AR NR

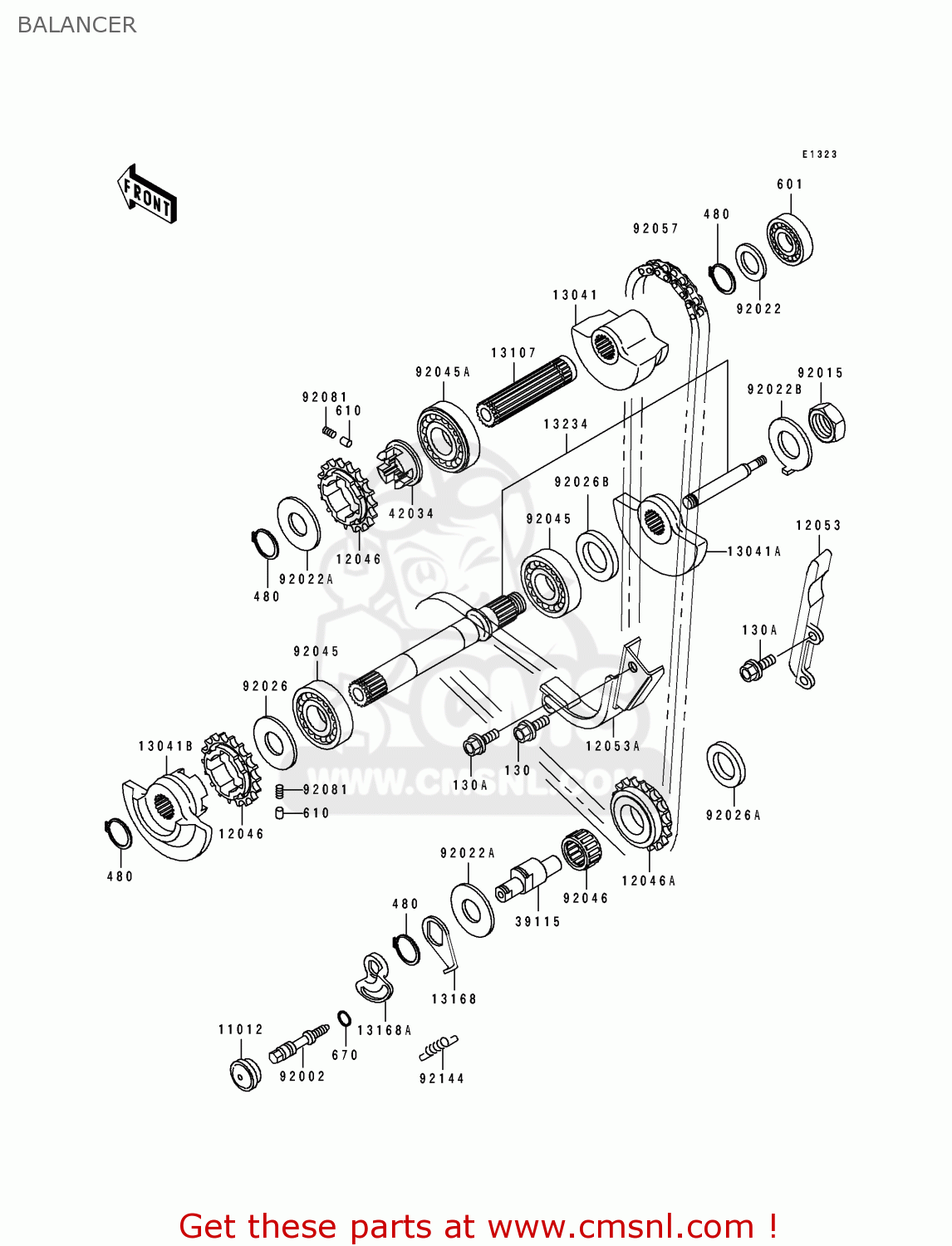

Balancer diagram KL500-B2 TENGAI 1990 AR NR
BALANCER KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
130
130G0820
ref: 130
BOLT,FLANGED,8X20
€ 0.50
130A
130P0616
ref: 130A
BOLT-FLANGED
€ 1.00
480
480J2000
ref: 480
CIRCLIP-TYPE-C,20MM
€ 1.00
601
601A6004
ref: 601
BEARING-BALL,#6004
€ 13.00
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
670
670B1507
ref: 670
O RING,7MM
€ 1.00
11012
110121369
ref: 11012
CAP
€ 3.50
12046
120461053
ref: 12046
SPROCKET,BALANCER,18T
€ 51.00
12046A
120461114
ref: 12046A
SPROCKET,IDLER
€ 60.00
12053
120531111
ref: 12053
GUIDE-CHAIN,RR
€ 28.50
12053A
120531175
ref: 12053A
GUIDE-CHAIN
€ 43.50
13041
130411053
ref: 13041
BALANCER,RR
€ 104.50
13041A
130411060
ref: 13041A
BALANCER,FR,RH
€ 83.00
13041B
130411078
ref: 13041B
BALANCER,FR,LH
€ 107.00
13107
131071104
ref: 13107
SHAFT,BALANCER,RR
€ 59.00
13168
131681238
ref: 13168
LEVER
€ 7.00
13168A
131681436
ref: 13168A
LEVER,IDLER SHAFT
€ 9.50
13234
132341058
ref: 13234
SHAFT-COMP,BALANCER,F
€ 121.50
39115
391151054
ref: 39115
SHAFT-IDLER
€ 34.00
42034
420341053
ref: 42034
COUPLING,BALANCER
€ 25.00
92002
920011857
ref: 92002
BOLT,IDLER LEVER
€ 11.50
92015
920151477
ref: 92015
NUT,16MM
€ 5.50
92022
92022112
ref: 92022
WASHER,20.5X30X1,STEE
€ 6.00
92022A
920221489
ref: 92022A
WASHER,20.3X36X1.5
€ 4.00
92022B
920221651
ref: 92022B
WASHER
€ 3.50
92026
920261208
ref: 92026
SPACER,20.2X36X3
€ 8.00
92026A
920261211
ref: 92026A
SPACER,12.2X25X4.3
€ 5.50
92026B
920261245
ref: 92026B
SPACER,20.2X30X5
€ 10.50
92045
920451032
ref: 92045
BEARING-BALL,#6204
€ 25.50
92045A
920451188
ref: 92045A
BEARING-BALL,SX0415
€ 27.00
92046
920461127
ref: 92046
BEARING-NEEDLE,20X24X
€ 18.00
92057
920571158
ref: 92057
CHAIN,BALANCER,BF06HX
€ 109.50
92081
92081135
ref: 92081
SPRING,BALANCER
€ 3.00
92144
921441445
ref: 92144
SPRING,IDLER SHAFT
€ 4.00
