FRAME
KL500-B2 TENGAI 1990 AR NR

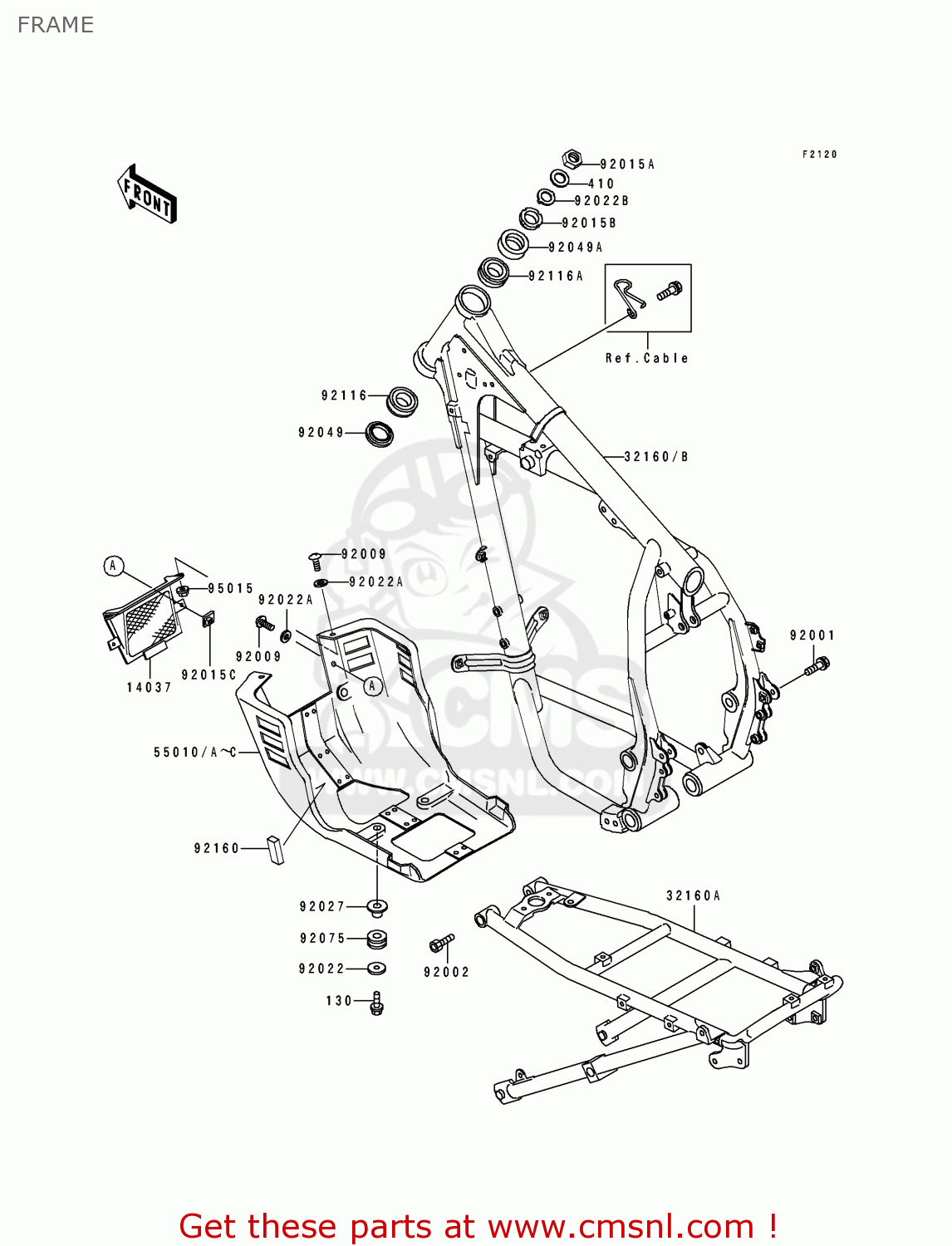

Frame diagram KL500-B2 TENGAI 1990 AR NR
FRAME KL500-B2 TENGAI 1990 AR NR
×
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
€ 2.00
410
410F1800
ref: 410
W-PLAIN-S
€ 3.00
14037
1403711176Z
ref: 14037
SCREEN,ENGINE GUARD,B
€ 16.00
32160
321601028EC
ref: 32160
AR
FRAME-COMP,FR,GRAY
€ 811.50
32160A
321601029EC
ref: 32160A
FRAME-COMP,RR,GRAY
€ 539.50
32160B
321601030EC
ref: 32160B
NR
FRAME-COMP,FR,GRAY
€ 811.50
55010A
550101052H1
ref: 55010A
GUARD-ASSY,ENGINE,S.R
€ 373.00
55010B
550101052R1
ref: 55010B
GUARD-ASSY,ENGINE,P.A
€ 355.00
92001
920011508
ref: 92001
BOLT,FLANGED,8X28,BLA
€ 3.00
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
€ 3.00
92009
920091383
ref: 92009
SCREW,5X14
€ 2.50
92015
920151328
ref: 92015
NUT,FLANGED,5MM
€ 2.00
92015A
920151404
ref: 92015A
NUT,18MM
€ 15.50
92015B
920151546
ref: 92015B
NUT,25MM,T=12
€ 14.50
92015C
920151710
ref: 92015C
NUT
€ 4.00
92022
920221160
ref: 92022
WASHER,7X24X1.6
€ 2.50
92022A
920221521
ref: 92022A
WASHER,NYLON,5.3X11.5
€ 2.50
92022B
920221555
ref: 92022B
WASHER,CLAW,18.5X30X2
€ 4.50
92027
920271450
ref: 92027
COLLAR,L=13.1,BLACK
€ 4.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92049A
920491214
ref: 92049A
SEAL-OIL,STEERING STE
€ 11.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161052
ref: 92116A
BEARING-ROLLER,25X47X
€ 41.00
92160
921601183
ref: 92160
DAMPER
€ 2.50
