STAND(S)

KL500-A1 KLR500 1987 NORWAY AR

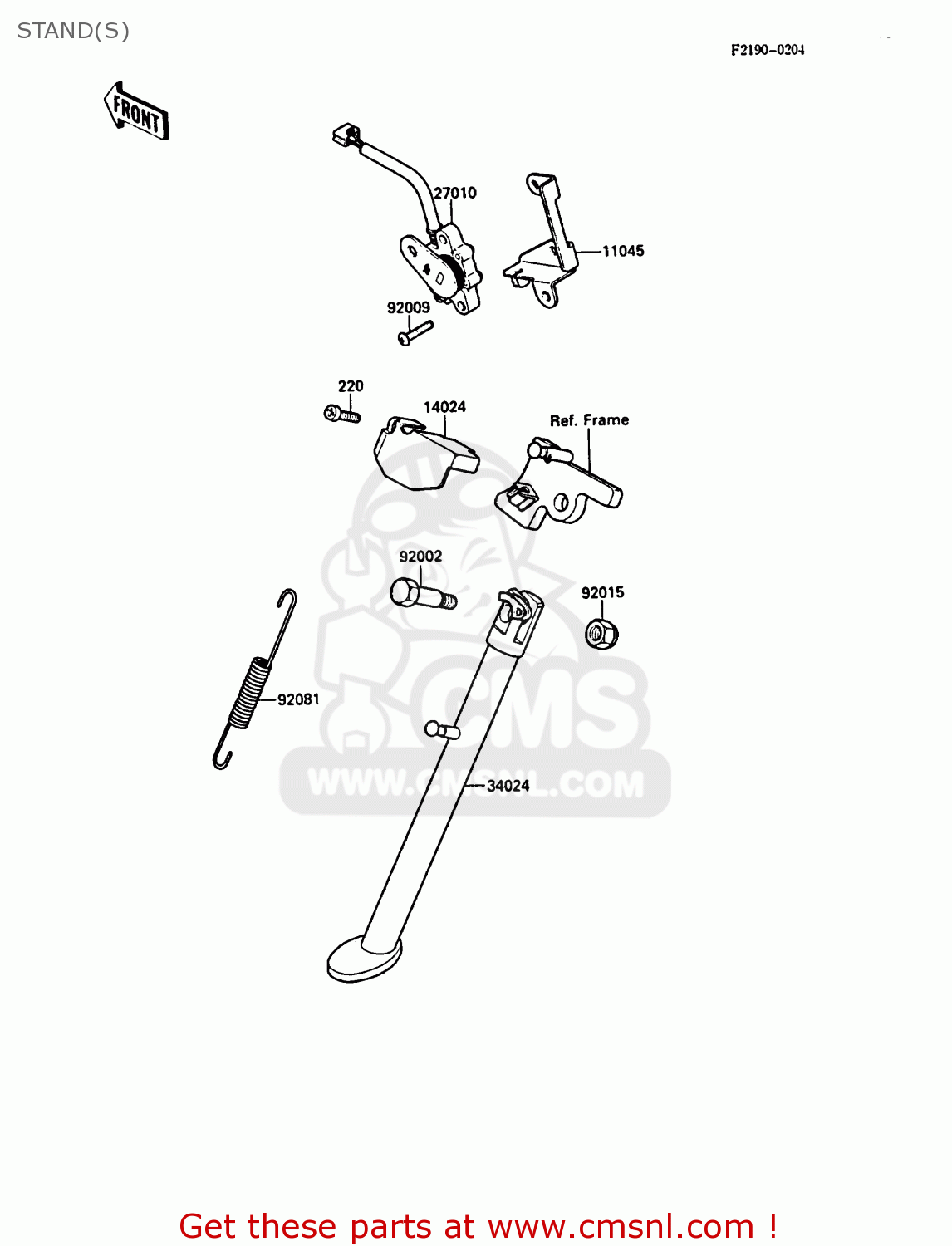

Stand(s) diagram KL500-A1 KLR500 1987 NORWAY AR

STAND(S) KL500-A1 KLR500 1987 NORWAY AR

STAND(S) KL500-A1 KLR500 1987 NORWAY AR

prices are in EUR

ref

part #

description

quantity

220

220C0516
ref: 220

SCREW-PAN-CROS

€ 0.50

11045

110451364
ref: 11045

BRACKET,SIDE STAND SW

€ 17.00

14024

140241474
ref: 14024

COVER,SIDE STAND

€ 5.50

27010

270101257
ref: 27010

SWITCH,SIDE STAND

€ 109.00

34024

340241221
ref: 34024

STAND-SIDE

€ 60.50

92002

920021935
ref: 92002

BOLT,SIDE STAND

€ 10.50

92009

920091302
ref: 92009

SCREW,5X25

€ 2.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92081

920811376
ref: 92081

SPRING,SIDE STAND

€ 9.50
