FENDERS
KL500-A1 KLR500 1987 NORWAY AR

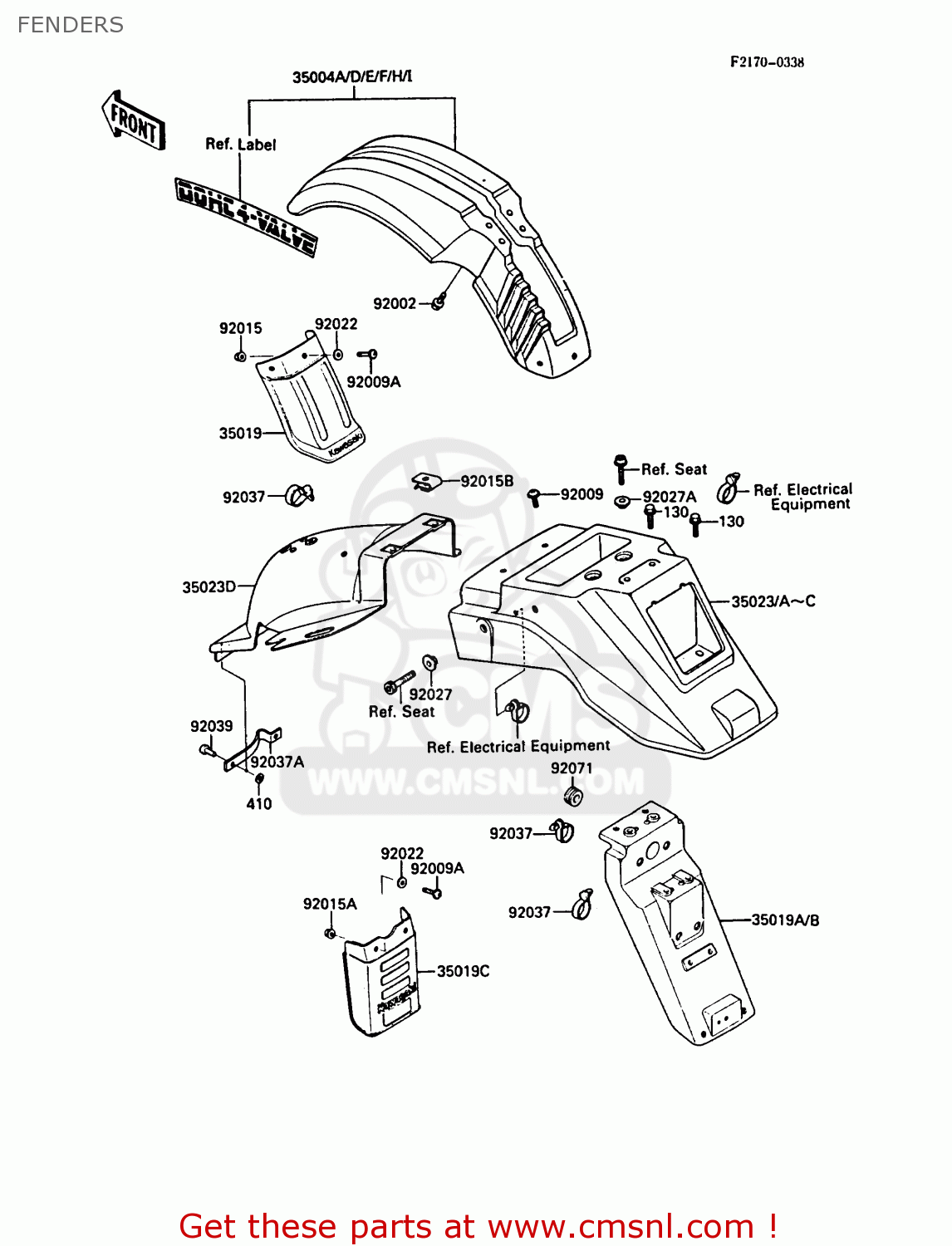

Fenders diagram KL500-A1 KLR500 1987 NORWAY AR
FENDERS KL500-A1 KLR500 1987 NORWAY AR
×
prices are in EUR
ref
part #
description
quantity
35004A
3500450636F
ref: 35004A
NR
FENDER-FRONT,P.WHITE
€ 71.00
35004D
3500450666F
ref: 35004D
AR
FENDER-FRONT,P.WHITE
€ 59.50
35004E
3500450676B
ref: 35004E
AR
FENDER-FRONT,S.RED
€ 102.00
35004F
3500450686K
ref: 35004F
AR
FENDER-FRONT,B.BLUE
€ 56.00
35019
350191002
ref: 35019
NR
FLAP,FENDER,FR
€ 11.50
35019A
350191187
ref: 35019A
AR
FLAP,RR
€ 47.00
35019B
350191191
ref: 35019B
NR
FLAP,RR
€ 43.50
35019C
350191192
ref: 35019C
NR
FLAP,REAR FLAP
€ 13.50
35023
3502311806B
ref: 35023
AR
FENDER-REAR,RR,S.RED
€ 56.00
35023B
3502311806F
ref: 35023B
FENDER-REAR,RR,P.WHIT
€ 59.50
35023C
3502311806K
ref: 35023C
AR
FENDER-REAR,RR,B.BLUE
€ 61.50
35023D
350231181
ref: 35023D
FENDER-REAR,FR
€ 47.50
92002
920021187
ref: 92002
BOLT,6X16
€ 2.50
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92009A
920091308
ref: 92009A
NR
SCREW,6X14
€ 2.00
92015
920151193
ref: 92015
NR
NUT,FLANGED,6MM
€ 0.50
92015A
920151367
ref: 92015A
NR
NUT,FLANGED,6MM
€ 0.50
130
130B0620
ref: 130
BOLT,HEX HEAD,6X20
€ 2.50
410
410B0400
ref: 410
WASHER-PLAIN-SMALL,4M
€ 0.50
92015B
920151602
ref: 92015B
NUT,6MM
€ 4.50
92022
92022125
ref: 92022
NR
WASHER,6.5X20X1.6
€ 1.00
92027
920271745
ref: 92027
COLLAR,FUEL TANK
€ 5.50
92027A
920271794
ref: 92027A
COLLAR
€ 2.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
€ 4.50
92037A
920371901
ref: 92037A
CLAMP
€ 7.00
92039
920391038
ref: 92039
RIVET
€ 2.00
92071
920711027
ref: 92071
GROMMET,AIR CLEANER
€ 3.00
