FRAME FITTINGS
KL500-A1 KLR500 1987 NORWAY AR

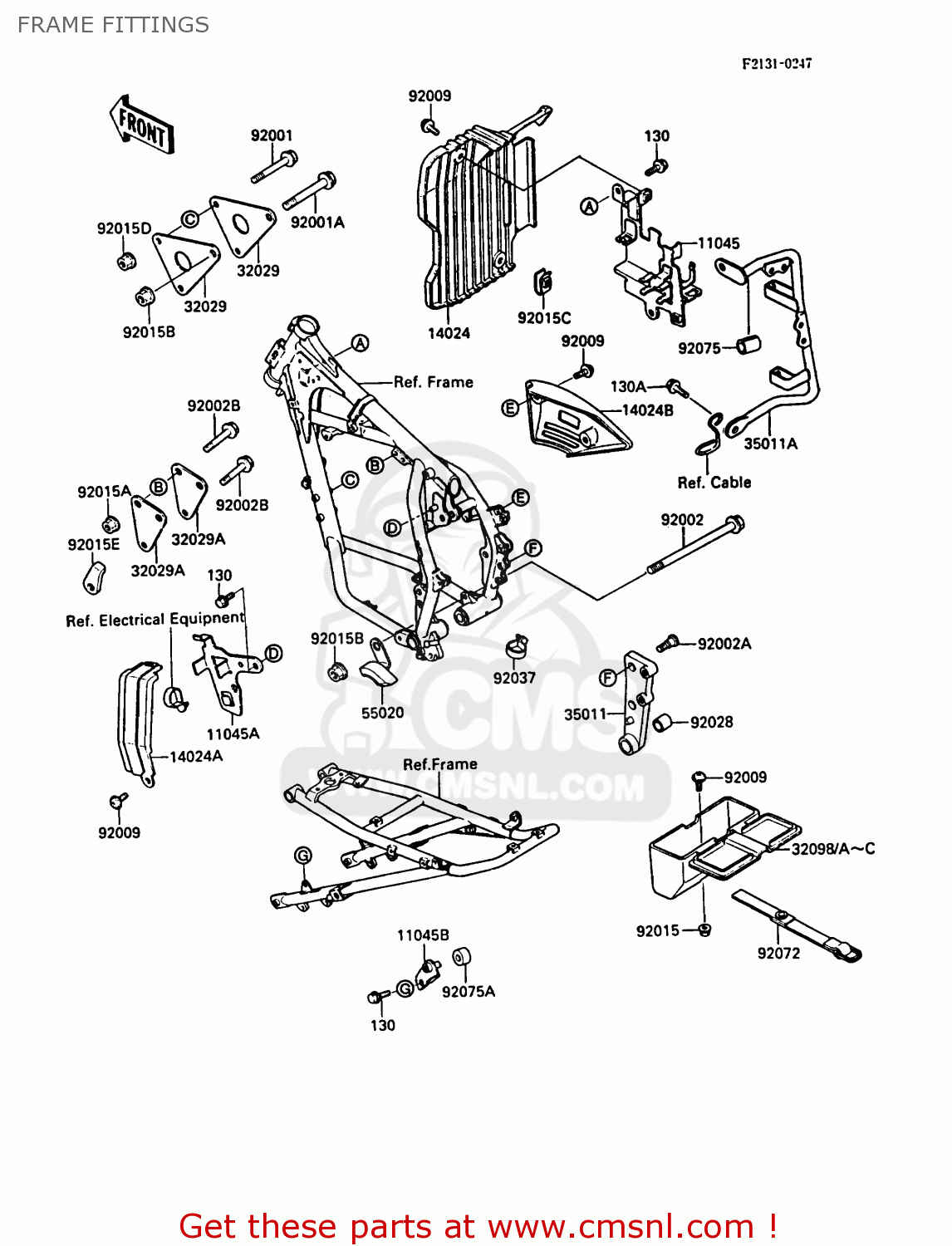

Frame fittings diagram KL500-A1 KLR500 1987 NORWAY AR
FRAME FITTINGS KL500-A1 KLR500 1987 NORWAY AR
×
prices are in EUR
ref
part #
description
quantity
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
130A
130J0614
ref: 130A
BOLT-FLANGED,6X14,BLA
€ 1.50
11045
110451358
ref: 11045
BRACKET,ELECTRIC,RH
€ 40.50
11045A
110451359
ref: 11045A
BRACKET,ELECTRIC,LH
€ 10.50
11045B
110451360
ref: 11045B
BRACKET
€ 18.00
14024
140241372
ref: 14024
COVER,FRONT RESERVOIR
€ 52.50
14024A
140241373
ref: 14024A
COVER,SIDE STAND SWIT
€ 27.00
14024B
140241470
ref: 14024B
COVER,RESERVOIR TANK
€ 9.50
32029
320291516
ref: 32029
BRACKET-ENGINE,FR
€ 9.00
32029A
320291567
ref: 32029A
BRACKET-ENGINE
€ 11.50
32098
3209810746B
ref: 32098
AR
CASE-TOOL,S.RED
€ 26.50
32098B
3209810746F
ref: 32098B
CASE-TOOL,P.WHITE
€ 34.50
32098C
3209810746K
ref: 32098C
AR
CASE-TOOL,B.BLUE
€ 26.50
35011
350111327
ref: 35011
STAY
€ 48.50
35011A
350111370
ref: 35011A
STAY,HORN&RESERVOIR T
€ 52.50
55020
550201266
ref: 55020
GUARD,CHAIN
€ 30.50
92001
920011583
ref: 92001
BOLT,FLANGED,8X70
€ 6.00
92001A
920014021
ref: 92001A
BOLT,10X75
€ 6.00
92002
920021348
ref: 92002
BOLT,10X145
€ 13.00
92002A
920021598
ref: 92002A
BOLT,SOCKET,8X23.5
€ 4.00
92002B
920021997
ref: 92002B
BOLT,FLANGED,8X42
€ 2.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151237
ref: 92015
NUT,FLANGED,6MM,BLACK
€ 3.50
92015A
920151406
ref: 92015A
NUT,8MM
€ 3.00
92015B
920151415
ref: 92015B
NUT,10MM
€ 3.00
92015C
920151602
ref: 92015C
NUT,6MM
€ 4.50
92015D
920151668
ref: 92015D
NUT
€ 3.00
92015E
920151673
ref: 92015E
NUT,PLATE,8MM
€ 6.00
92028
920281259
ref: 92028
BUSHING
€ 10.00
92037
920371903
ref: 92037
CLAMP
€ 5.00
92072
920721219
ref: 92072
BAND,TOL CASE
€ 15.00
92075
920751941
ref: 92075
DAMPER
€ 4.00
92075A
92075243
ref: 92075A
DAMPER RUBBER
€ 4.50
