FUEL TANK
KL500-A1 KLR500 1987 NORWAY AR

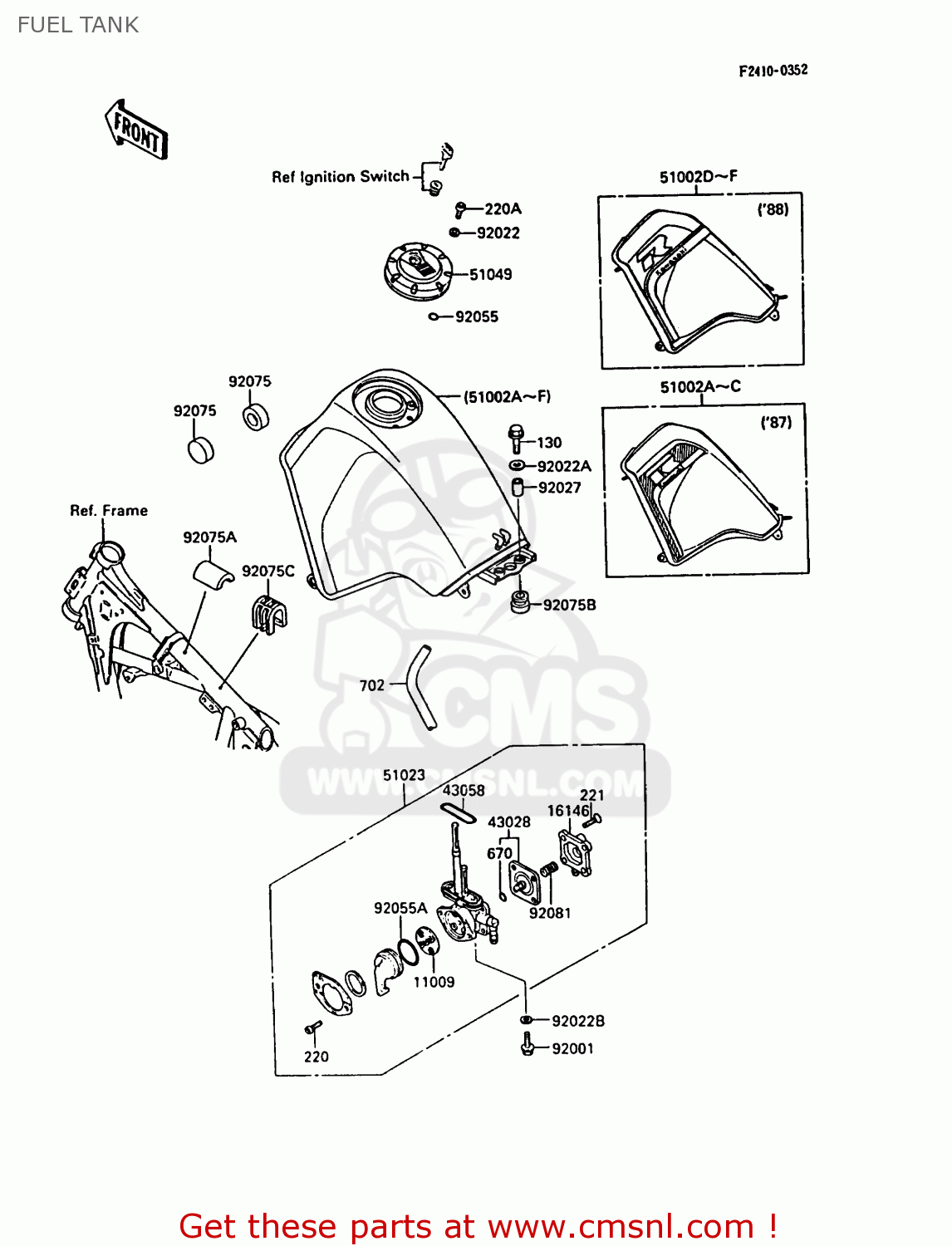

Fuel tank diagram KL500-A1 KLR500 1987 NORWAY AR
FUEL TANK KL500-A1 KLR500 1987 NORWAY AR
×
prices are in EUR
ref
part #
description
quantity
130
130C0630
ref: 130
BOLT-FLANGED
€ 2.50
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A05620
ref: 702
TUBE-RUBBER,5X8X620
€ 50.00
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
€ 4.00
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
43058
51039003
ref: 43058
'O' RING
€ 4.00
51002A
510025302F1
ref: 51002A
TANK-COMP-FUEL,P.WHIT
€ 645.00
51002B
510025303H1
ref: 51002B
AR
TANK-COMP-FUEL,S.RED
€ 469.50
51002C
510025304C9
ref: 51002C
AR
TANK-COMP-FUEL,B.BLUE
€ 585.00
51023
510231135
ref: 51023
TAP-ASSY,FUEL
€ 87.00
51049
510491077
ref: 51049
CAP-TANK,FUEL
€ 89.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
920221038
ref: 92022
WASHER,PLAIN
€ 2.50
92022A
92022125
ref: 92022A
WASHER,6.5X20X1.6
€ 1.00
92022B
92022183
ref: 92022B
WASHER,6.2X11X1.5
€ 2.50
92027
920271856
ref: 92027
COLLAR,6.8X10X22
€ 4.00
92055
920551023
ref: 92055
ORING
€ 2.50
92055A
920551085
ref: 92055A
'O' RING,FUEL TAP LEV
€ 3.00
92075
92075101
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751507
ref: 92075A
DAMPER
€ 7.00
92075B
920751660
ref: 92075B
DAMPER
€ 5.50
92075C
920751862
ref: 92075C
DAMPER,FUEL TANK
€ 10.50
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
