CYLINDER HEAD
KL500-A1 KLR500 1987 NORWAY AR

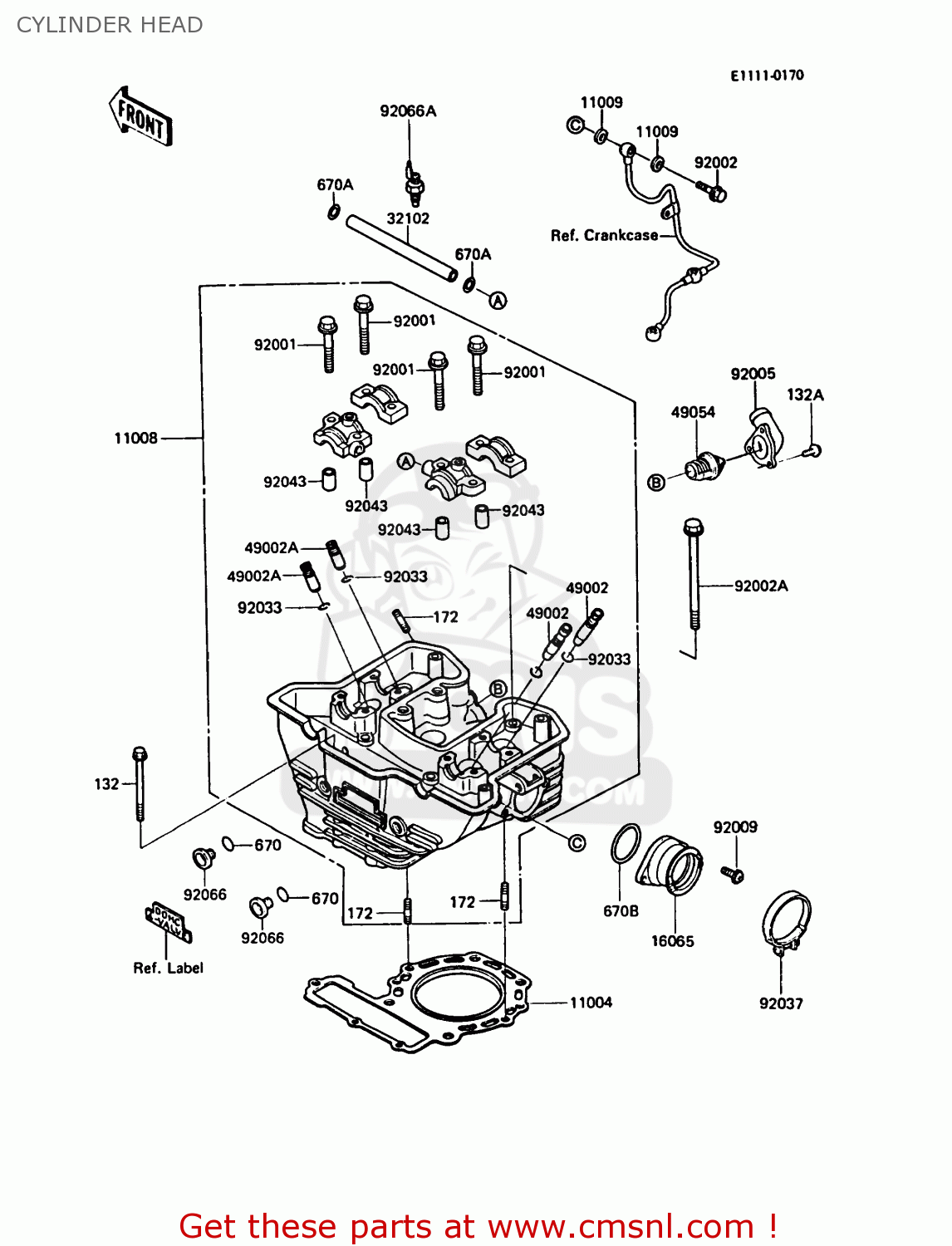

Cylinder head diagram KL500-A1 KLR500 1987 NORWAY AR
CYLINDER HEAD KL500-A1 KLR500 1987 NORWAY AR
×
prices are in EUR
ref
part #
description
quantity
132
132H0685
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0612
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
172
172G0822
ref: 172
BOLT-STUD,8X22
€ 1.50
670
670B2015
ref: 670
O RING,15MM
€ 1.00
670A
670D1506
ref: 670A
O RING,6MM
€ 1.00
670B
670D3048
ref: 670B
O RING,48MM
€ 4.50
11004
110041158
ref: 11004
GASKET-HEAD (NAS)
€ 36.00
11008
110081203
ref: 11008
HEAD-COMP-CYLINDER
€ 782.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
€ 4.00
16065
160651151
ref: 16065
HOLDER-CARBURETOR
€ 24.50
32102
321021352
ref: 32102
PIPE,OIL LINE
€ 4.00
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
49054
490541053
ref: 49054
THERMOSTAT
€ 39.50
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
€ 3.00
92002
920021170
ref: 92002
BOLT,BANJO,10X25
€ 6.50
92002A
920021874
ref: 92002A
BOLT,10X191
€ 15.00
92005
920051121
ref: 92005
FITTING
€ 25.00
92009
920091325
ref: 92009
SCREW,6X20
€ 2.50
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
920371486
ref: 92037
CLAMP,55MM
€ 5.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92066
920661158
ref: 92066
PLUG,CYLINDER HEAD
€ 4.00
92066A
920661183
ref: 92066A
PLUG,SENSOR WATER
€ 38.00
