COWLING
KL500-A1 KLR500 1987 NORWAY AR

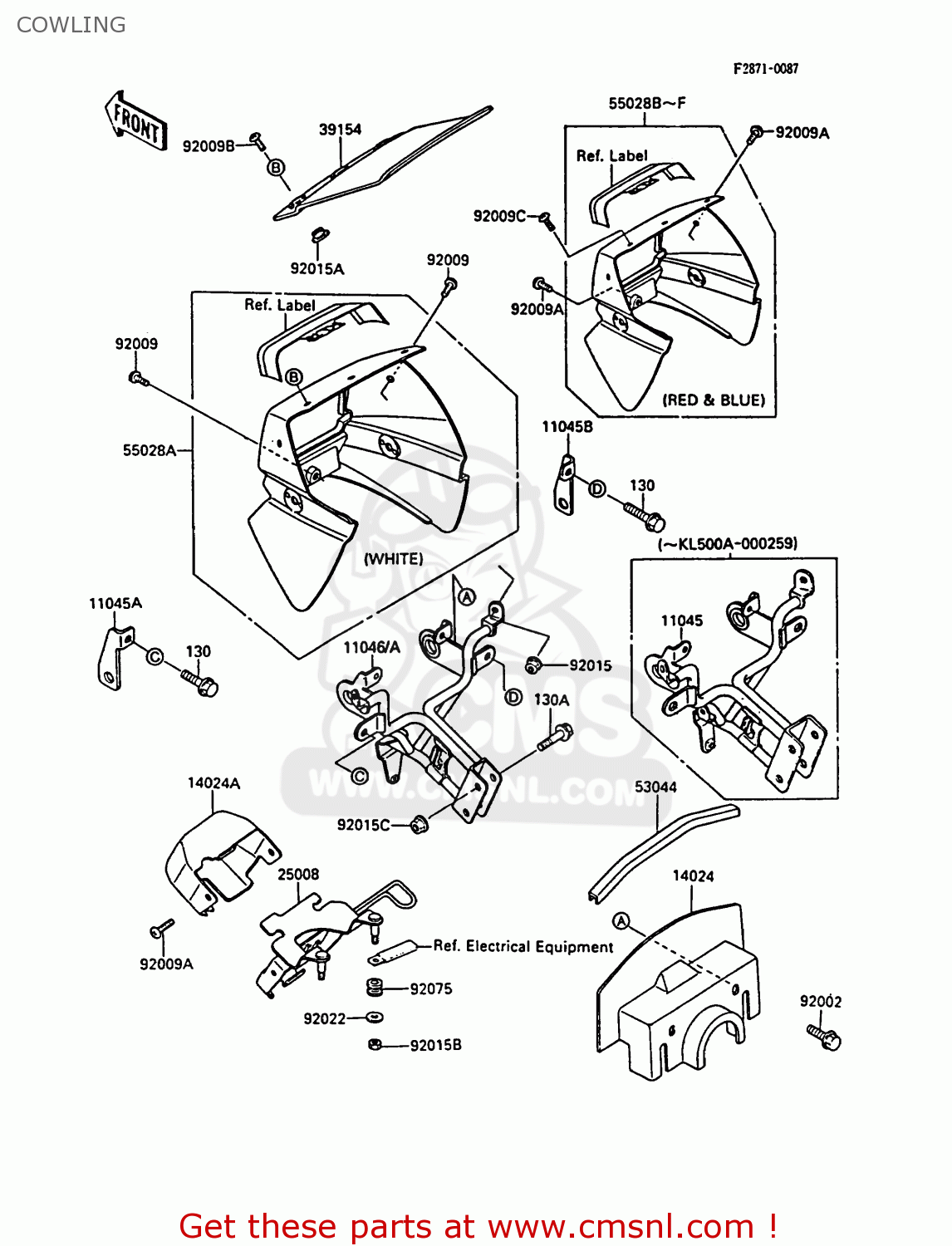

Cowling diagram KL500-A1 KLR500 1987 NORWAY AR
COWLING KL500-A1 KLR500 1987 NORWAY AR
×
prices are in EUR
ref
part #
description
quantity
130
130C0612
ref: 130
BOLT-FLANGED,6X12
€ 1.50
130A
130G0825
ref: 130A
BOLT,FLANGED,8X25
€ 0.50
11045
110451623
ref: 11045
BRACKET,COWLING
€ 67.00
11045A
110451798
ref: 11045A
BRACKET,SIGNAL LAMP,L
€ 7.00
11045B
110451799
ref: 11045B
BRACKET,SIGNAL LAMP,R
€ 6.50
11046A
110461036
ref: 11046A
BRACKET,COWLING
€ 124.00
14024
140241366
ref: 14024
COVER,COWLING,INNER
€ 36.00
14024A
140241471
ref: 14024A
COVER,HARNESS COUPLER
€ 27.00
25008
250081137
ref: 25008
BRACKET-METER
€ 38.50
39154
391541065
ref: 39154
WINDSHIELD
€ 76.50
53044
530441106
ref: 53044
TRIM,COWLING COVER
€ 22.50
55028A
5502853136F
ref: 55028A
COWLING,UPP,P.WHITE
€ 101.50
55028B
5502853146B
ref: 55028B
AR
COWLING,UPP,S.RED
€ 111.00
55028C
5502853156K
ref: 55028C
AR
COWLING,UPP,B.BLUE
€ 96.00
92002
920021884
ref: 92002
BOLT,6X12
€ 2.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92009A
920091308
ref: 92009A
SCREW,6X14
€ 2.00
92009B
920091336
ref: 92009B
SCREW,TAPPING
€ 2.50
92009C
920091383
ref: 92009C
SCREW,5X14
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151343
ref: 92015A
NUT,5MM,COWLING
€ 3.00
92015B
920151391
ref: 92015B
NUT,6MM
€ 2.00
92015C
920151406
ref: 92015C
NUT,8MM
€ 3.00
92022
920221557
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92075
92075024
ref: 92075
DAMPER
€ 2.50
