TAILLIGHT(S)

KL250H1 SUPER SHERPA 1997 GREECE

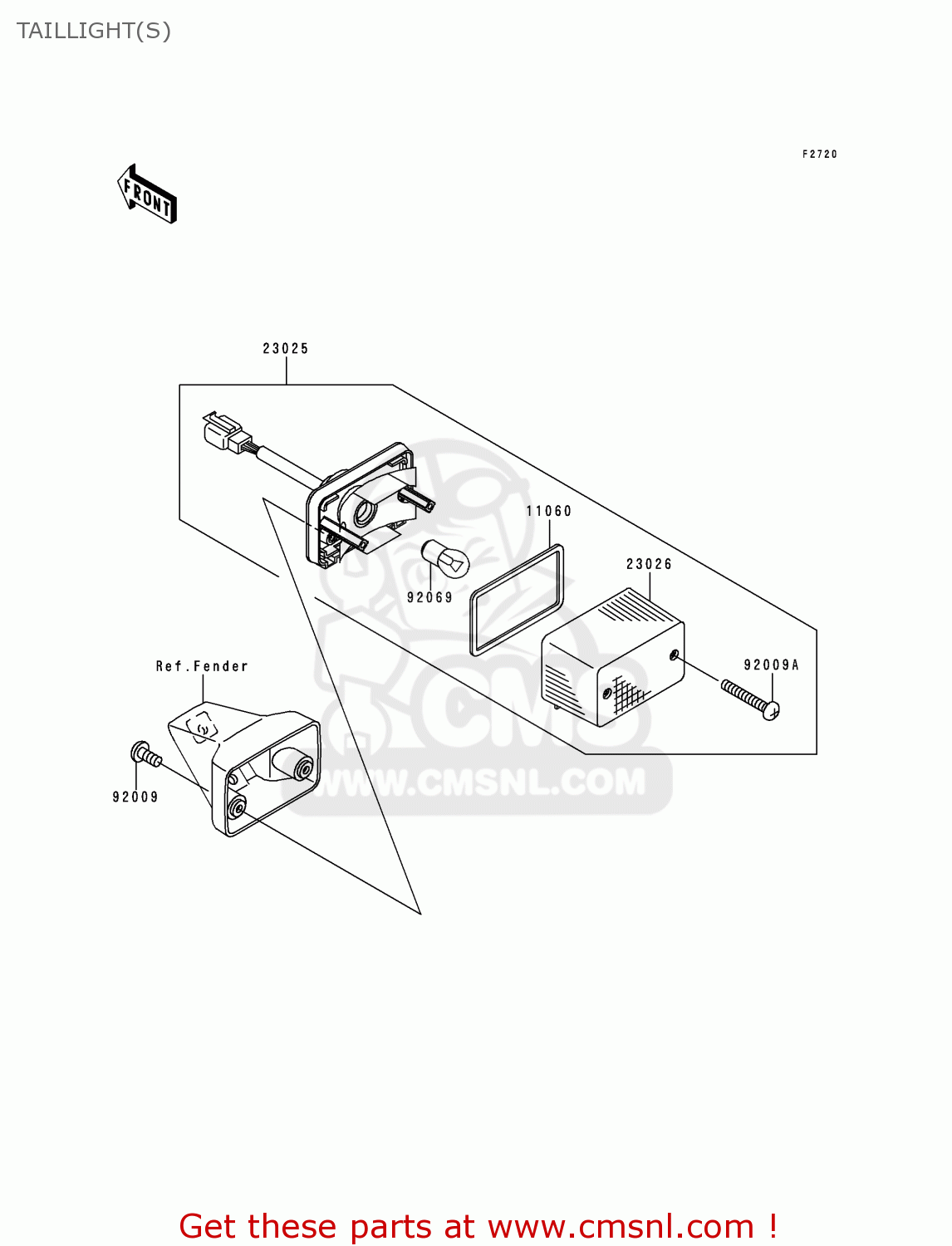

Taillight(s) diagram KL250H1 SUPER SHERPA 1997 GREECE

TAILLIGHT(S) KL250H1 SUPER SHERPA 1997 GREECE

TAILLIGHT(S) KL250H1 SUPER SHERPA 1997 GREECE

prices are in EUR

ref

part #

description

quantity

11060

110601774
ref: 11060

GASKET,TAIL LAMP LENS (NAS)

€ 3.50

23025

230251265
ref: 23025

LAMP-TAIL

€ 92.50

23026

230261208
ref: 23026

LENS,TAIL LAMP

€ 24.50

92009

920091182
ref: 92009

SCREW,5X12,BLACK

€ 1.50

92009A

920091647
ref: 92009A

SCREW,TAPPING,4X30

€ 2.50

92069

92069063
ref: 92069

BULB 12V 21/5W

€ 4.50
