CARBURETOR
KL250H1 SUPER SHERPA 1997 GREECE

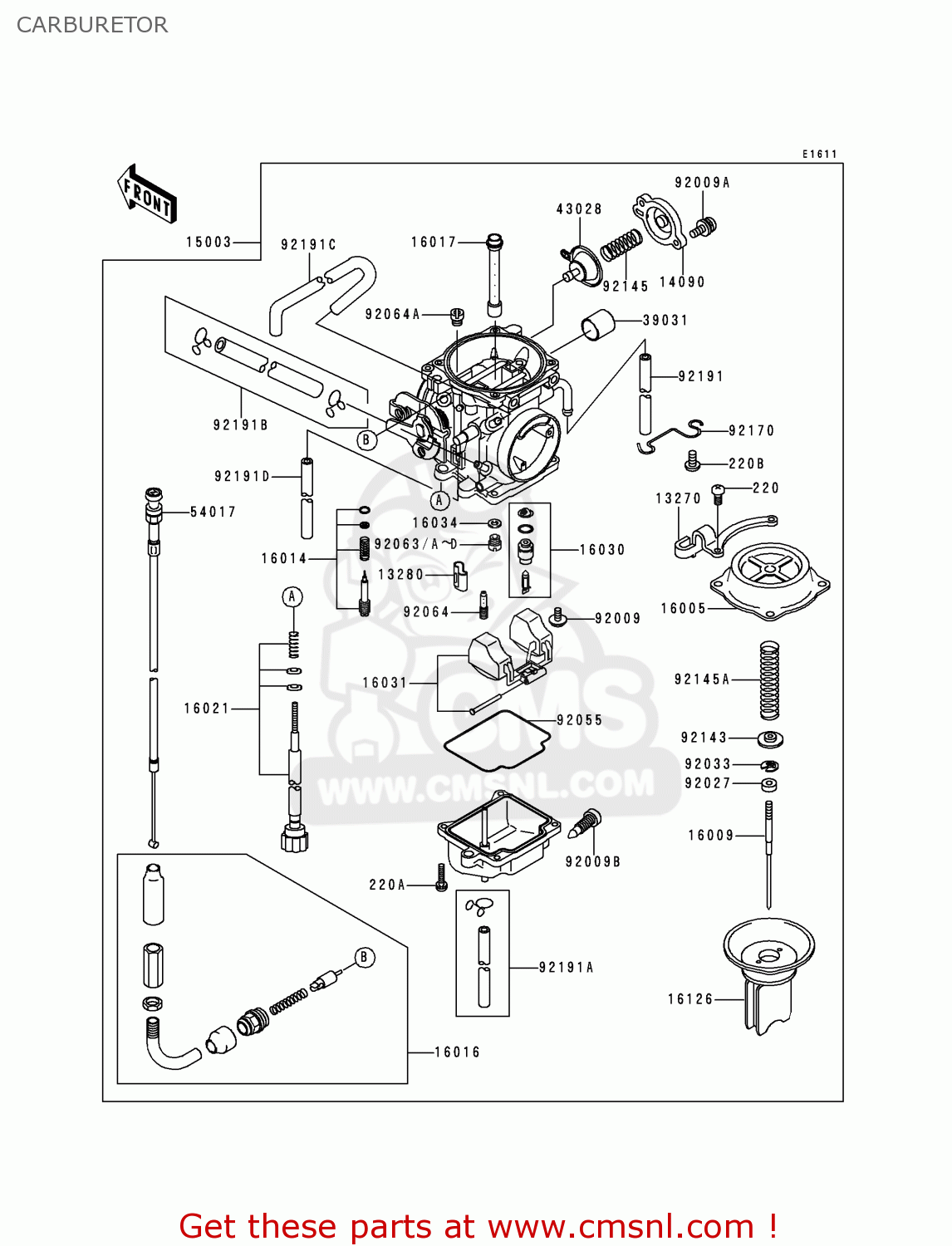

Carburetor diagram KL250H1 SUPER SHERPA 1997 GREECE
CARBURETOR KL250H1 SUPER SHERPA 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
13270
132701907
ref: 13270
PLATE,CHAMBER TOP
€ 46.00
13280
132801077
ref: 13280
HOLDER
€ 3.00
14090
140901873
ref: 14090
COVER,AIR CUT VALVE
€ 42.50
15003
150031423
ref: 15003
CARBURETOR-ASSY
€ 536.50
16005
160051080
ref: 16005
TOP-CHAMBER,MIXING
€ 29.50
16009
160091954
ref: 16009
NEEDLE-JET,5EI19
€ 28.50
16014
160141095
ref: 16014
SCREW-PILOT AIR
€ 14.50
16016
160161103
ref: 16016
PLUNGER,STARTER
€ 45.50
16017
160171390
ref: 16017
JET-NEEDLE,P-4
€ 38.50
16021
160211215
ref: 16021
SCREW-THROTTLE STOP
€ 32.50
16030
160301085
ref: 16030
VALVE-FLOAT
€ 37.50
16031
160311091
ref: 16031
FLOAT
€ 40.50
16034
16034001
ref: 16034
WASHER-MAIN JET
€ 2.50
16126
161261347
ref: 16126
VALVE,VACUUM
€ 156.50
39031
390311007
ref: 39031
CAP-END,CARBURETOR
€ 7.50
43028
430281026
ref: 43028
DIAPHGRAM,COASTING RC
€ 124.50
54017
540171196
ref: 54017
CABLE-STARTER
€ 27.50
92009
920091810
ref: 92009
SCREW
€ 2.50
92009A
920091811
ref: 92009A
SCREW
€ 2.50
92009B
920091812
ref: 92009B
SCREW,DRAIN
€ 8.00
92027
920271103
ref: 92027
RING,JET NEEDLE
€ 4.50
92033
920331290
ref: 92033
RING-SNAP
€ 3.00
92055
920551575
ref: 92055
RING-O,FLOAT CHAMBER
€ 13.00
92063
920631100
ref: 92063
JET-MAIN,#A127.5
€ 9.50
92063A
920631101
ref: 92063A
JET-MAIN,#A122.5
€ 9.50
92063B
920631102
ref: 92063B
JET-MAIN,#A125
€ 9.50
92063C
920631106
ref: 92063C
JET-MAIN,#A120
€ 11.50
92063D
920631107
ref: 92063D
JET-MAIN,#A117.5
€ 11.50
92064
920641183
ref: 92064
JET-PILOT,#A17.5
€ 12.00
92064A
920641184
ref: 92064A
JET-PILOT,#80
€ 13.50
92143
921431986
ref: 92143
COLLAR
€ 6.50
92145
921451103
ref: 92145
SPRING,AIR CUT VALVE
€ 9.00
92145A
921451104
ref: 92145A
SPRING,VACUUM VALVE
€ 16.00
92170
921701816
ref: 92170
CLAMP
€ 8.00
92191
921911199
ref: 92191
TUBE,5X8X400
€ 14.50
92191A
921911200
ref: 92191A
TUBE,3X7X350
€ 7.50
220
220D0410
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220D0412
ref: 220A
SCREW-PAN-CROSS,4X12
€ 0.50
220B
220D0510
ref: 220B
SCREW-PAN-CROS
€ 0.50
92191B
921911201
ref: 92191B
TUBE,5.3X10.5X175
€ 11.00
92191C
921911202
ref: 92191C
TUBE,L=290
€ 14.50
92191D
921911203
ref: 92191D
TUBE,3X5X350
€ 8.50
