CAMSHAFT(S)/TENSIONER
KL250H1 SUPER SHERPA 1997 GREECE

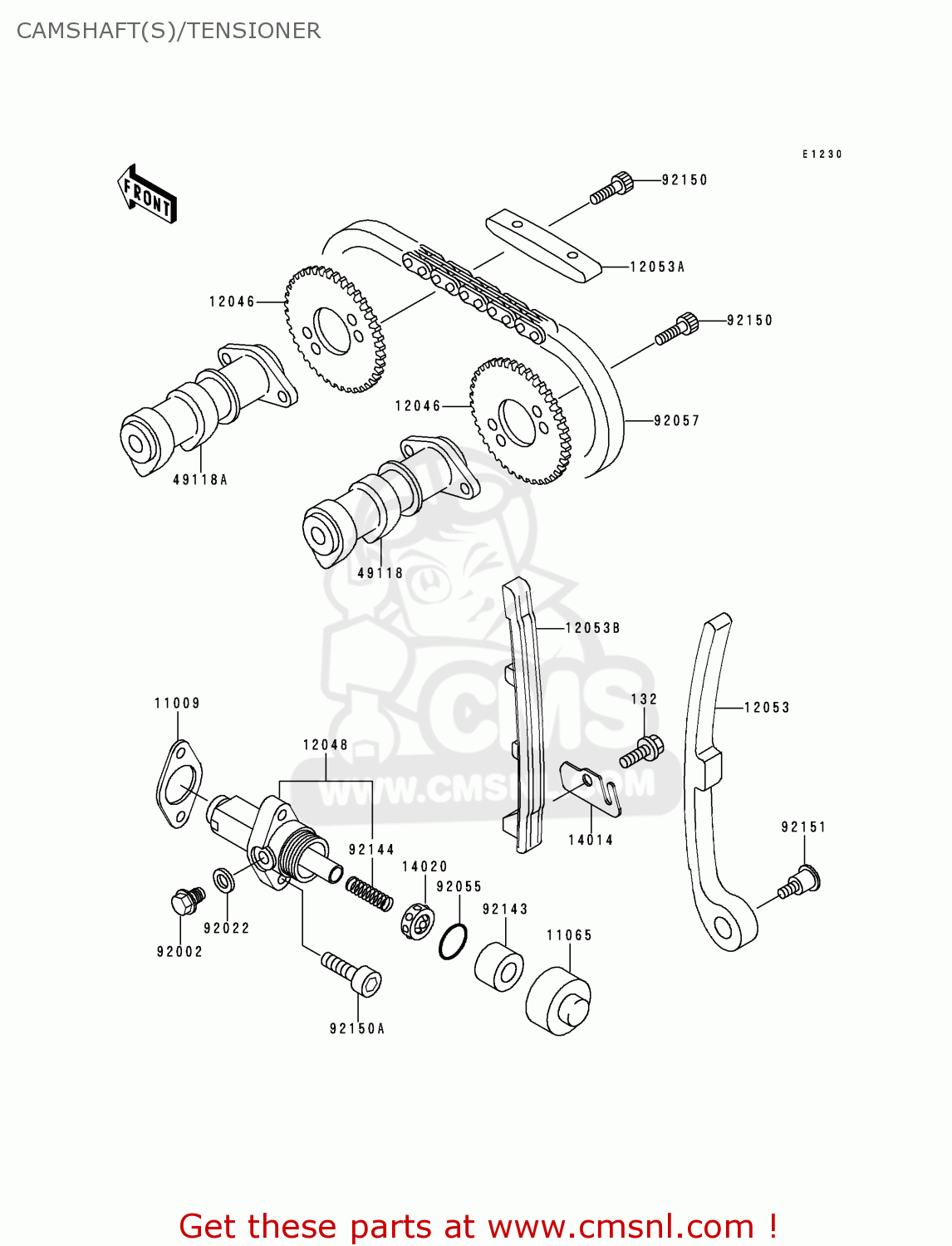

Camshaft(s)/tensioner diagram KL250H1 SUPER SHERPA 1997 GREECE
CAMSHAFT(S)/TENSIONER KL250H1 SUPER SHERPA 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
11009
110091858
ref: 11009
GASKET,TENSIONER (NAS)
€ 3.00
11065
110651055
ref: 11065
CAP
€ 22.00
12046
120461186
ref: 12046
SPROCKET
€ 52.00
12048
120481156
ref: 12048
TENSIONER-ASSY
€ 96.00
12053
120531386
ref: 12053
GUIDE-CHAIN,RR
€ 60.00
12053A
120531390
ref: 12053A
GUIDE-CHAIN,UPP
€ 37.50
12053B
120531401
ref: 12053B
GUIDE-CHAIN,FR
€ 37.50
14014
140141135
ref: 14014
PLATE-POSITION
€ 2.50
14020
140201054
ref: 14020
RETAINER,TENSIONER
€ 14.50
49118
491181162
ref: 49118
CAMSHAFT-COMP,INTAKE
€ 314.50
49118A
491181163
ref: 49118A
CAMSHAFT-COMP,EXHAUST
€ 329.50
92002
920021356
ref: 92002
BOLT
€ 4.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92055
920551555
ref: 92055
RING-O,TENSIONER
€ 1.50
92057
920571440
ref: 92057
CHAIN,CAM,92RH2010
€ 24.50
92143
921431836
ref: 92143
COLLAR,TENSIONER
€ 11.50
92144
921441921
ref: 92144
SPRING,TENSIONER
€ 5.50
92150
921501650
ref: 92150
BOLT
€ 2.50
92150A
921501795
ref: 92150A
BOLT,SOCKET,6X20
€ 3.50
92151
921511154
ref: 92151
BOLT
€ 17.00
