CYLINDER HEAD

KL250H1 SUPER SHERPA 1997 GREECE

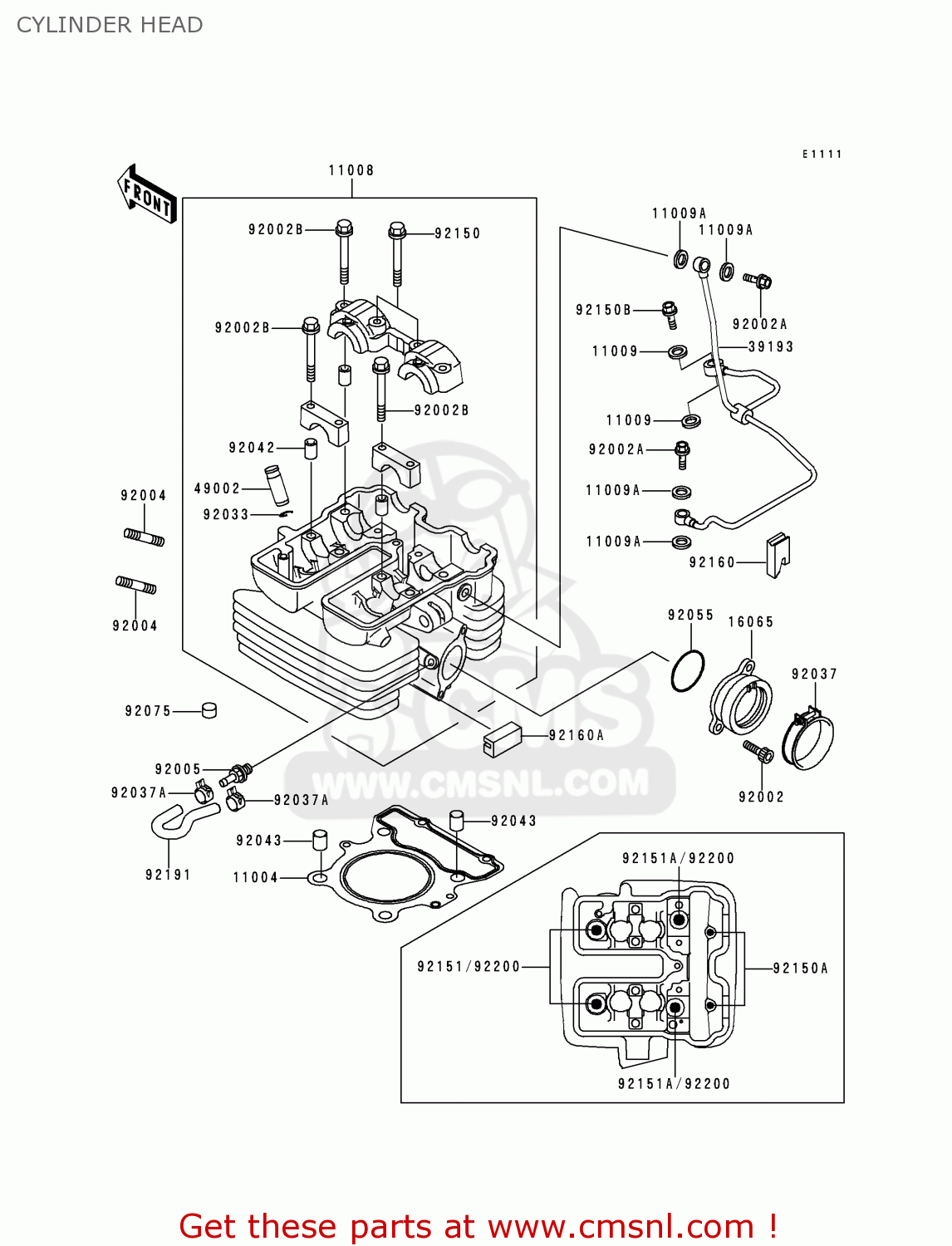

Cylinder head diagram KL250H1 SUPER SHERPA 1997 GREECE

CYLINDER HEAD KL250H1 SUPER SHERPA 1997 GREECE
CYLINDER HEAD KL250H1 SUPER SHERPA 1997 GREECE
CYLINDER HEAD KL250H1 SUPER SHERPA 1997 GREECE
prices are in EUR
ref
part #
description
quantity
11004
110041328
ref: 11004
GASKET-HEAD (NAS)
110041328
€ 23.50
11008
110081326
ref: 11008
HEAD-COMP-CYLINDER
€ 670.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
16065
160651342
ref: 16065
HOLDER-CARBURETOR
€ 37.00
39193
391931032
ref: 39193
PIPE-OIL
€ 89.50
49002
490021126
ref: 49002
GUIDE-VALVE
490021126
€ 24.50
92002
920021143
ref: 92002
BOLT,6X16
920021143
€ 2.50
92002A
920021618
ref: 92002A
BOLT,BANJO,8X20
920021618
€ 7.00
92002B
920021756
ref: 92002B
BOLT,6X40
920021756
€ 3.00
92004
920041217
ref: 92004
STUD
920041217
€ 4.00
92005
920051337
ref: 92005
FITTING
920051337
€ 17.50
92033
920331247
ref: 92033
RING-SNAP
920331247
€ 2.00
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
920371304
€ 7.00
92037A
920371601
ref: 92037A
CLAMP
920371601
€ 9.00
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92043
920434009
ref: 92043
PIN,10.1X12X14
920434009
€ 4.00
92055
92055520
ref: 92055
O RING
92055520
€ 3.50
92075
92075182
ref: 92075
DAMPER
92075182
€ 2.50
92150
921501083
ref: 92150
BOLT,6X35
921501083
€ 2.50
92150A
921501552
ref: 92150A
BOLT,6X135
921501552
€ 4.50
92150B
921501641
ref: 92150B
BOLT,BANJO,10X23
921501641
€ 9.50
92151
921511152
ref: 92151
BOLT,10X158
921511152
€ 10.00
92151A
921511263
ref: 92151A
BOLT
€ 17.00
92160
921601816
ref: 92160
DAMPER
€ 2.50
92160A
921601879
ref: 92160A
DAMPER
€ 3.00
92191
921911158
ref: 92191
TUBE
€ 5.50
92200
922001339
ref: 92200
WASHER,10.5X19X2.3
922001339
€ 2.50
