REAR MASTER CYLINDER
KL250H1 SUPER SHERPA 1997 GREECE

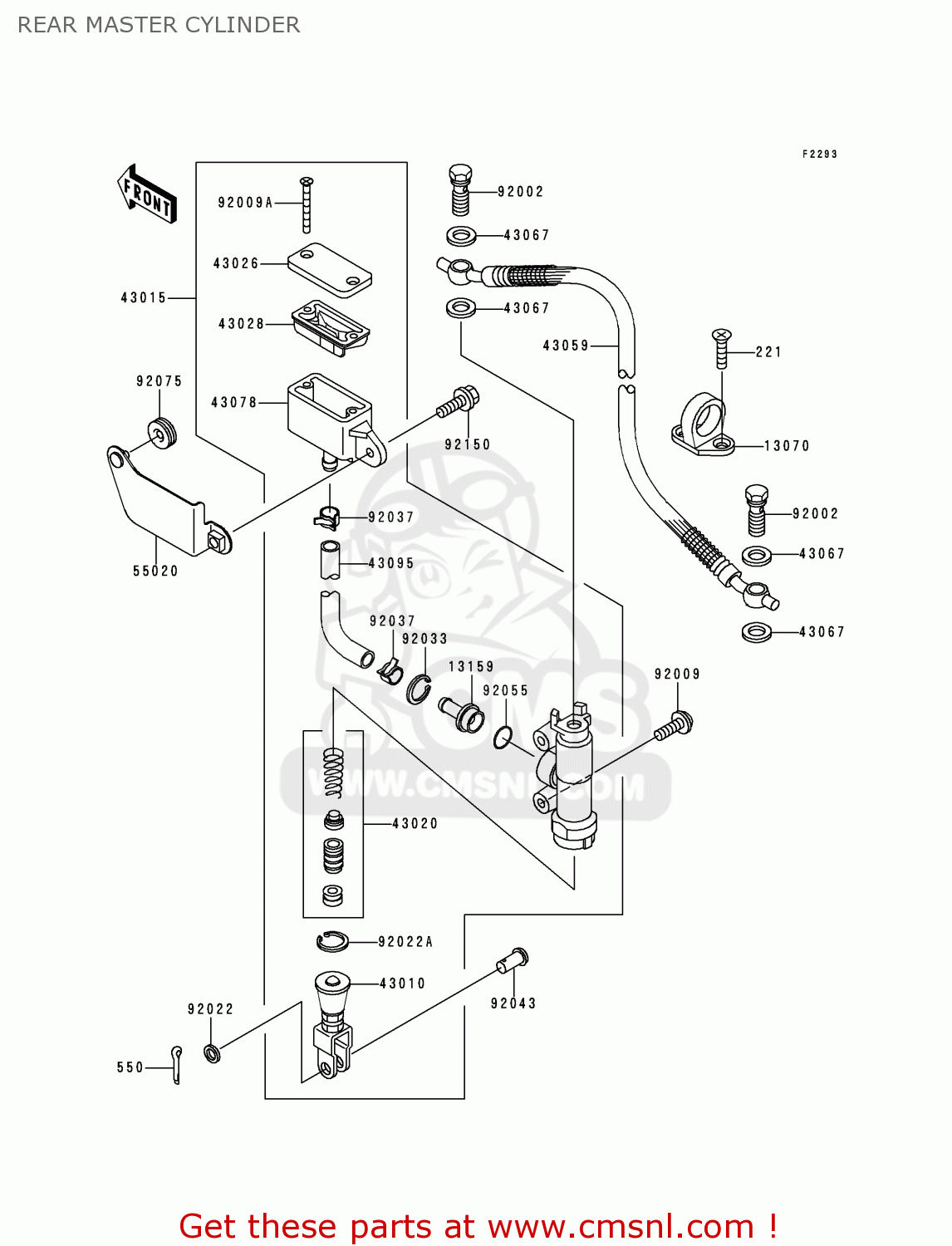

Rear master cylinder diagram KL250H1 SUPER SHERPA 1997 GREECE
REAR MASTER CYLINDER KL250H1 SUPER SHERPA 1997 GREECE
×
prices are in EUR
ref
part #
description
quantity
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
13070
130701322
ref: 13070
GUIDE,HOSE
€ 4.00
13159
131591065
ref: 13159
CONNECTOR
€ 5.00
43010
430101068
ref: 43010
ROD-ASSY-BRAKE
€ 38.50
43015
430151599
ref: 43015
CYLINDER-ASSY-MASTER,
€ 274.50
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
€ 47.50
43026
430261075
ref: 43026
CAP-BRAKE
€ 9.50
43028
430281067
ref: 43028
DIAPHRAGM
€ 12.50
43059
430591993
ref: 43059
HOSE-BRAKE,RR
€ 98.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43078
430781122
ref: 43078
RESERVOIR
€ 21.00
43095
430951065
ref: 43095
HOSE-BRAKE,RR MASTER
€ 6.50
55020
550201610
ref: 55020
GUARD,RR MASTER RESER
€ 7.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
€ 3.50
92009
920091287
ref: 92009
SCREW,6X14
€ 1.50
92009A
920091596
ref: 92009A
SCREW
€ 2.00
92022
920221028
ref: 92022
WASHER,8.5X13X1
€ 2.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371710
ref: 92037
CLAMP
€ 6.50
92043
920431039
ref: 92043
PIN
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
€ 3.00
92150
921501481
ref: 92150
BOLT,FLANGED,6X22
€ 2.50
