CYLINDER/PISTON(S)

KL250H1 SUPER SHERPA 1997 GREECE

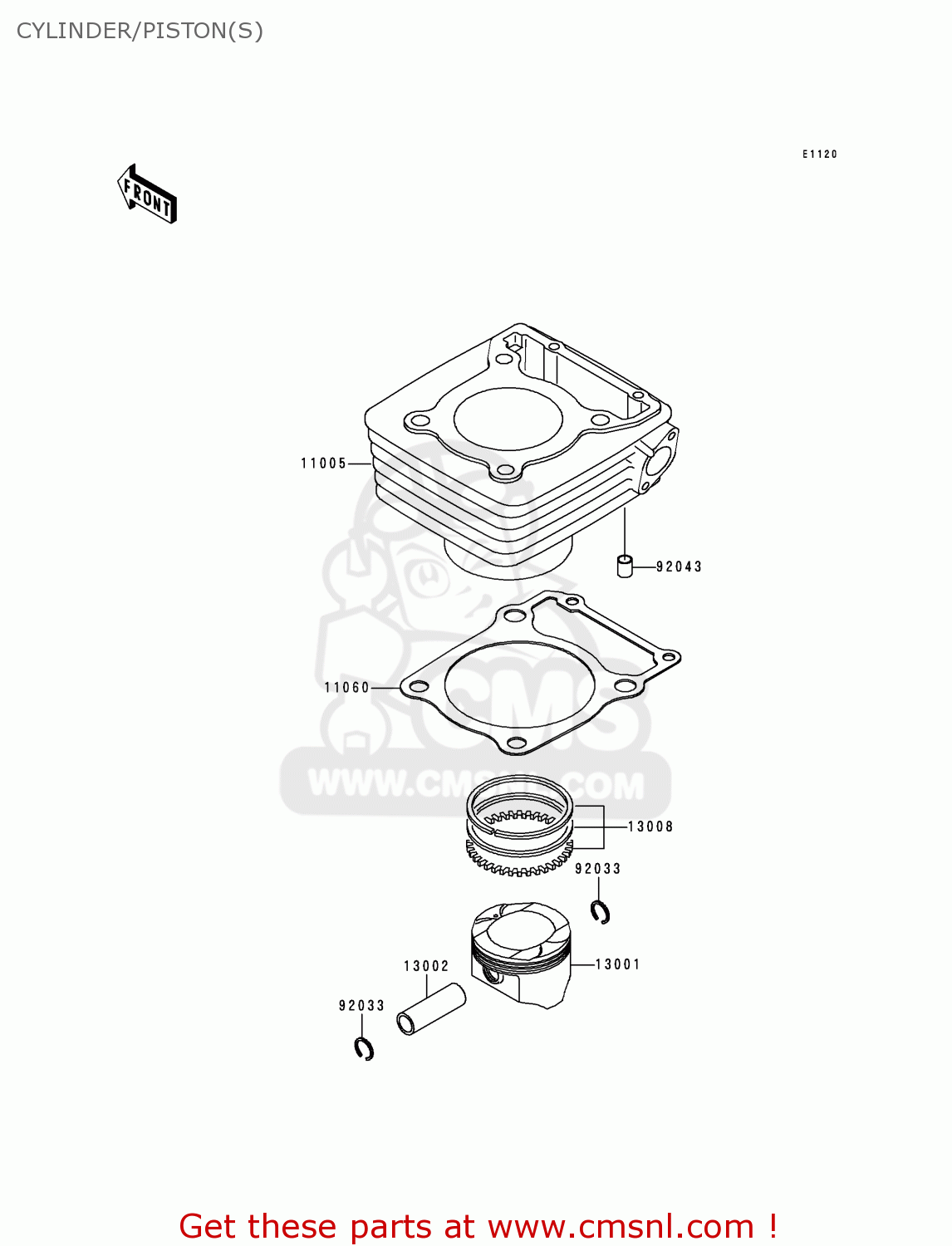

Cylinder/piston(s) diagram KL250H1 SUPER SHERPA 1997 GREECE

CYLINDER/PISTON(S) KL250H1 SUPER SHERPA 1997 GREECE

CYLINDER/PISTON(S) KL250H1 SUPER SHERPA 1997 GREECE

prices are in EUR

ref

part #

description

quantity

11005

110051860
ref: 11005

CYLINDER-ENGINE

€ 513.00

11060

110601740
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 8.00

13001

130011492
ref: 13001

PISTON-ENGINE

€ 96.50

13002

130021073
ref: 13002

PIN-PISTON

€ 19.50

13008

130081177
ref: 13008

RING-SET-PISTON

€ 45.50

92033

920331054
ref: 92033

CIRCLIP,PISTON PIN

€ 2.00

92043

920434009
ref: 92043

PIN,10.1X12X14

€ 4.00
