REAR MASTER CYLINDER

KL250G8 SUPER SHERPA 2004 CANADA

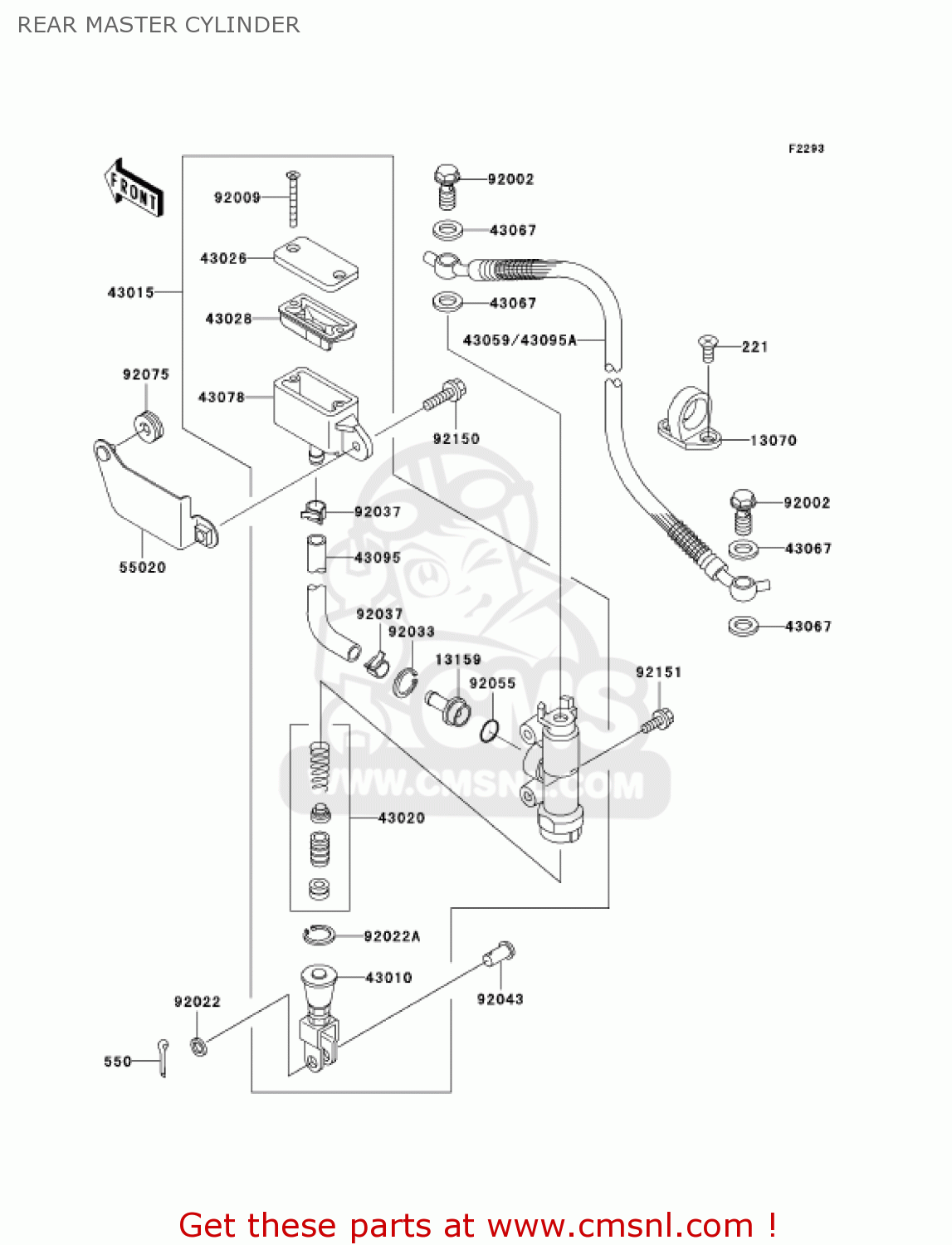

Rear master cylinder diagram KL250G8 SUPER SHERPA 2004 CANADA

REAR MASTER CYLINDER KL250G8 SUPER SHERPA 2004 CANADA
REAR MASTER CYLINDER KL250G8 SUPER SHERPA 2004 CANADA
REAR MASTER CYLINDER KL250G8 SUPER SHERPA 2004 CANADA
prices are in EUR
ref
part #
description
quantity
221
221B0610
ref: 221
SCREW-CNTSNK HD,6X10
221B0610
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13070
130701322
ref: 13070
GUIDE,HOSE
€ 4.00
13159
131591065
ref: 13159
CONNECTOR
€ 5.00
43010
430101068
ref: 43010
ROD-ASSY-BRAKE
430101068
€ 38.50
43015
430151707
ref: 43015
CYLINDER-ASSY-MASTER,
€ 274.50
43020
430201094
ref: 43020
PISTON-COMP, BRAKE
430201094
€ 47.50
43026
430261075
ref: 43026
CAP-BRAKE
430261075
€ 9.50
43028
430281067
ref: 43028
DIAPHRAGM
430281067
€ 12.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781189
ref: 43078
RESERVOIR
430781189
€ 21.00
43095
430951065
ref: 43095
HOSE-BRAKE,RR MASTER
€ 6.50
43095A
430951329
ref: 43095A
HOSE-BRAKE,RR
€ 98.00
55020
550201610
ref: 55020
GUARD,RR MASTER RESER
€ 7.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92009
920091596
ref: 92009
SCREW
920091596
€ 2.00
92022
920221028
ref: 92022
WASHER,8.5X13X1
920221028
€ 2.50
92022A
920221601
ref: 92022A
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371710
ref: 92037
CLAMP
920371710
€ 6.50
92043
920430004
ref: 92043
PIN
920430004
€ 8.00
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92075
920751629
ref: 92075
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92150
921501481
ref: 92150
BOLT,FLANGED,6X22
921501481
€ 2.50
92151
921511423
ref: 92151
BOLT
921511423
€ 1.00
