FRONT MASTER CYLINDER
KL250G8 SUPER SHERPA 2004 CANADA

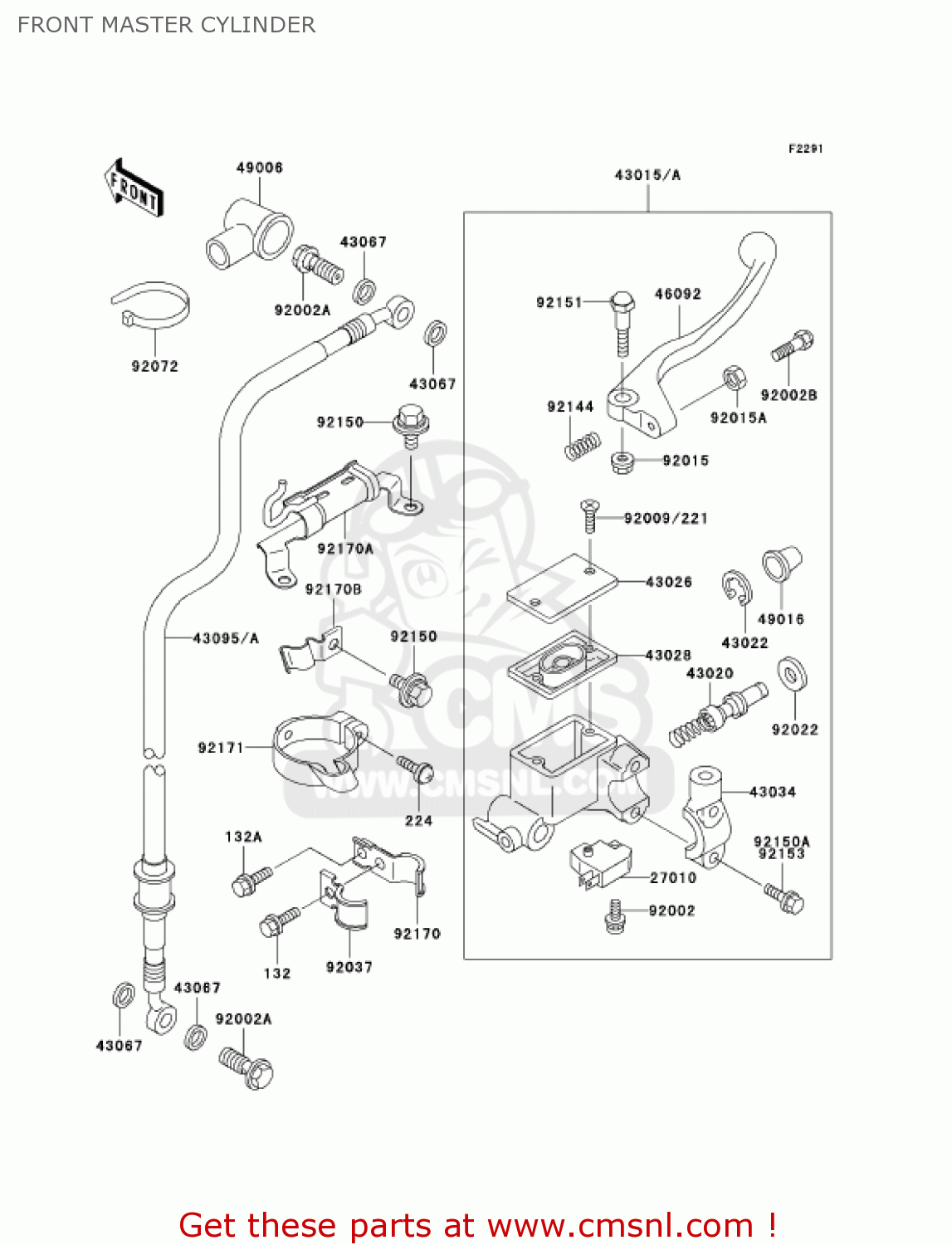

Front master cylinder diagram KL250G8 SUPER SHERPA 2004 CANADA
FRONT MASTER CYLINDER KL250G8 SUPER SHERPA 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0616
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
221
221R0412
ref: 221
SCREW-CSK-CROSS
€ 2.50
224
224B0520
ref: 224
SCREW-PAN-WP-CROS,5X2
€ 0.50
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
43015
430150021
ref: 43015
CYLINDER-ASSY-MASTER,
€ 269.00
43020
430201065
ref: 43020
PISTON-COMP-BRAKE
€ 38.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261081
ref: 43026
CAP-BRAKE
€ 18.00
43028
430281061
ref: 43028
DIAPHRAGM
€ 11.00
43034
430341144
ref: 43034
HOLDER-BRAKE,MASTER C
€ 14.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
€ 1.50
43095A
430951328
ref: 43095A
HOSE-BRAKE,FR
€ 75.50
46092
460921199
ref: 46092
LEVER-GRIP,FRONT BRAK
€ 12.00
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
92002
920021323
ref: 92002
BOLT
€ 2.50
92002A
920021888
ref: 92002A
BOLT,OIL,L=23
€ 3.50
92002B
920021893
ref: 92002B
BOLT,ADJUST
€ 5.00
92015
920151528
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92015A
920151642
ref: 92015A
NUT,ADJUST
€ 2.50
92022
920221814
ref: 92022
WASHER
€ 3.00
92037
920371898
ref: 92037
CLAMP,HOSE
€ 5.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92144
921441103
ref: 92144
SPRING,RETURN
€ 6.50
92150
921501435
ref: 92150
BOLT
€ 2.50
92151
921511215
ref: 92151
BOLT,LEVER SET
€ 4.50
92153
921530547
ref: 92153
BOLT
€ 2.50
92170
921701749
ref: 92170
CLAMP,BRAKE HOSE
€ 7.00
92170A
921701778
ref: 92170A
CLAMP,BRAKE HOSE
€ 14.00
92170B
921701781
ref: 92170B
CLAMP,BRAKE HOSE
€ 3.00
92171
921711079
ref: 92171
BRAKE HOSE CLAMP
€ 8.00
