OIL PUMP

KL250G8 SUPER SHERPA 2004 CANADA

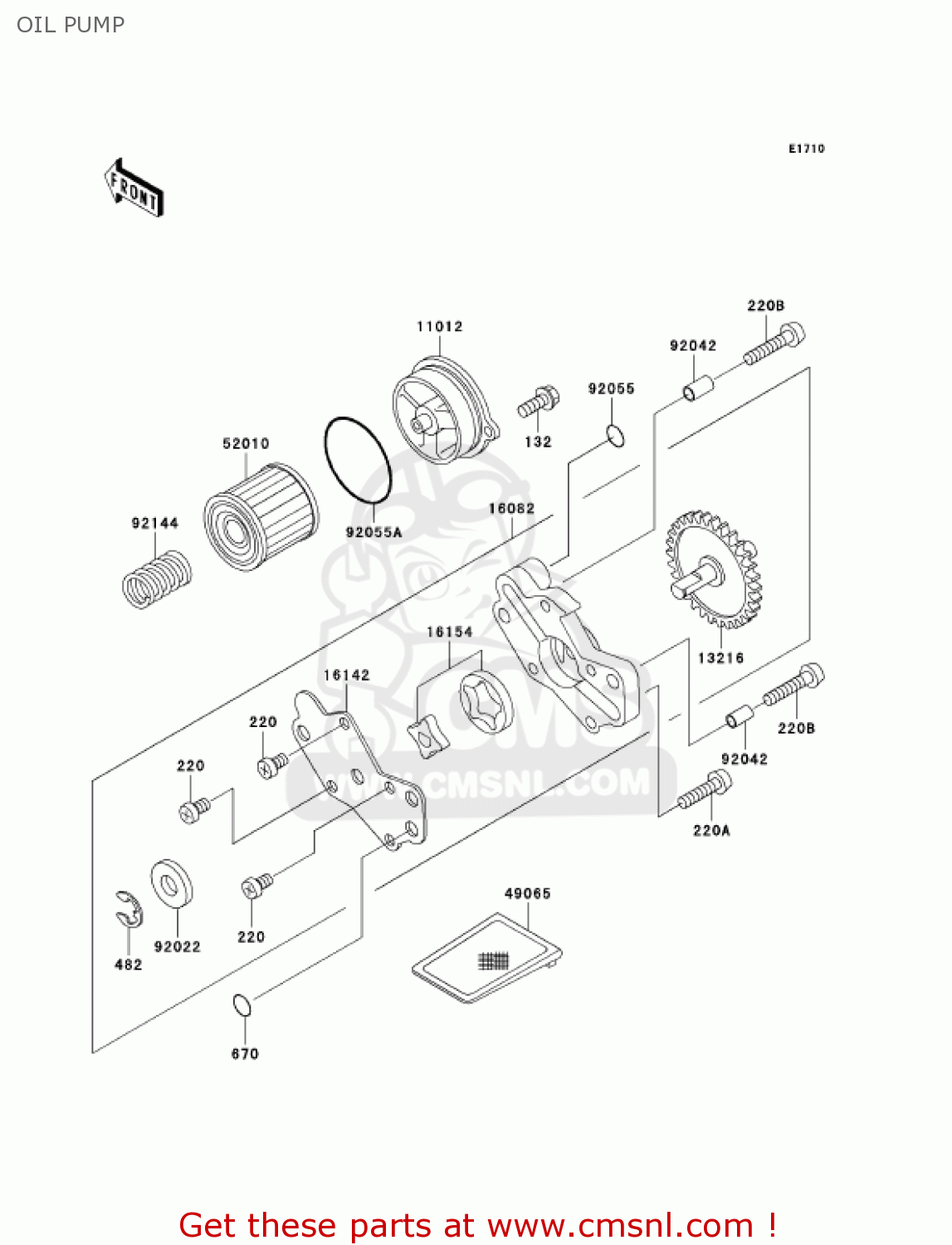

Oil pump diagram KL250G8 SUPER SHERPA 2004 CANADA

OIL PUMP KL250G8 SUPER SHERPA 2004 CANADA
OIL PUMP KL250G8 SUPER SHERPA 2004 CANADA
OIL PUMP KL250G8 SUPER SHERPA 2004 CANADA
prices are in EUR
ref
part #
description
quantity
132
132Y0616
ref: 132
BOLT-FLANGED-SMALL
132Y0616
€ 2.50
220
220B0610
ref: 220
SCREW-PAN HEAD,6X10
220B0610
€ 2.00
220A
220B0625
ref: 220A
SCREW-PAN HEAD,6X25
220B0625
€ 1.50
220B
220B0630
ref: 220B
SCREW-PAN HEAD,6X30
220B0630
€ 2.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
482J6000
€ 0.50
670
670B2010
ref: 670
O RING,10MM
670B2010
€ 1.00
11012
110121995
ref: 11012
CAP,OIL FILTER
€ 35.50
13216
132161162
ref: 13216
GEAR-COMP
€ 90.50
16082
160821151
ref: 16082
PUMP-ASSY-OIL
€ 156.00
16142
161421123
ref: 16142
COVER-PUMP
€ 30.50
16154
161541077
ref: 16154
ROTOR-PUMP
161541077
€ 26.50
49065
490651058
ref: 49065
FILTER-OIL
490651058
€ 9.00
52010
520101053
ref: 52010
ELEMENT-OIL FILTER
520101053
€ 8.00
92022
920221181
ref: 92022
WASHER,10.2X14.5X1.0
920221181
€ 2.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92055
92055074
ref: 92055
O RING
92055074
€ 5.50
92055A
920551577
ref: 92055A
RING-O
920551577
€ 3.00
92144
921441761
ref: 92144
SPRING
921441761
€ 3.00
