FRONT FORK
KL250G8 SUPER SHERPA 2004 CANADA

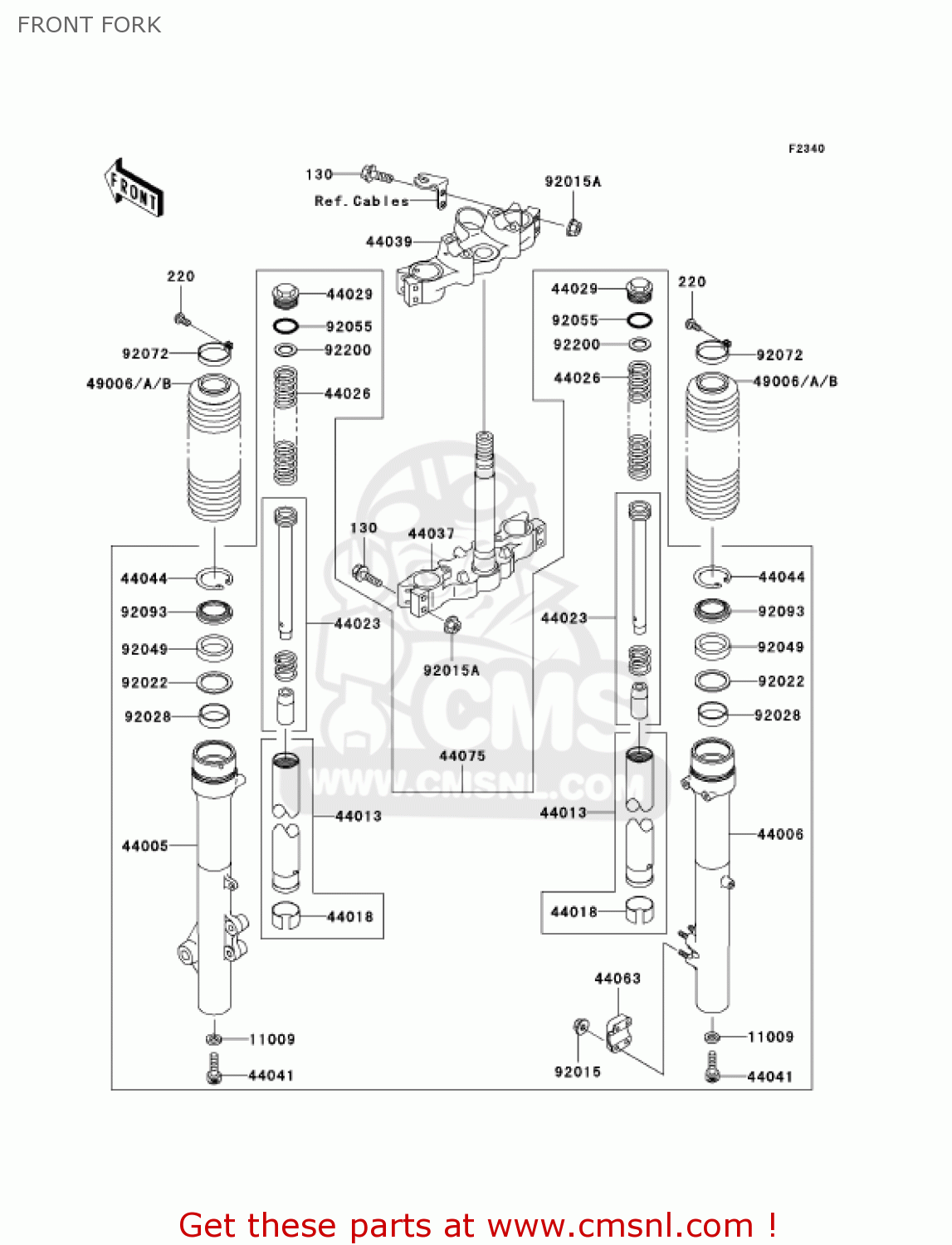

Front fork diagram KL250G8 SUPER SHERPA 2004 CANADA
FRONT FORK KL250G8 SUPER SHERPA 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0850
ref: 130
BOLT,8X50
€ 1.00
220
220B0416
ref: 220
SCREW-PAN-CROS
€ 2.00
11009
110091325
ref: 11009
GASKET,FORK, CYL BOLT (NAS)
€ 3.00
44005
440051403
ref: 44005
FORK OUTER PIPE,LH
€ 244.00
44006
440061401
ref: 44006
FORK OUTER PIPE,RH
€ 244.00
44013
440131468
ref: 44013
FORK INNER PIPE
€ 184.00
44018
440181058
ref: 44018
PISTON-FORK
€ 14.50
44023
440231141
ref: 44023
FORK CYLINDER SET
€ 104.50
44026
440261699
ref: 44026
FRONT FORK SPRING
€ 57.00
44029
440291160
ref: 44029
SEAT-FORK SPRING
€ 43.50
44037
440371357
ref: 44037
HOLDER-FORK UNDER
€ 302.00
44039
440391272
ref: 44039
HOLDER-FORK UPPER
€ 220.00
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
€ 4.50
44044
44044015
ref: 44044
CIRCLIP
€ 9.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
44075
440751102
ref: 44075
FORK DAMPER SET
€ 625.00
49006A
490061312SR
ref: 49006A
BOOT,FORK,S.GRAY
€ 0.00
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151485
ref: 92015A
NUT,FLANGED,8MM
€ 3.50
92022
920221275
ref: 92022
WASHER,FRONT FORK
€ 4.50
92028
920281656
ref: 92028
BUSHING
€ 11.00
92049
920491470
ref: 92049
SEAL-OIL,FORK OUTER T
€ 13.50
92055
920551051
ref: 92055
ORING,FORK TOP CAP
€ 3.50
92072
920721347
ref: 92072
BAND,BOOT
€ 7.00
92093
920931439
ref: 92093
SEAL,FORK OUTER TUBE
€ 11.50
92200
922001259
ref: 92200
WASHER
€ 4.00
