METER(S)
KL250G8 SUPER SHERPA 2004 CANADA

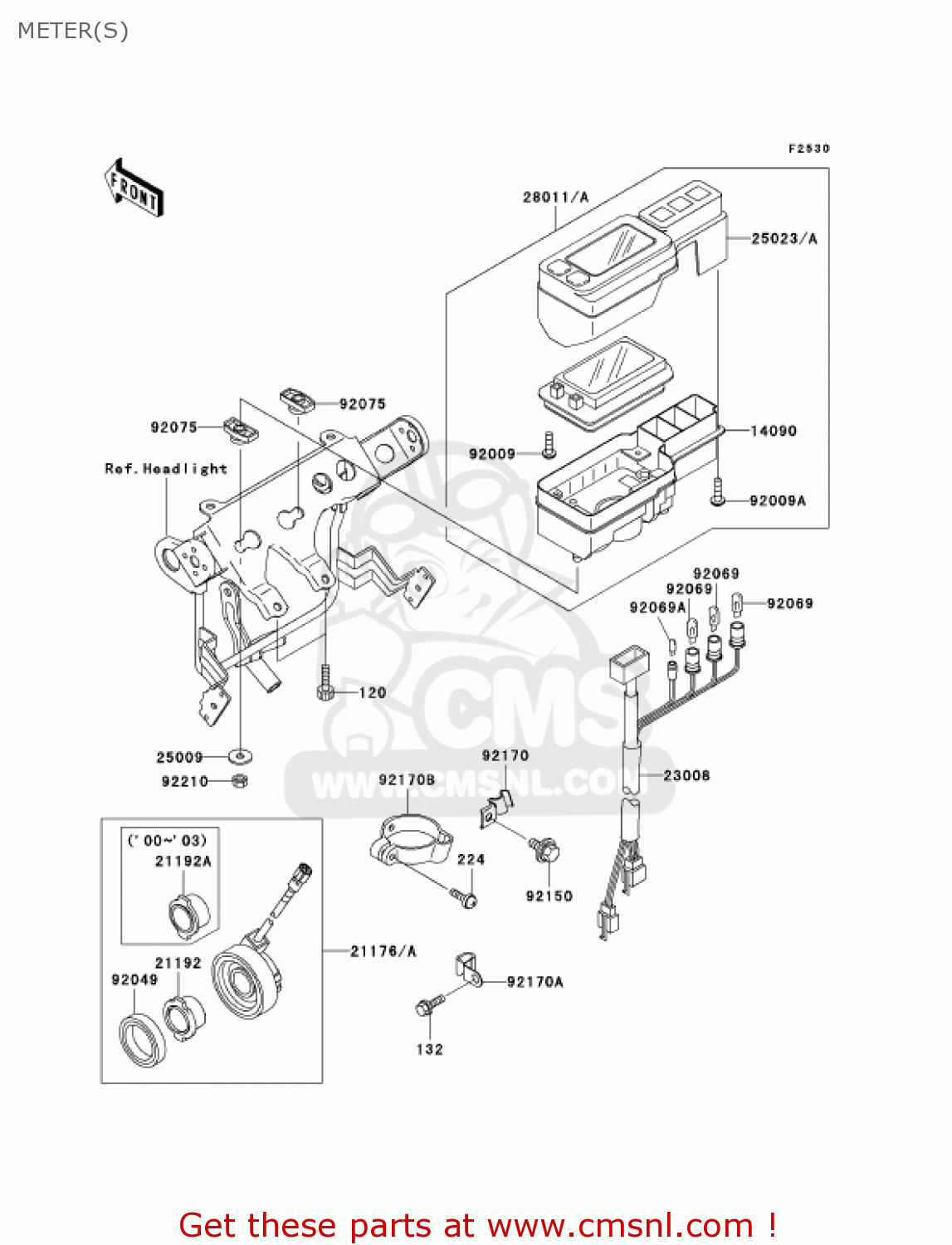

Meter(s) diagram KL250G8 SUPER SHERPA 2004 CANADA
METER(S) KL250G8 SUPER SHERPA 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0612
ref: 120
BOLT,SOCKET,6X12
€ 1.00
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
224
224B0520
ref: 224
SCREW-PAN-WP-CROS,5X2
€ 0.50
14090
140901903
ref: 14090
COVER,METER CASE,LWR
€ 61.50
21176
211760012
ref: 21176
SENSOR,SPEED
€ 381.00
21192
211920001
ref: 21192
MAGNET,SPEED SENSOR
€ 25.50
23008
230081579
ref: 23008
SOCKET-ASSY,METER
€ 61.50
25009
25009004
ref: 25009
WASHER,5.2X16X1.2T
€ 2.50
25023
250231245
ref: 25023
COVER-METER CASE,UPP
€ 0.00
28011
280111190
ref: 28011
METER,DIGITAL
€ 0.00
92009
920091028
ref: 92009
SCREW,COUNTERSUNK,3X8
€ 2.00
92009A
920091592
ref: 92009A
SCREW,TAPPING,3X14
€ 2.00
92049
920491172
ref: 92049
SEAL-OIL,METER GEAR C
€ 12.00
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
€ 2.50
92075
920751581
ref: 92075
DAMPER,METER BRACKET
€ 4.00
92150
921501435
ref: 92150
BOLT
€ 2.50
92170
921701782
ref: 92170
CLAMP,HARNESS
€ 3.00
92170A
921701804
ref: 92170A
CLAMP
€ 3.00
92170B
921701852
ref: 92170B
CLAMP,METER HARNESS
€ 10.00
92210
922101124
ref: 92210
NUT,5MM
€ 1.50
