FRAME FITTINGS
KL250G8 SUPER SHERPA 2004 CANADA

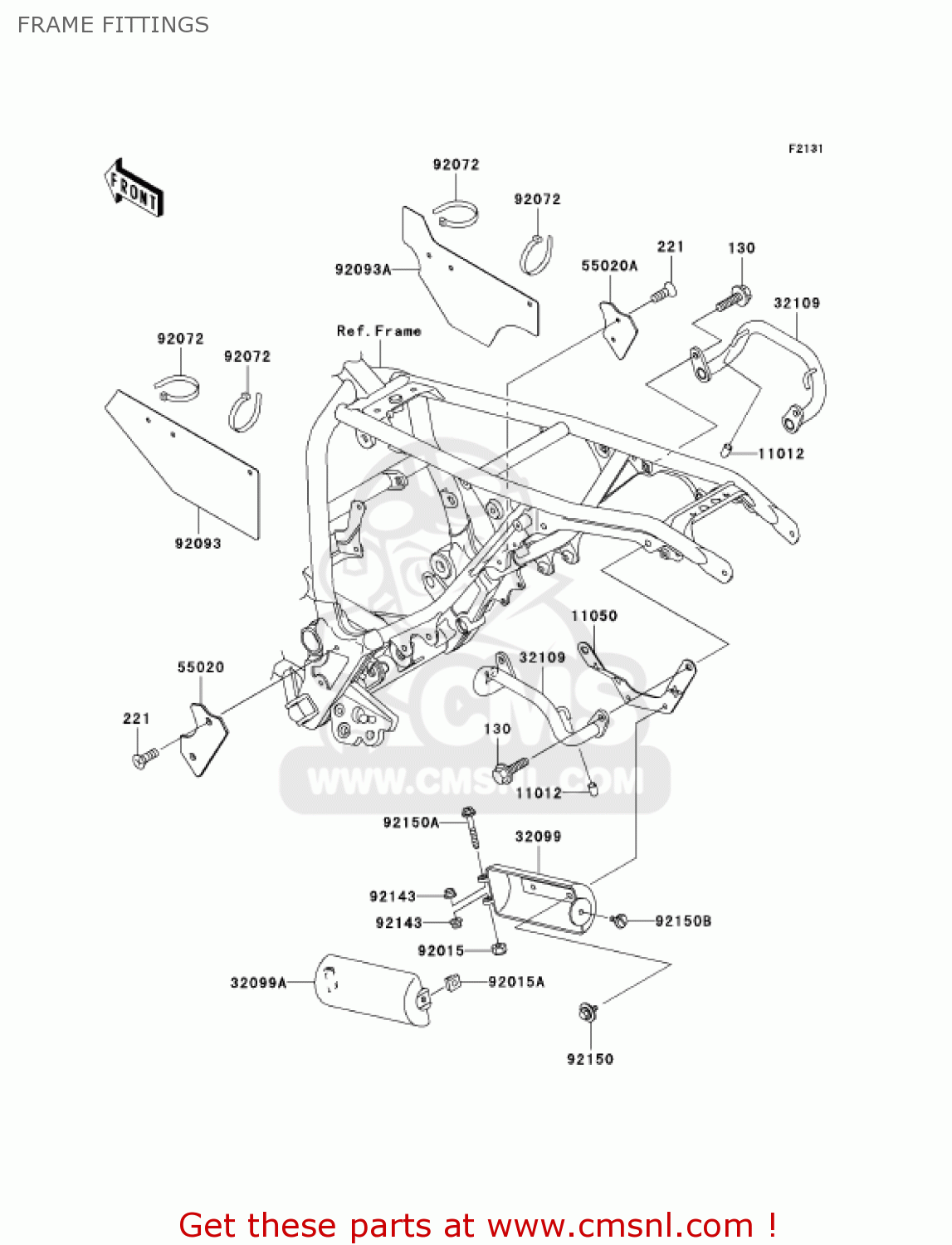

Frame fittings diagram KL250G8 SUPER SHERPA 2004 CANADA
FRAME FITTINGS KL250G8 SUPER SHERPA 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0816
ref: 130
BOLT-FLANGED,8X16
€ 0.50
221
221B0512
ref: 221
SCREW-CSK-CROSS,5X12
€ 0.50
11012
110121589
ref: 11012
CAP,BUNGEE CORD HOOK
€ 5.00
11050
110501445EZ
ref: 11050
BRACKET,TOOL CASE,C.G
€ 18.00
32099
320991184
ref: 32099
CASE,TOOL,BODY
€ 26.50
32099A
320991185
ref: 32099A
CASE,TOOL,CAP
€ 26.50
32109
321091260EZ
ref: 32109
GRIP-FRAME,C.GRAY
€ 34.50
55020
550201606
ref: 55020
GUARD,FOOT,LH
€ 23.50
55020A
550201607
ref: 55020A
GUARD,FOOT,RH
€ 21.00
92015
920151221
ref: 92015
NUT,LOCK,5MM
€ 4.00
92015A
920151602
ref: 92015A
NUT,6MM
€ 4.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92093
920931450
ref: 92093
SEAL
€ 12.00
92093A
920931451
ref: 92093A
SEAL
€ 12.00
92143
921431234
ref: 92143
COLLAR
€ 2.50
92150
921501392
ref: 92150
BOLT
€ 3.00
92150A
921501590
ref: 92150A
BOLT,ADJUST,5X45
€ 4.50
92150B
921503732
ref: 92150B
BOLT,6X14
€ 8.50
