TRANSMISSION
KL250D5 KLR250 1988 EUROPE UK FG GR

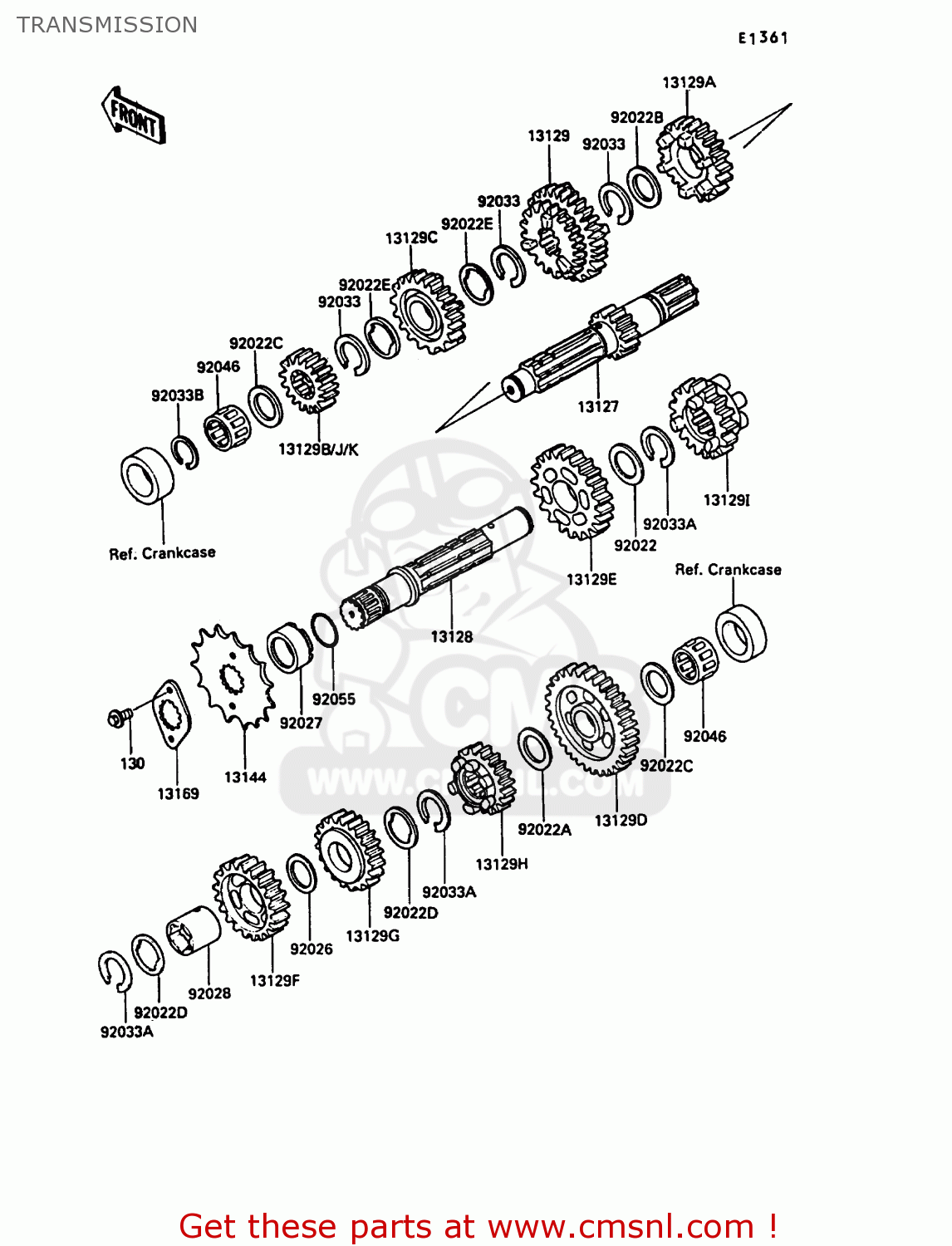

Transmission diagram KL250D5 KLR250 1988 EUROPE UK FG GR
TRANSMISSION KL250D5 KLR250 1988 EUROPE UK FG GR
×
prices are in EUR
ref
part #
description
quantity
130
130G0608
ref: 130
BOLT-FLANGED
€ 0.50
13127
131271121
ref: 13127
SHAFT-TRANSMISSION IN
€ 161.50
13128
131281139
ref: 13128
SHAFT-TRANSMISSION OU
€ 167.50
13129
131291602
ref: 13129
GEAR,INPUT 3RD&4TH,18
€ 124.00
13129A
131291603
ref: 13129A
GEAR,INPUT 5TH,20T
€ 107.00
13129C
131291647
ref: 13129C
GEAR,INPUT TOP,21T
€ 59.00
13129D
131291648
ref: 13129D
GEAR-OUTPUT LOW,30T
€ 119.50
13129E
131291649
ref: 13129E
GEAR-OUTPUT 2ND,30T
€ 106.50
13129F
131291650
ref: 13129F
GEAR,OUTPUT 3RD,27T
€ 106.50
13129G
131291651
ref: 13129G
GEAR,OUTPUT 4TH,25T
€ 107.00
13129H
131291652
ref: 13129H
GEAR,OUTPUT 5TH,21T
€ 107.00
13129I
131291653
ref: 13129I
GEAR,OUTPUT TOP,19T
€ 95.50
13129J
131291783
ref: 13129J
GEAR,INPUT 2ND,15T
€ 107.00
13144
131441103
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.00
13169
131691109
ref: 13169
PLATE,ENGINE SPROCKET
€ 5.50
92022
92022159
ref: 92022
WASHER-THRUST,25MM
€ 5.50
92022A
920221614
ref: 92022A
WASHER,17.3X25X0.5
€ 2.50
92022B
92022198
ref: 92022B
WASHER-PLAIN
€ 3.50
92022C
92022255
ref: 92022C
WASHER
€ 5.50
92022D
92024038
ref: 92022D
WASHER-LOCK
€ 4.00
92022E
92024039
ref: 92022E
WASHER-LOCK
€ 4.00
92026
92026079
ref: 92026
WASHER,30X38X1
€ 6.00
92027
920271800
ref: 92027
COLLAR
€ 19.50
92028
920281016
ref: 92028
BUSHING,OUTPUT SHAFT
€ 21.00
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92033A
92033026
ref: 92033A
CIRCLIP
€ 6.00
92033B
92033032
ref: 92033B
CIRCLIP
€ 3.00
92046
920461156
ref: 92046
BEARING-NEEDLE,K17X25
€ 26.00
92055
920551293
ref: 92055
RING-O, 21.5MM
€ 3.00
